6.5 DESCRIPTION OF BASKET CONTROLS

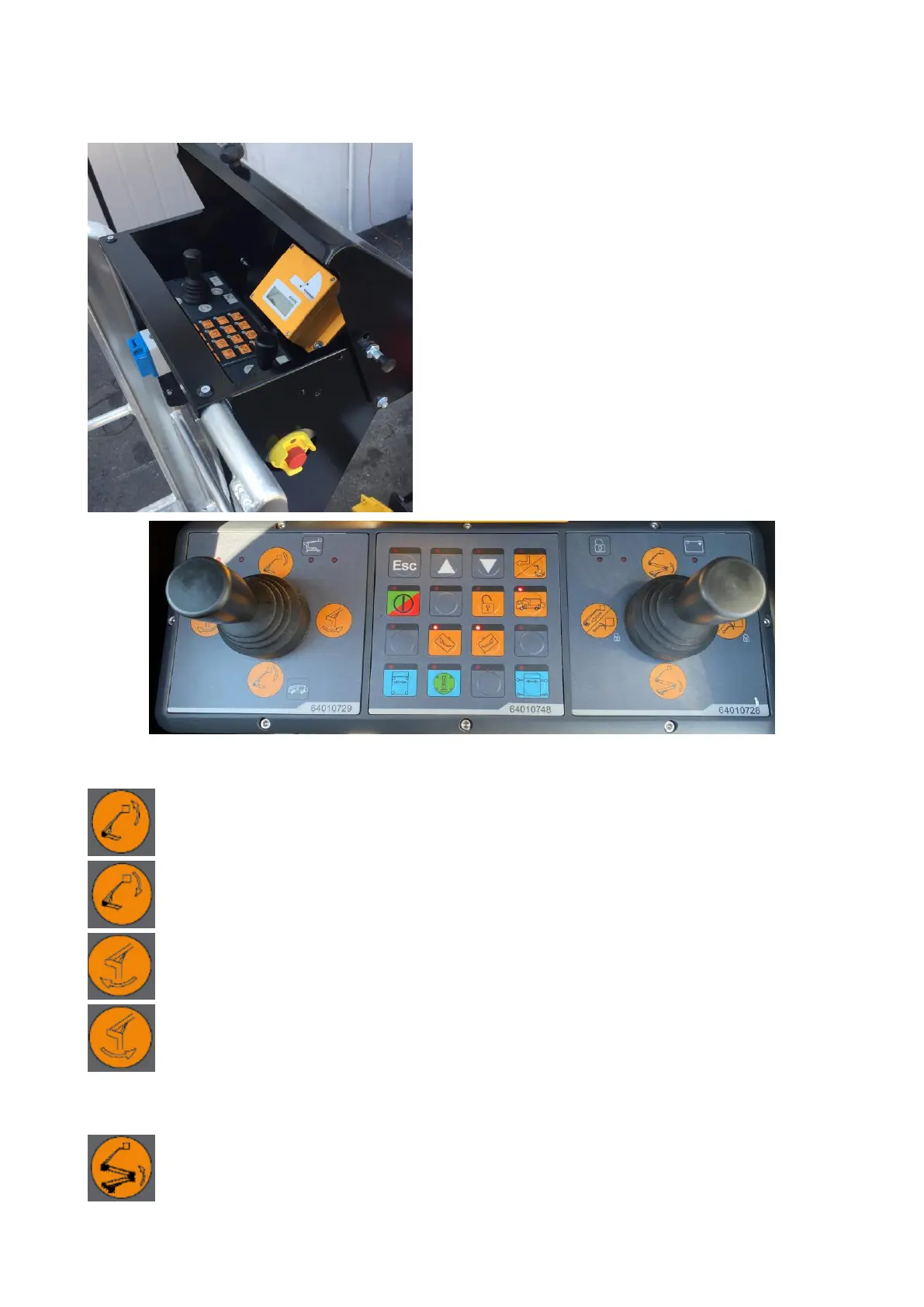

3. Control panel at working cage
4. Display
5. 230V plug in basket
6. Push button, red “Emergency Cut-Off”: push
this button in case of imminent risk. All
movements of the platform and the engine of
the vehicle stop immediately.
LEFT-HAND JOYSTICK
Function key
Description
Raise boom
↑
- Lifts up the boom.
Lower boom
↓
- Lowers the boom.
Swivel boom left
←
- Swivels the boom (tower) to the left.
Swivel boom right
→
- Swivels the boom (tower) to the right side.
RIGHT-HAND JOYSTICK
Function key
Description
Raise pantograph boom
↑
- Lifts up the boom.
