respective hydraulic hoses. The labelling on the hydraulic hoses and
connection points must not be removed or rendered illegible. Short hy-
draulic hoses, with which the hose ends are visible at the same time, are
excepted from such labelling.

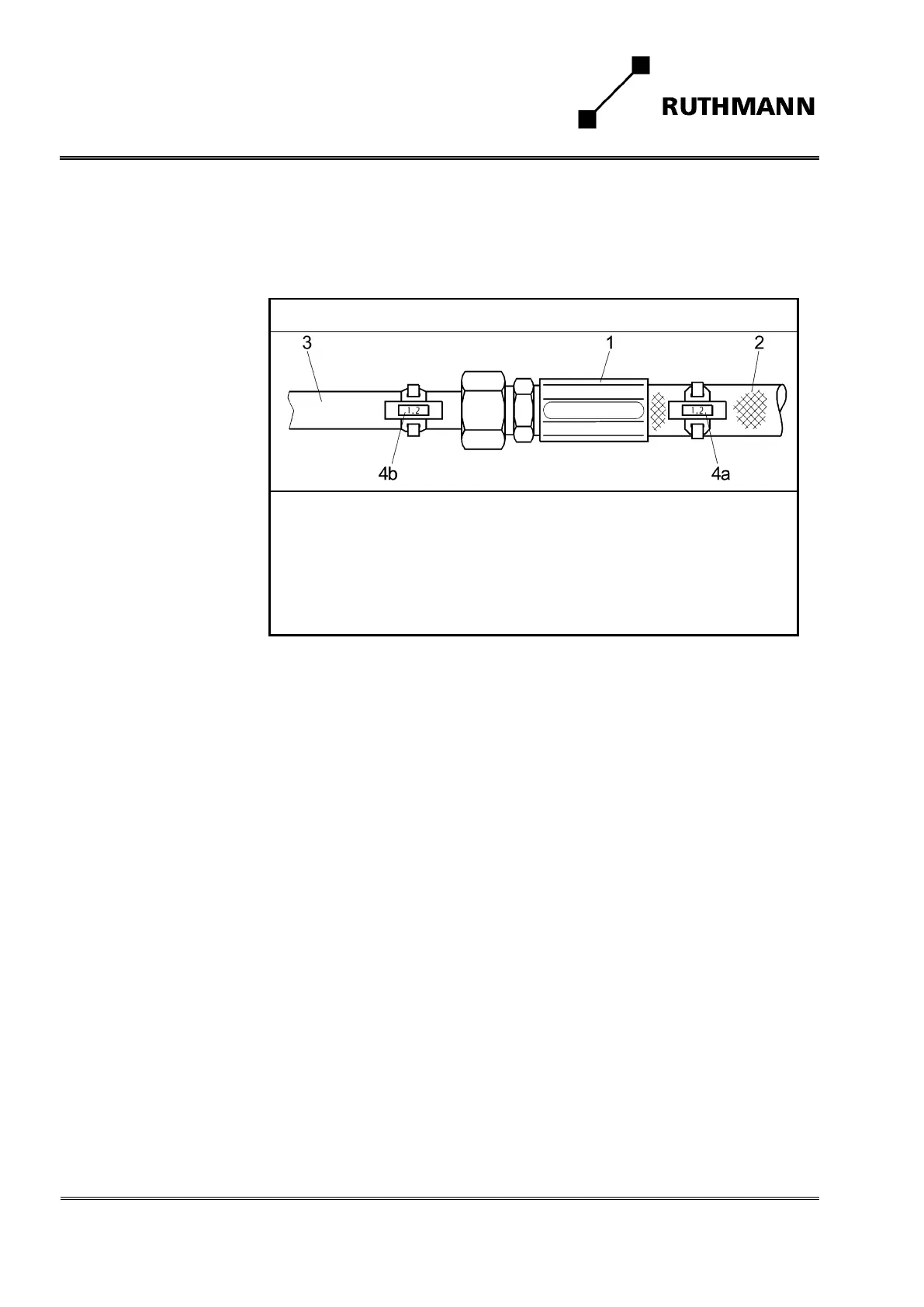

Labelling of the connection
1. Instrument panel
2. Hose
3. Line (example)
4a. Labelling (e.g. „1.2“) of the hydraulic hose line
4b. Labelling (e.g. „1.2“) of the connection point (e.g. line,
bulkhead screwed connection, hydraulic block)
