9.4.5.17 Hydraulic tank
Attention!
Let hydraulic oil barrels rest for a longer time before
taking oil out of it.
Do not leave the tank cover at hydraulic oil tank open
longer than absolutely necessary. Close hydraulic oil
barrels immediately after taking out oil.

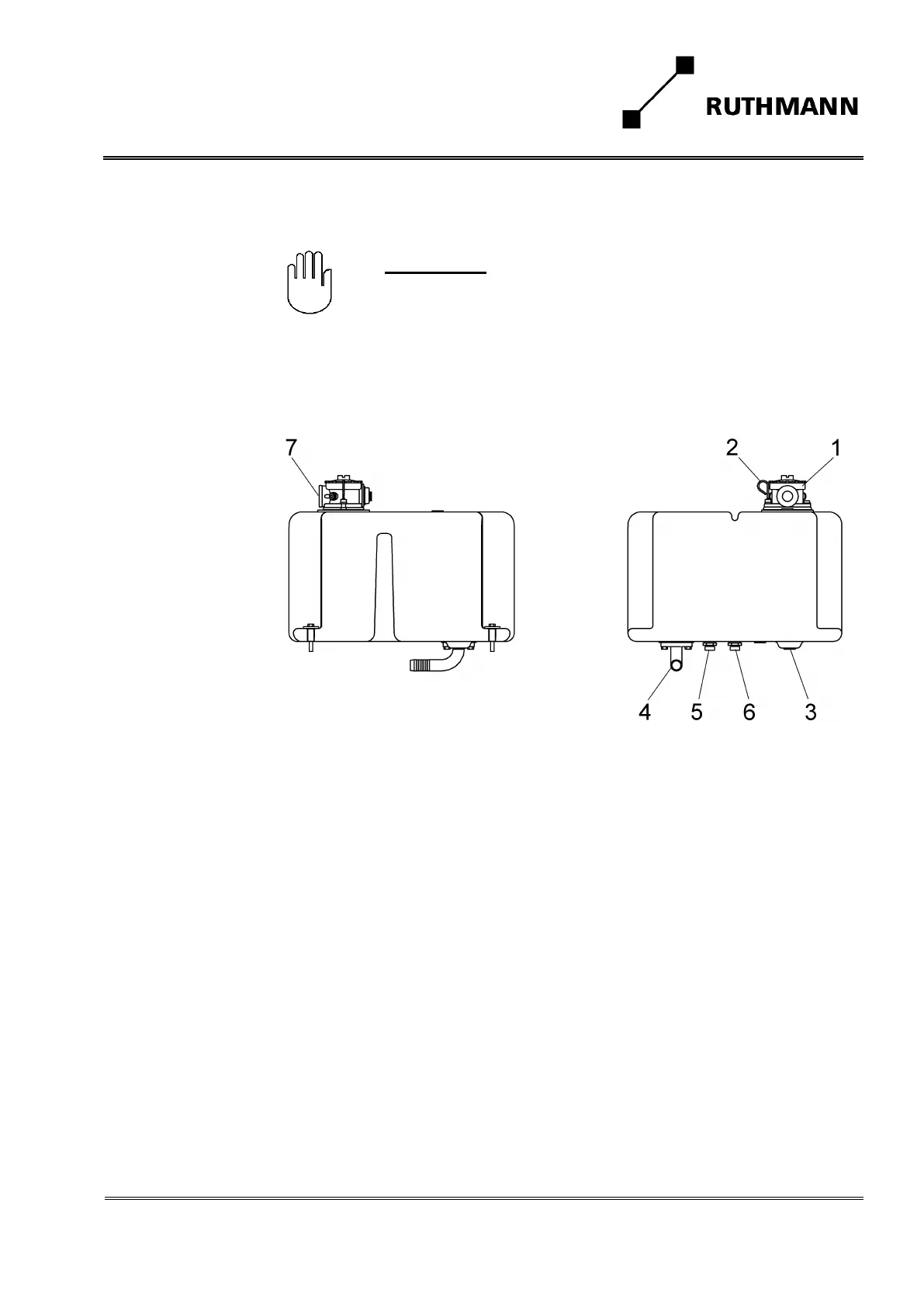

1. Return filter
2. Oil dip stick
3. Oil draining screw
4. Suction line hydraulic pump
5. Suction line hand pump
6. Suction line secondary drive (op-
tional extra)
7. Connection return line
Check hydraulic oil level.
Ruthmann-Steiger in travel position.
Steiger out of operation, engine off.
Check oil level by means of oil dip stick (2).
The oil level may only be measured with horizontally positioned
vehicle, since otherwise the oil dip stick will not show the actual oil
level. Check oil level with cold hydraulic oil.
The hydraulic oil stand must be between the upper and the lower
marking at dip stick (2).
If necessary add oil according to lubrication point list.
Clean hydraulic tank if necessary. Do not use a high-pressure cleaner or
chemical detergent.
