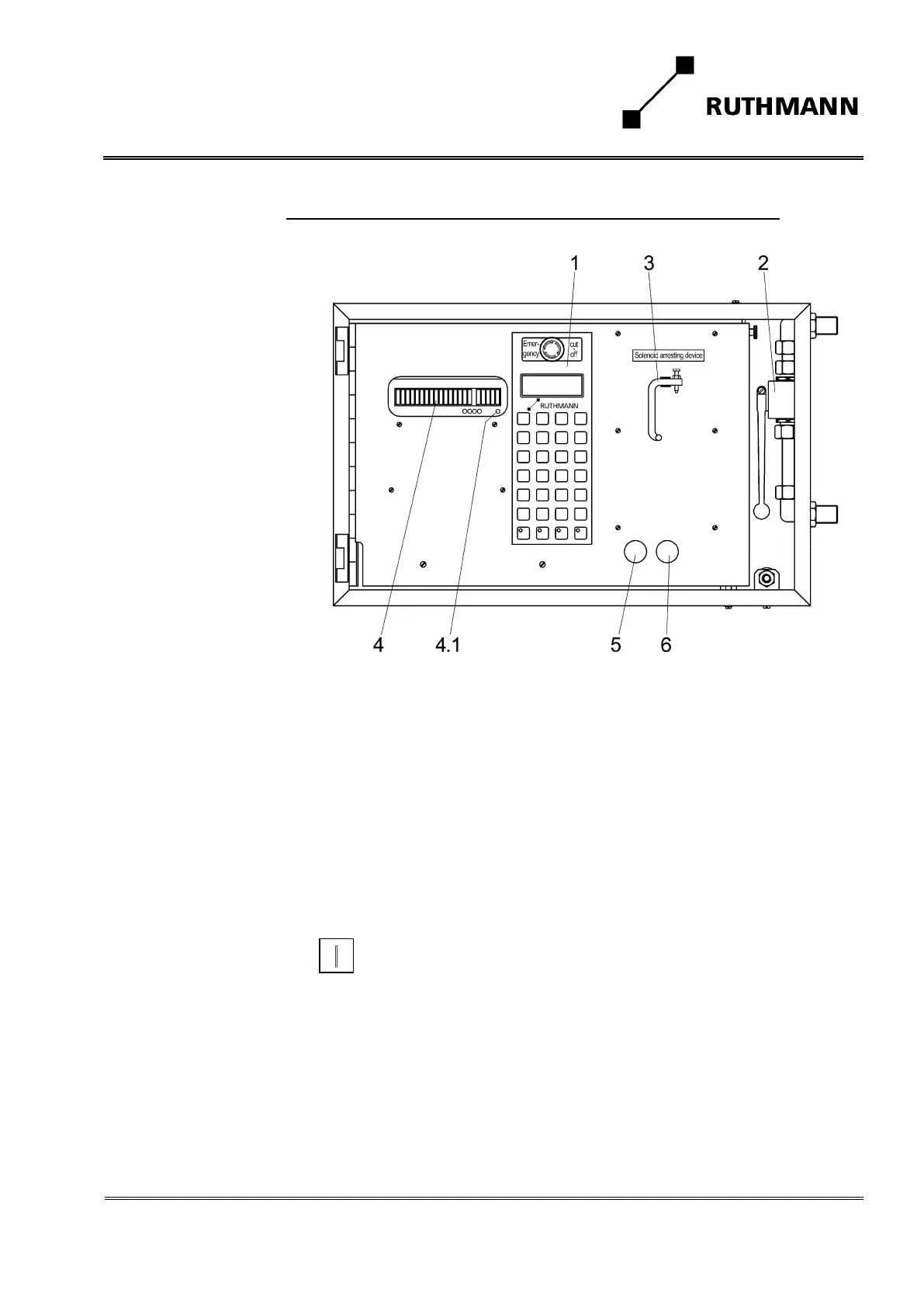

4.3.3 Switch box (emergency control) at Steiger-substructure
1. Operating panel Emergen-
cy Control
 Operating panel and plain text indica-
tion
1. Ball cock
 Emergency operation
1. Solenoid arresting device
 Emergency operation,
for solenoid valves
1. Printed circuit board for
fuses
 Consumers and power circuits are
secured by means of lead fuses of
different power
4.1 Green LED
on printed circuit board for
fuses
 Test function fuse
5.
Push button
„Motor start“
 Push button function, starts vehicle
engine (only possible with switched-
on ignition).
5. Optional extra
