4 Operating elements and
displays
BA.GB.12-27409-05-07-FTA-jr
RUTHMANN-Steiger
®
TB270
4-9

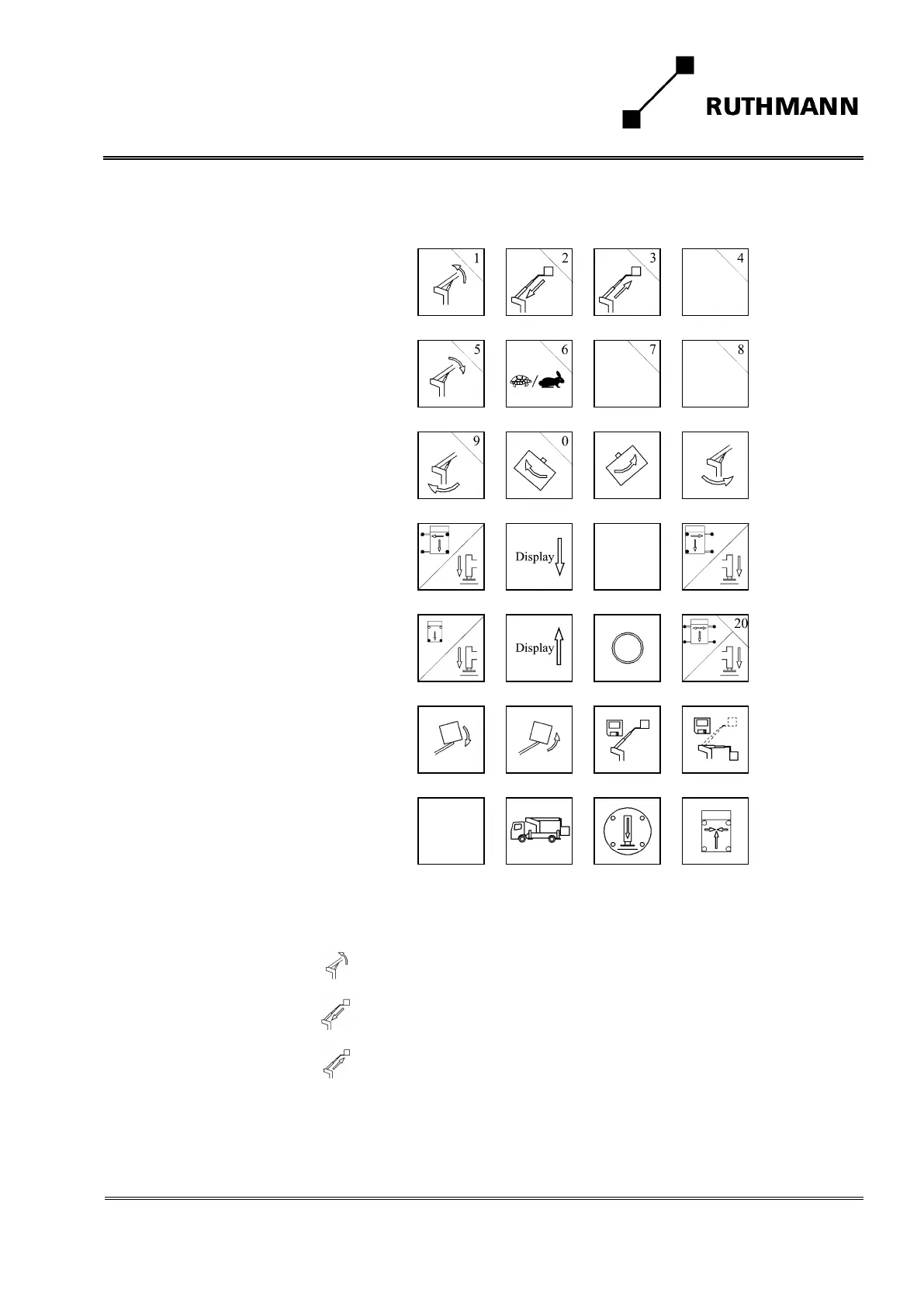

4.3.3.2 Touch panel of Emergency Control
Coordination of functional push buttons from left to right and from top to
bottom (Observe optional extra, see control panel of working cage):
1.
boom up
- Lifting of boom;
numerically marked with „1“
1.
telescope in
- Retract telescope;
numerically marked with „2“
1.
telescope out
- Extend telescope;
numerically marked with „3“
1.
free
without function;
numerically marked with „4“
