Ruud UIWH07AVFJ - Optional Part

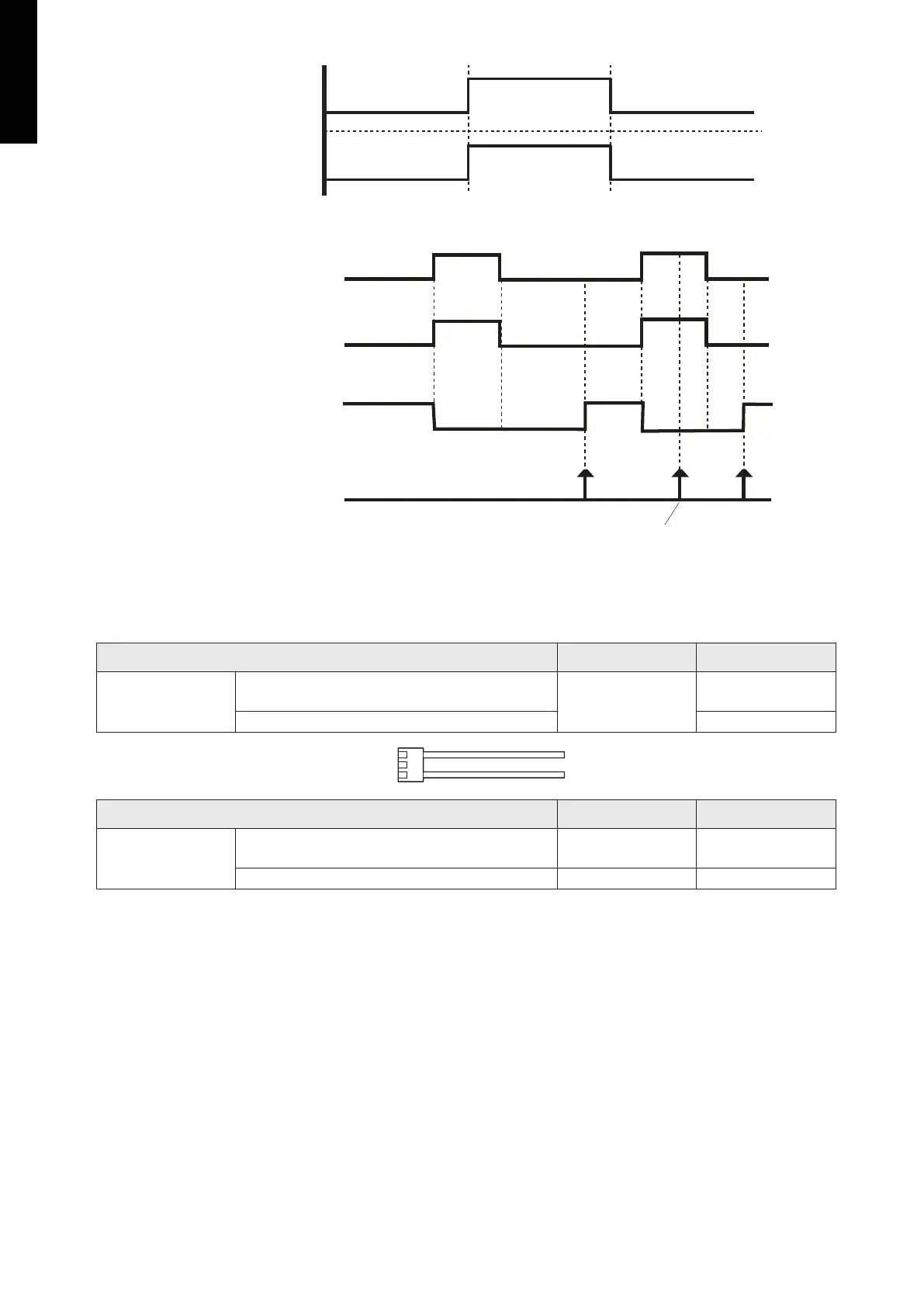

• When function setting is "Operation/Stop" mode
Operation
Stop
On
Off
Input signal
Indoor unit
• When function setting is "Forced stop" mode
Remote controller
On On On
Input signal
Indoor unit
Command
Remote control
operation invalidity
On
Off
Operation
Stop
Forced stop
Normal
 Optional part
Indoor unit type Part name Model name
Wall mounted
UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ,
UIWH15AVFJ
External connect
kit
RXXWZXZ5
UIWH18AVFJ, UIWH24AVFJ RXXWZX
Indoor unit type Part name Model name
Wall mounted
UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ,
UIWH15AVFJ
Communication kit RXXCBXZ2
UIWH18AVFJ, UIWH24AVFJ — —
*For operating the external input function, the wall mounted (UIWH07AVFJ, UIWH09AVFJ,
UIWH12AVFJ, and UIWH15AVFJ) type requires optional communication kit (RXXCBXZ2) in
addition to the wire (RXXWZXZ5).
