RX3000 Manual & Operating Instructions 7/10
Page 14 of 25
5.4 Pre-Filter Installation

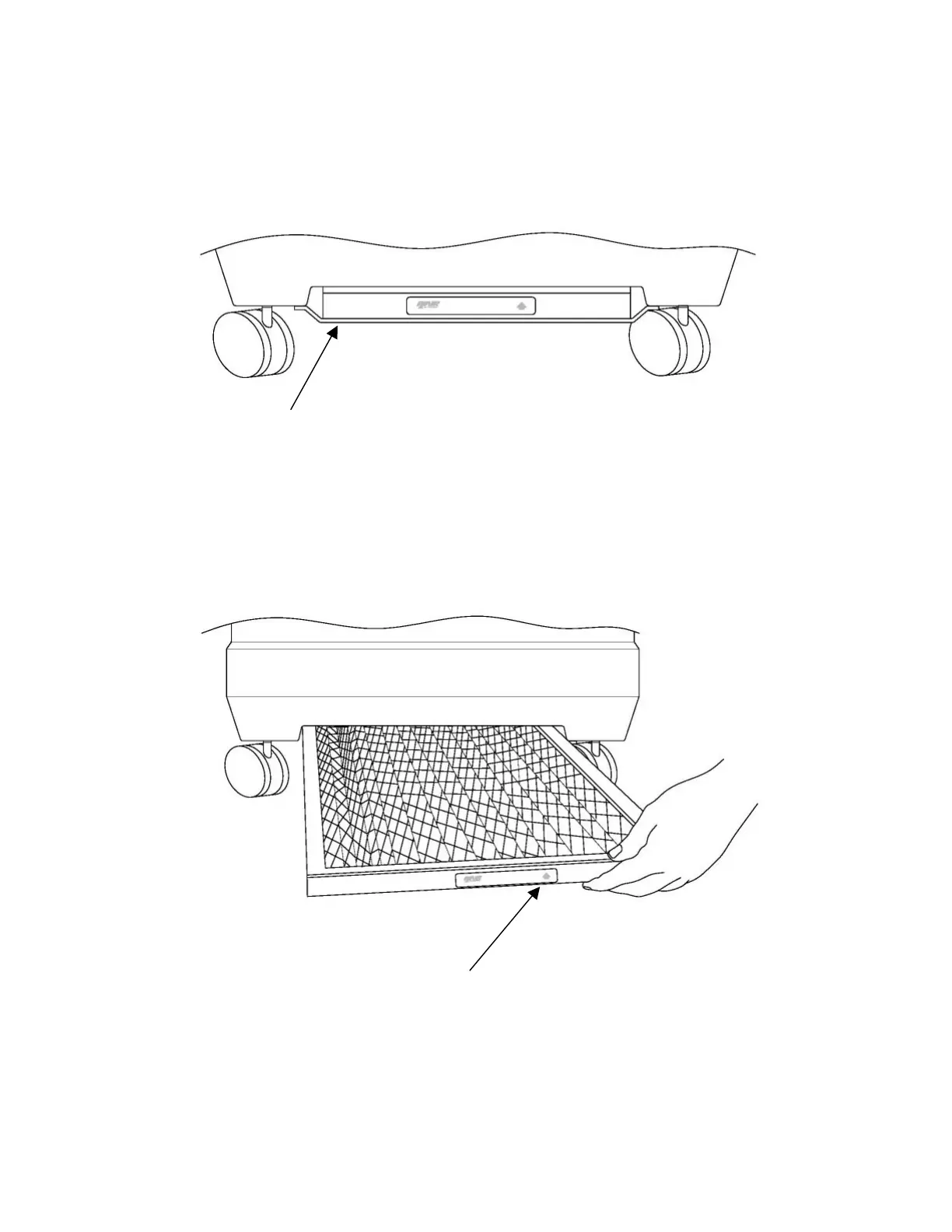

Figure 6 below illustrates the Pre-Filter in position on the Pre-Filter Support Bars.
Figure 6: Pre-Filter Support Bars
Figure 7 below illustrates the Pre-Filter being installed. Ensure the end of the filter seats
onto the support bars shown in Figure 6.
Figure 7: Pre-Filter being installed
Filter Latch
T-Handle
Locks
Arrow showing direction of airflow
points upwards
