4 SETUP
4
1
2

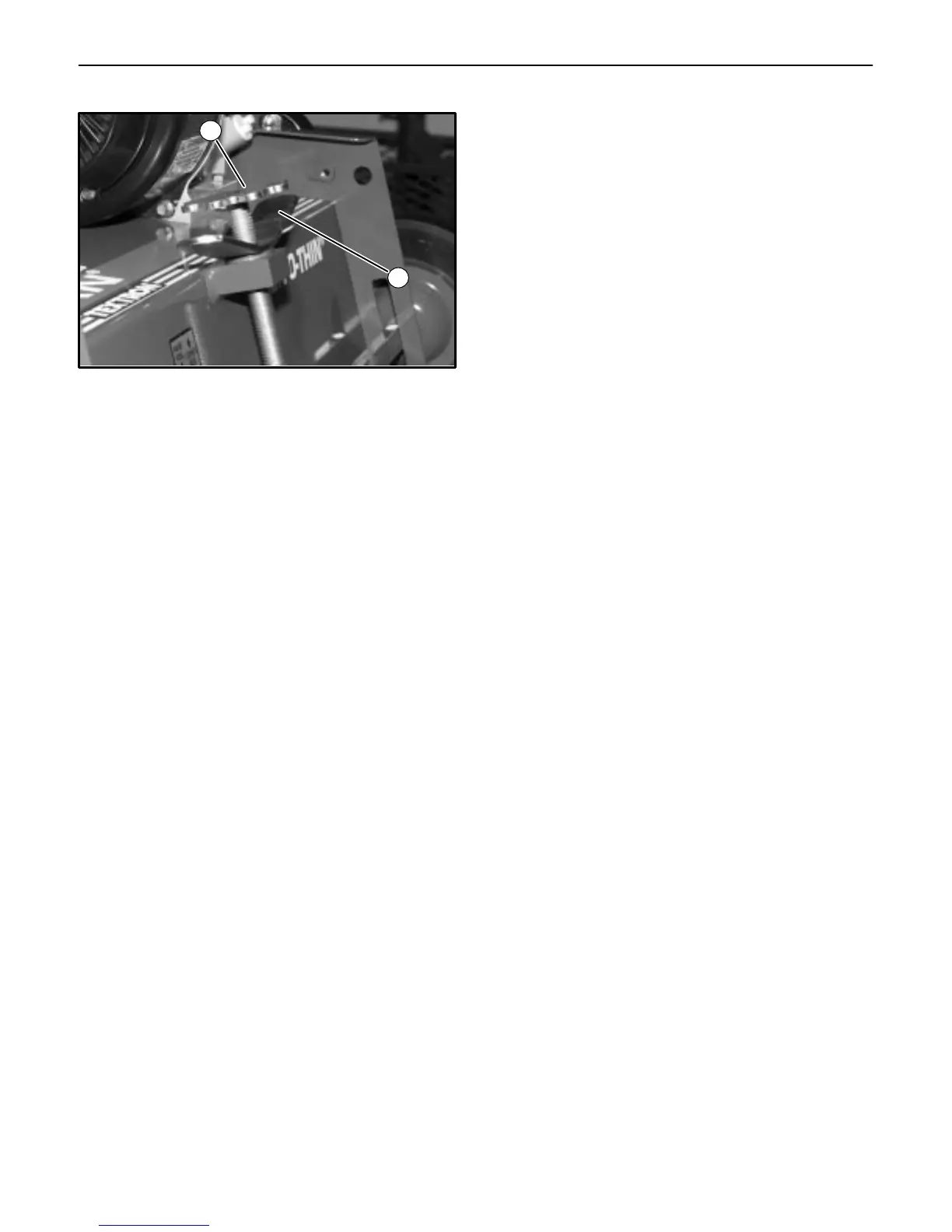

FIGURE 7
1. Locking Lever
2. Adjusting Knob
After installing any reel, make the first adjustment on a
hard level surface.
Adjust the blades to 1/8” (3 mm) above the surface. Test
this setting on a small area, then adjust the blades to turf
conditions as required. Each number on the adjustment
decal represents a change of 1/8” (3mm).
If the desired blade position cannot be obtained by
adjusting the front wheels, the rear wheels can be
adjusted. Mounting the wheels in the top hole lowers the
blades and mounting the wheels in the bottom hole
raises the blades.
The front axle may be locked in the down position to
prevent the floating action if desired. Install and secure
1/2” screws, washers, lockwashers and nuts in the slots
above the axle. This will prevent the axle from moving.
