OPERATION 5
5
5 OPERATION
WARNING
!
DO NOT operate this equipment until you have
thoroughly read and understand the operation
section of this manual.
DO NOT operate this equipment without all
shields in place.
DO NOT make any adjustments or perform any
maintenance while the engine is running.
Always run unit engine where there is plenty of
fresh air to prevent a buildup of carbon monox-
ide fumes. Carbon monoxide fumes are color-
less, odorless and deadly. NEVER run unit in
an enclosed space where exhaust fumes may
collect.
Always stop engine and DO NOT smoke or
allow open flames or sparks when refueling.
Gasoline is extremely flammable and highly
explosive under certain conditions.
Any warning decal that becomes illegible must
be replaced immediately.
To prevent injuries from thrown blades,
NEVER operate the unit with reel blades that
are missing, cracked, badly bent or in any type
of abnormal condition.
Inspect the area to be raked before operating.
Remove any objects that may present a safety
hazard or damage the equipment.
To prevent injury from rotating blades, NEVER
place hands or feet beneath the unit.
This unit is not self propelled by a mechanical
drive system. However, under some condi-
tions the reel rotation may cause the unit to
move under it’s own power.
Engage the reel ONLY when you are in the
proper operator’s position behind the handle.
The clutch bail is designed to be held by the
operator to keep the reel belt engaged ONLY
during use. DO NOT clamp or fasten the bail to
the handle. If the reel is allowed to rotate while
the operator is not in the proper operating
position, the unit may move on it’s own. This
will create an unsafe situation in which the
operator and/or bystanders may be injured.
5.1 DAILY PRE-OPERATION CHECK
1. Visually check for loose or damaged parts and
fasteners. Repair or replace as needed before unit is
placed into operation.
2. Check the reel for bent or broken blades; replace as
necessary.
3. Check engine oil level. Add oil if necessary, following
the engine manufacturer’s recommendations. Refer
to engine manual included with literature packet.
4. Fill the fuel tank with the amount and type of fuel
recommended by the engine manufacturer.
5.2 STARTING THE ENGINE

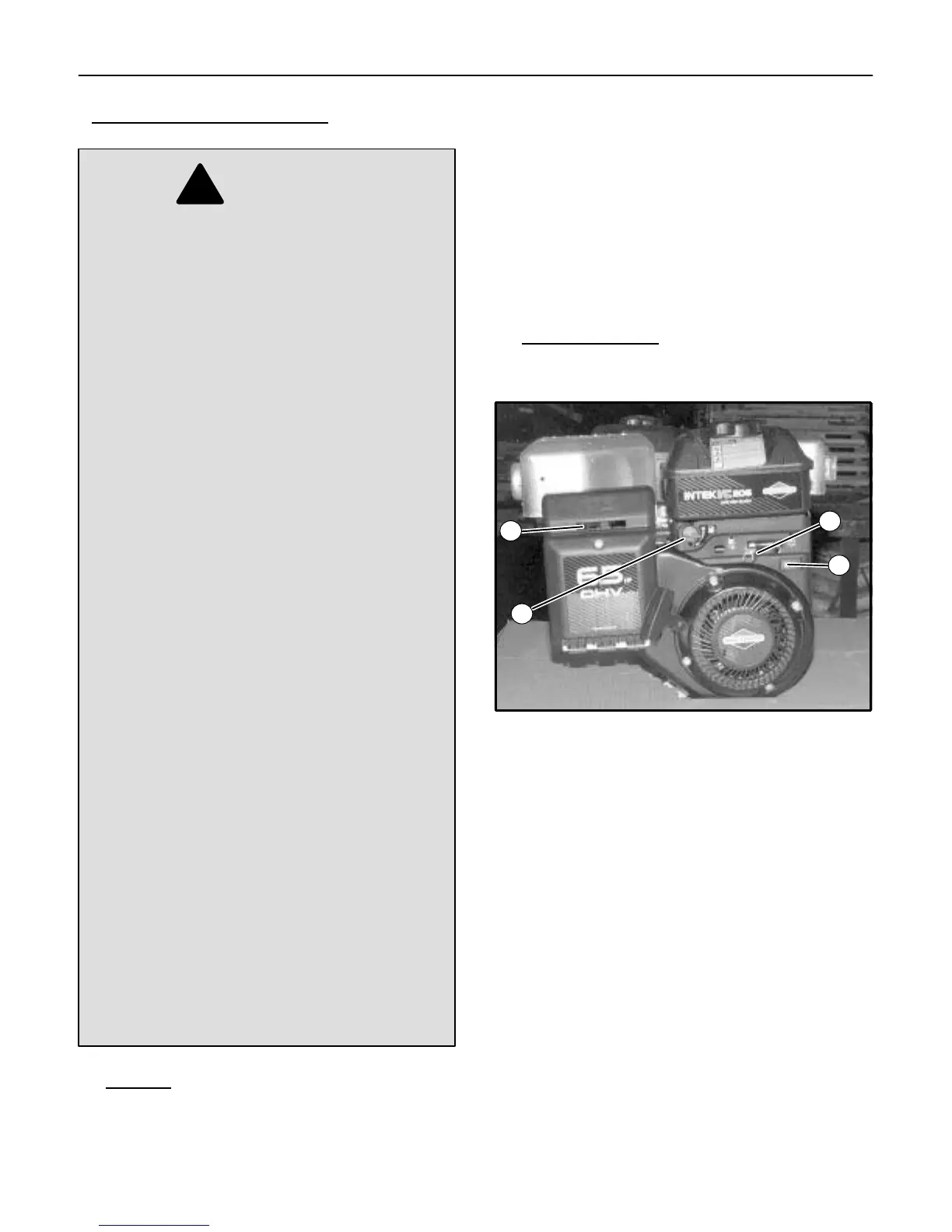

The engine controls are illustrated in Figure 8.
1
2
3
4
FIGURE 8
ENGINE
1. Throttle Control
2. Choke Control
3. Stop Switch
4. Fuel Shut-off Valve
1. Turn fuel shut-off valve to “ON” position.
2. Push stop switch to “ON” position.
3. Move manual choke control lever to “CHOKE”
position.
4. Move engine throttle control lever to “FAST”
position.
5. Grasp starter grip and pull slowly until resistance is
felt, then pull cord rapidly to start engine. Repeat if
necessary with choke opened slightly.
6. After engine starts, move choke to “RUN” position.
7. Adjust throttle control on engine as required.
