Carefully read and understand these instructions Before operating this high pressure washer.
Technical data
Power rating input: 1700 W
Rated pressure: 11 MPa
Allowable pressure: Max. 15 MPa
Rated ow: 6.67 L / min
Suction height: 1 m
Max. water inlet pressure: 1.0 MPa
Rated temperature: 0 - 60℃
Weight (weight including accessories) : 7.5 Kg

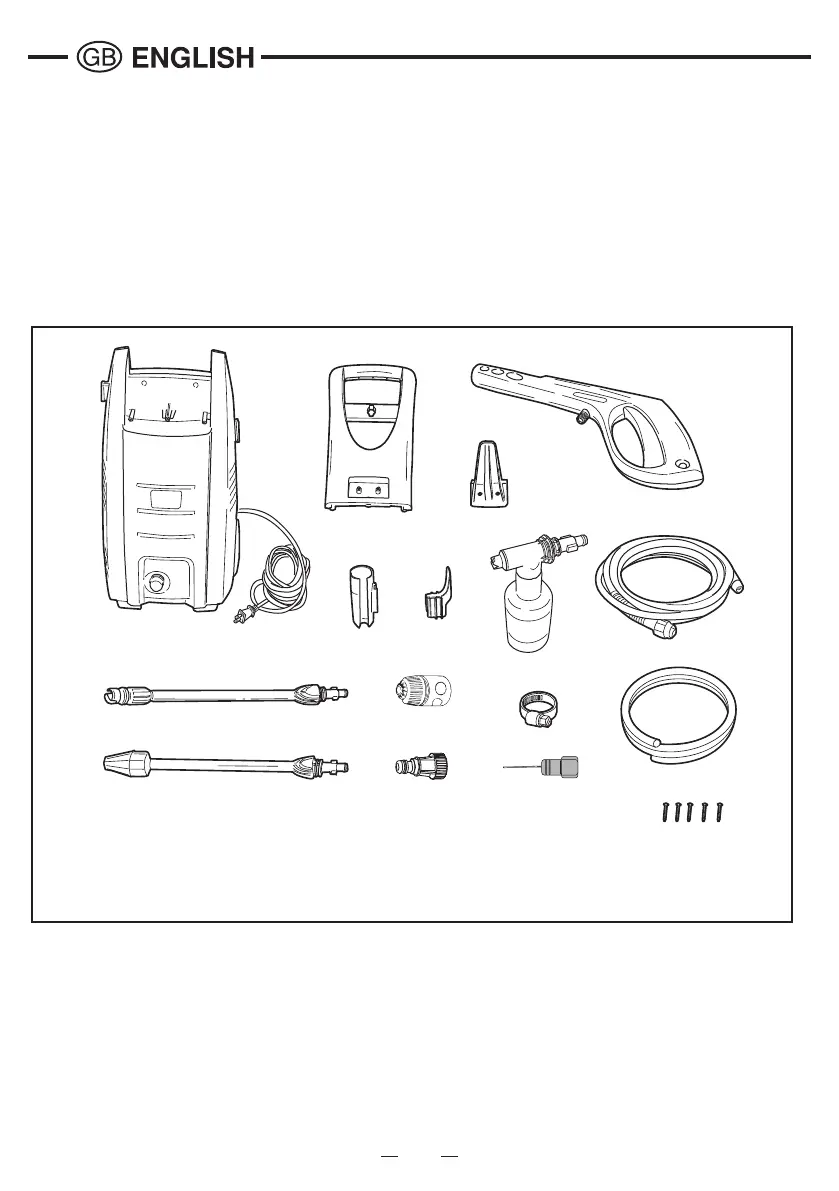

Name of Parts:
Preparation
Before starting up your machine, we advise you to carefully read through this instruction manual. Follow all instruction to
minimize the risk of injuries when using the machine.
Prior to operation
Before starting up your machine please check it carefully for any defects. If you nd any, do not start up your machine and
contact your distributor.
Especially check:
The insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, it should be
replaced by RYOBI authorized distributor.
1. Main Unit 2. Handle 3. Spray Handle 4. Hose Support
5. Gun Support 6. Cord Support 7. Detergent Nozzle 8. High Pressure Hose
9. Variable Nozzle Lance 10. Turbo Nozzle Lance 11. Hose Joint 12. Water Connector
13 .Hose Clamp 14. Nozzle Cleaning Pin 15. Hose (3m) 16. Screw
