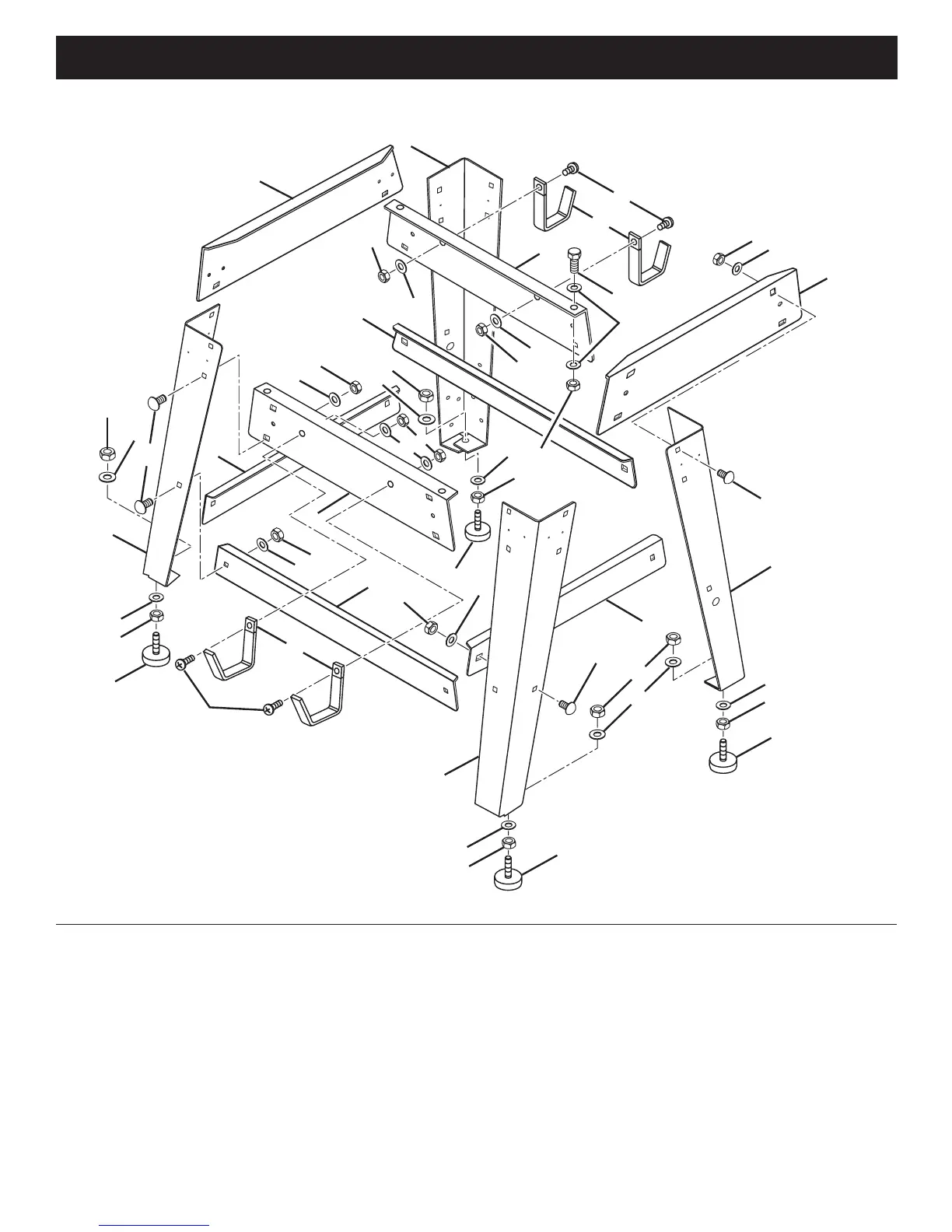

The following items are included with your table saw leg stand.
LOOSE PARTS LIST
Fig. 4
B
C
D
E
E
D
K
K
J
L
K
F
D
E
I
M
D
J
E
D
H
A
H
E
D
C
D
E
M
C
B
A
I
G
G
H
D
E
E
D
F
C
E
D
F
E
D
F
G
A. Storage Bracket .....................................................4
B. Screw (1/4-20 x 1/2 in. Pan Hd.)............................ 4
C. Lower Brace ........................................................... 4
D. Hex Nut (5/16-18) ................................................32
E. Washer (5/16 in.)..................................................32
F. Leveling Foot .........................................................4
G. Leg ......................................................................... 4
H. Carriage Bolt (5/16-18 x 3/4 in.) ..........................24
I. Upper Brace ........................................................... 2
J. Hex Nut (1/4-20) ....................................................8
K. Washer (1/4 in.) ....................................................12
L. Bolt (1/4-20 x 3/4 in. Hex Hd.) ...............................4
M. Upper Side Brace ................................................... 2
