OPERATION
This product will accept Ryobi One+ 18 V lithium-ion battery
packs and Ryobi One+ 18 V nickel-cadmium battery packs.
Both types of battery packs are shown on this page. Following
pages will show the lithium-ion 18 V battery pack.
For complete charging instructions, refer to the operator’s
manual for the P113 charger. For battery pack instructions,
see the manual for the P104 lithium-Ion battery pack or the
P100 nickel-cadmium battery pack.
INSTALLING THE BATTERY PACK
See Figure 4.
NOTE: The battery pack is shipped in a low charge condi-
tion. Therefore, it must be charged prior to use. Refer to
CHARGING BATTERY PACK for charging instructions.
Place the battery pack in the saw. Align the raised rib
on the battery pack with the groove inside the saw, then
slide the battery pack into the saw.
Make sure the latches on each side of your battery pack
snap into place and the battery pack is secured in the
saw before beginning operation.
CAUTION:
When placing battery pack in the tool, be sure raised
rib on battery pack aligns with the bottom of the tool
and latches into place properly. Improper installa-
tion of the battery pack can cause damage to internal
components.
REMOVING THE BATTERY PACK
See Figure 4.
Locate the latches on the side of the battery pack and
depress them to release the battery pack from the saw.
Remove battery pack from the saw.

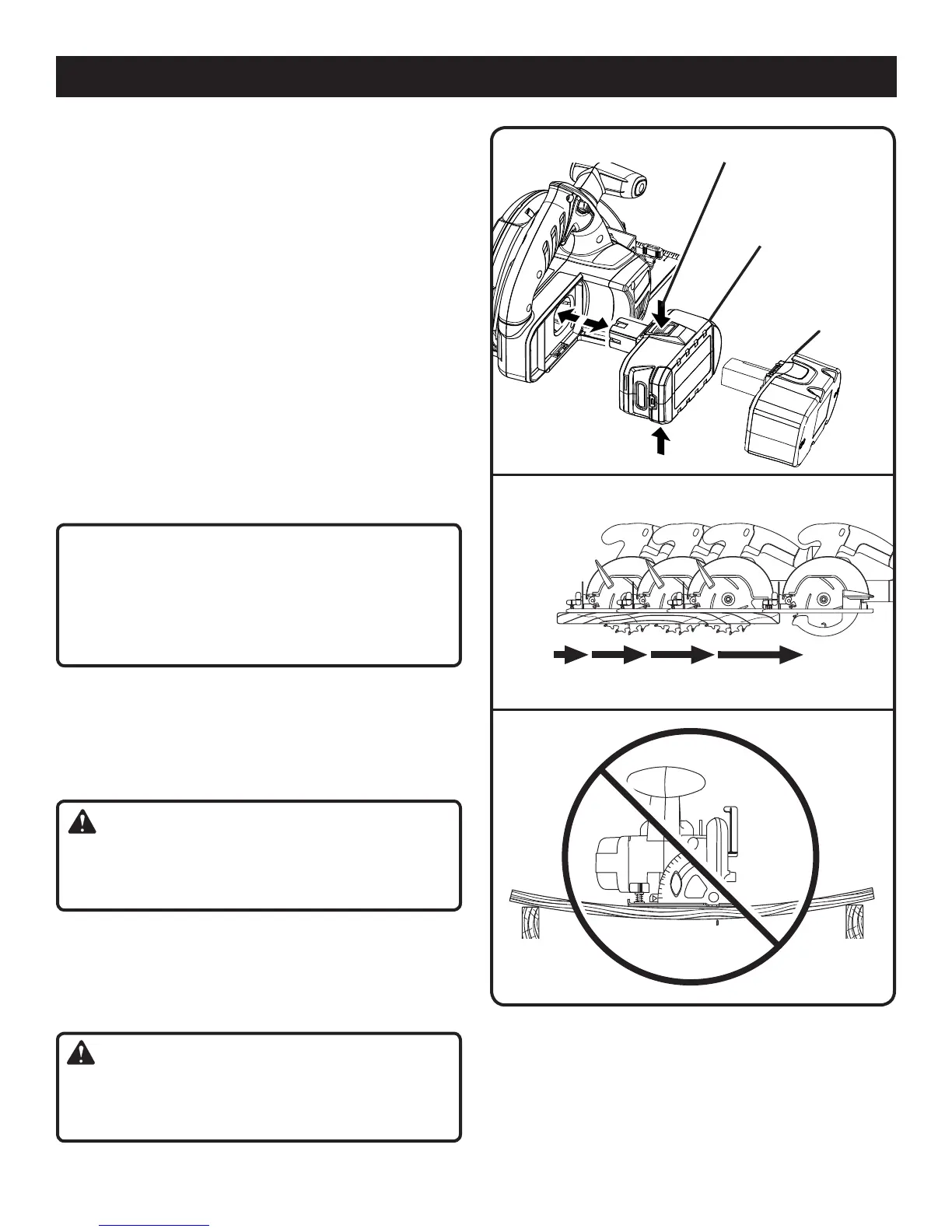

Fig. 4
DEPRESS LATCHES TO REMOVE BATTERY PACK
TO
INSTALL
WARNING:
Battery tools are always in operating condition. There-
fore, switch should always be locked when not in use or
carrying at your side.
Fig. 5
KICKBACK - BLADE SET TOO DEEP
Fig. 6
INCORRECT
SUPPORT
WRONG
KICKBACK
See Figures 5 - 8.
Kickback occurs when the blade stalls rapidly and the saw
is driven back towards you. Blade stalling is caused by any
action which pinches the blade in the wood.
DANGER:
Release switch immediately if blade binds or saw stalls.
Kickback could cause you to lose control of the saw. Loss
of control can lead to serious injury.
P100 NICKEL-CADMIUM
BATTERY PACK
P104 LITHIUM-ION
BATTERY PACK
OR
