Ryobi P503 - Features

8
FEATURES

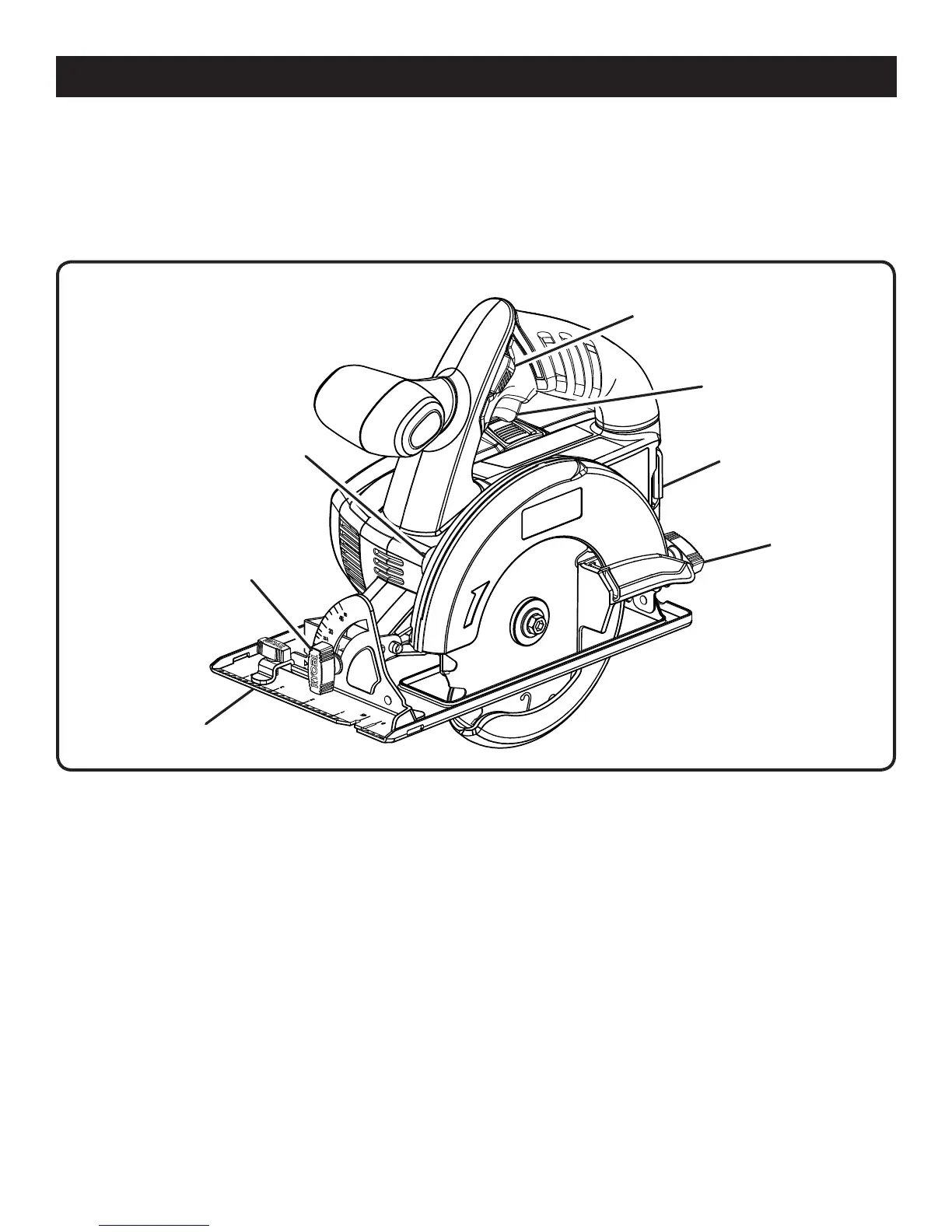

Fig. 1
PRODUCT SPECIFICATIONS
Motor .................................................................. 18 Volt DC
Blade Diameter .......................................................5-1/2 in.
Blade Arbor ............................................................... 3/8 in.
Cutting Depth at 0º ...............................................1-9/16 in.
Cutting Depth at 45º ...............................................1-1/8 in.
Charger Input.................................... 120 V, 60 Hz, AC only
No Load Speed ..................................... 4,200 r/min. (RPM)
LOCK-OFF
BUTTON
SWITCH
TRIGGER
DEPTH
ADJUSTMENT
KNOB
WIDTH OF
CUT SCALE
BEVEL
ADJUSTMENT
KNOB
BLADE
WRENCH
STORAGE
SPINDLE
LOCK BUTTON
KNOW YOUR CIRCULAR SAW
See Figure 1.
The safe use of this product requires an understanding of
the information on the product and in this operator’s manual
as well as a knowledge of the project you are attempt-
ing. Before use of this product, familiarize yourself with all
operating features and safety rules.
BEVEL ADJUSTMENT KNOB
The bevel adjustment knob allows you to set the circular
saw for bevel cuts from 45° to 90°.
BLADE WRENCH STORAGE
Convenient wrench storage for quick blade changes.
DEPTH ADJUSTMENT KNOB
The depth adjustment knob adjusts the depth of cut from
0 in. to 1-1/2 in.
LOCK-OFF BUTTON
The lock-off button reduces the possibility of accidental
starting.
SPINDLE LOCK BUTTON
The spindle lock button allows you to secure the blade when
turning the blade screw.
WIDTH OF CUT SCALE
When making straight cross cuts or rip cuts, the scale can
be used to measure up to 4-1/2 in. on the right side of the
blade, and up to 1 in. on the left side of the blade.
