BLADE
SCREW
ASSEMBLY
WARNING:
If inner blade washer has been removed, replace it before
placing blade on spindle. Failure to do so could cause an
accident since blade will not tighten properly.
Fit the saw blade inside the lower blade guard and onto
the spindle.
NOTE: The saw teeth point upward at the front of the
saw.
Replace the outer blade washer.
Depress the spindle lock button, then replace the blade
screw. Tighten the blade screw securely by turning it
counterclockwise.
Return the blade wrench to the storage area.
NOTE: Never use a blade that is too thick to allow the outer
blade washer to engage with the flats on the spindle.
REMOVING THE BLADE
See Figure 3.
Remove the battery pack from the saw.
Remove the blade wrench from the storage area.
Position the saw as shown, depress the spindle lock
button, and remove the blade screw by turning it clock-
wise.
Remove the outer blade washer.
Remove the blade.

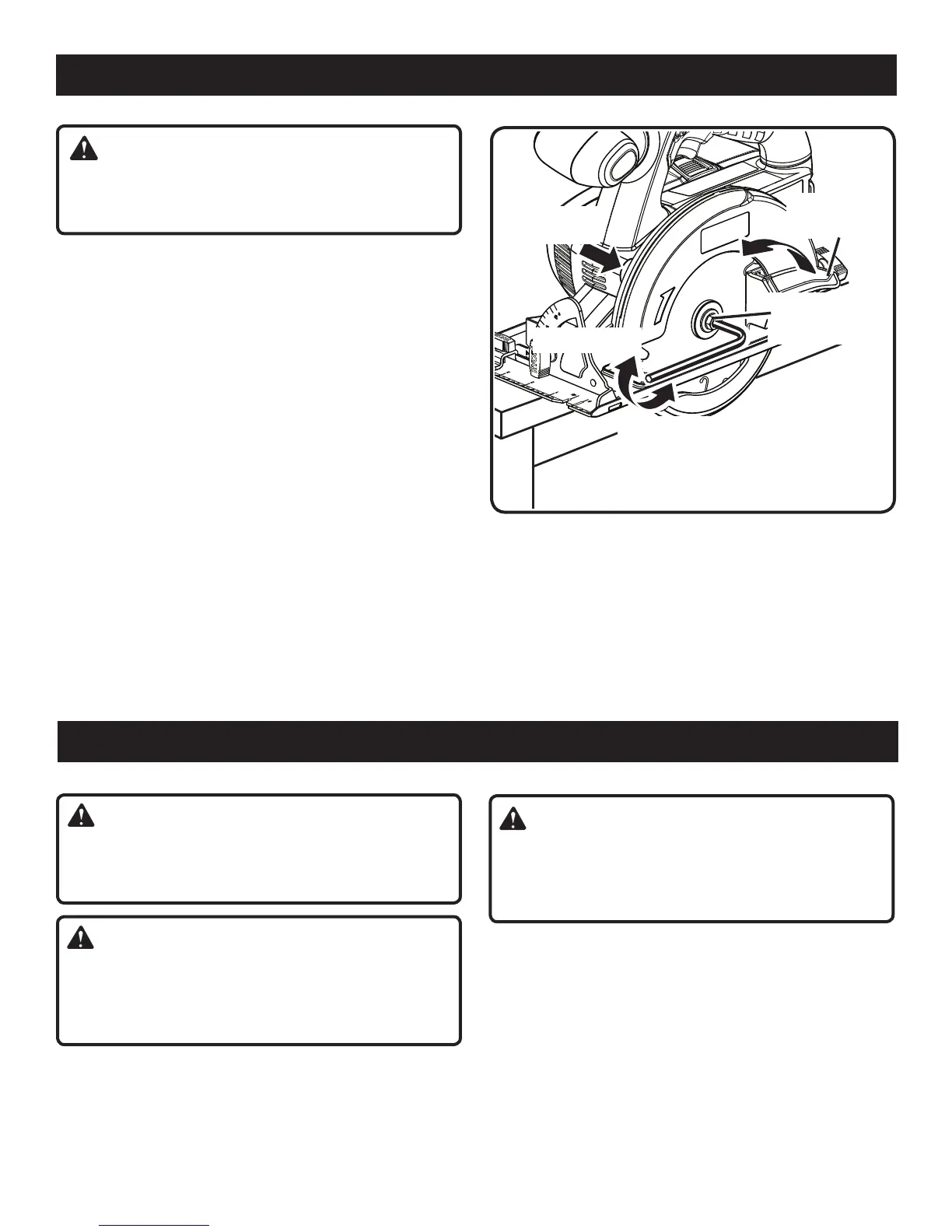

Fig. 3
SPINDLE LOCK
TO LOOSEN
LOWER BLADE
GUARD LEVER
TO TIGHTEN
WARNING:
Do not allow familiarity with products to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating products. Failure to do so could
result in objects being thrown into your eyes, resulting
in possible serious injury.
WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this product. The use of
attachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed below:
Cutting all types of wood products (lumber, plywood,
paneling, composition board, and hard wood)
OPERATION
