18
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power product operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the product when cleaning or
performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an Authorized Service Center.

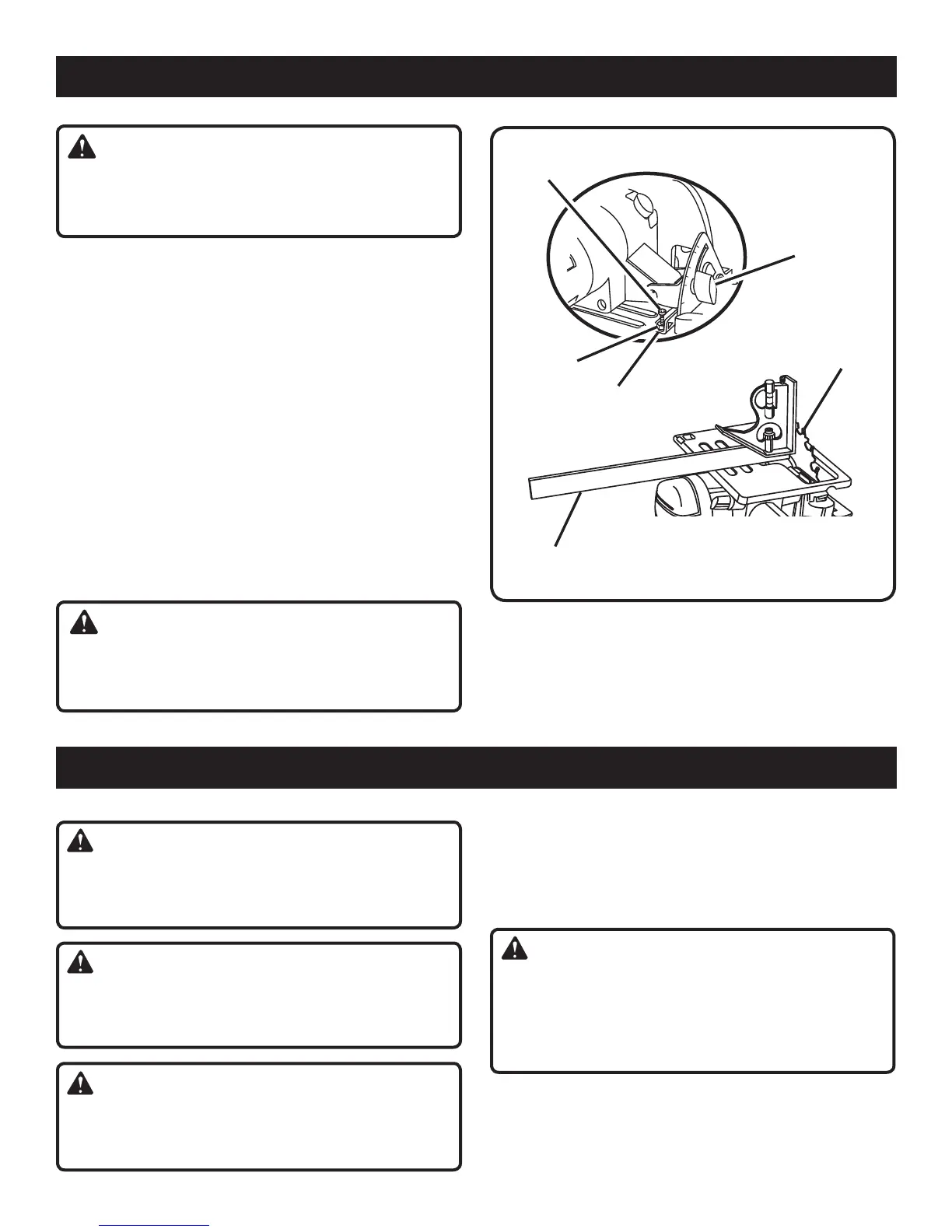

Fig. 22
BEVEL
ADJUSTMENT
KNOB
BLADE
CARPENTER'S
SQUARE
ADJUSTMENT
SCREW
HEX NUT
0° BEVEL STOP
ADJUSTMENTS
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
product when making adjustments.
0° BEVEL STOP
See Figure 22.
The saw has a 0° bevel stop that has been factory adjusted
to assure 0° angle of the saw blade plate when making 90°
cuts.
CHECKING 0° BEVEL STOP
Place the saw in an upside down position on a work-
bench.
Check the squareness of the saw blade plate to the base
of the saw using a carpenter’s square.
ADJUSTING 0° BEVEL STOP
Loosen bevel adjustment knob.
Turn setscrew with hex key and adjust base until it is
square with the saw blade plate.
Tighten bevel adjustment knob securely.
WARNING:
Attempting a bevel cut without having the bevel adjust-
ment knob securely tightened can result in serious
injury.
