Ryobi TS1346 - Fence Alignment Adjustments

18 — English
ASSEMBLY
 Loosen the fence screw and slide the partial sliding miter
fence toward the blade to access the socket head screws
securing the left miter fence to the table.
 Loosen the socket head screws that secure the miter
fence to the saw base.
 Rotate the miter fence left or right until the saw blade is
parallel with the square.
 Retighten the screws securely and recheck the blade-to-
fence alignment.
 Return the partial sliding miter fence to the home position
and retighten the fence screw to secure.

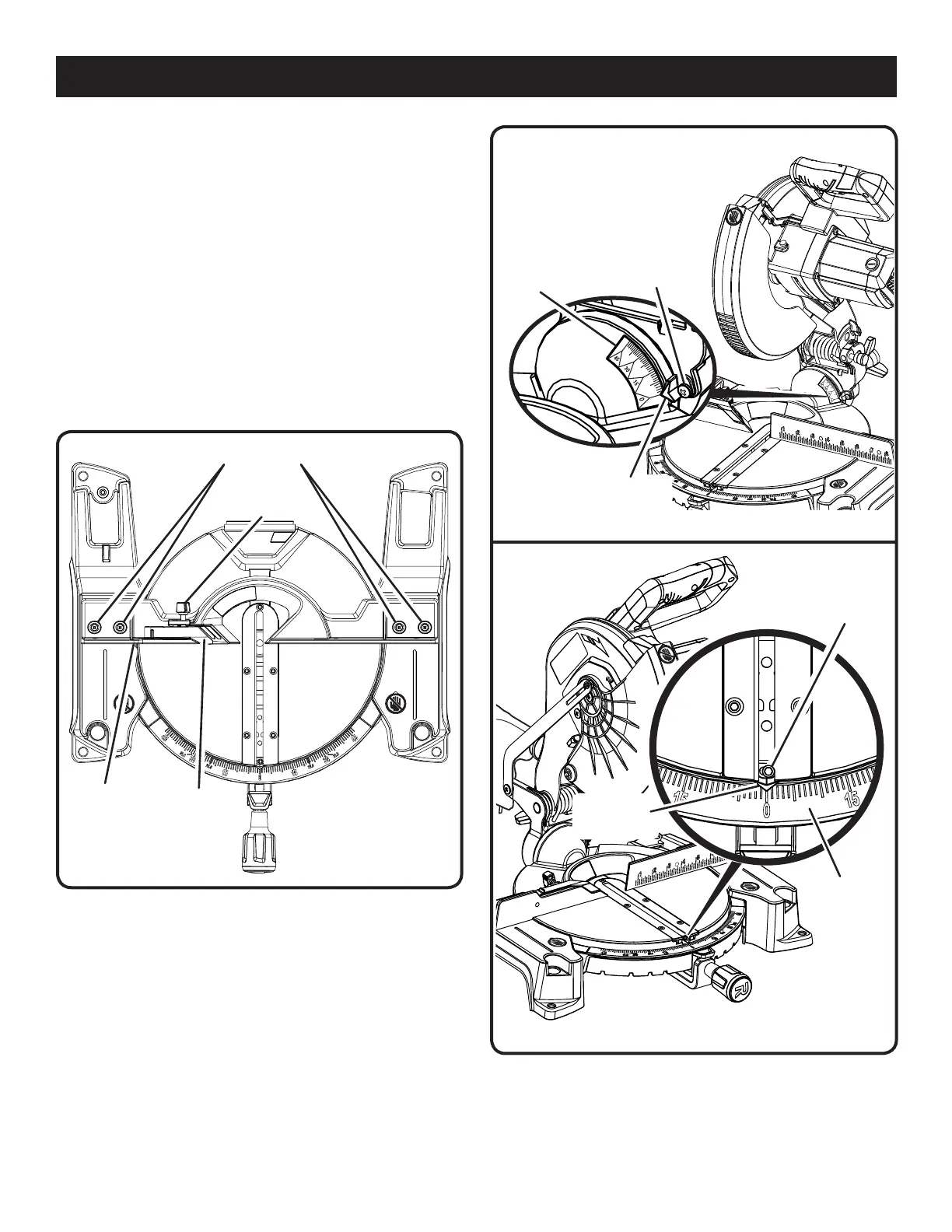

Your saw has several scale indicators. After squaring adjust-
ments have been made, it may be necessary to loosen the
indicator screws and reset them to zero. SeeFigures 18 and 19.
Fig. 17
SOCKET HEAD
SCREW(S)
MITER
FENCE
Fig. 18
Fig. 19
INDICATOR
SCREW
SCALE
INDICATOR
MITER
SCALE
INDICATOR
SCREW
BEVEL
SCALE
SCALE
INDICATOR
PARTIAL
SLIDING
MITER
FENCE
FENCE
SCREW
