20 − English
TO MAKE NON-SLIDING CUTS
WARNING:
Securely tighten the slide lock knob when making any
non-sliding cuts. Failure to tighten the knob could result
in the saw head moving during the cutting operation.
TO MITER CUT / CROSS CUT

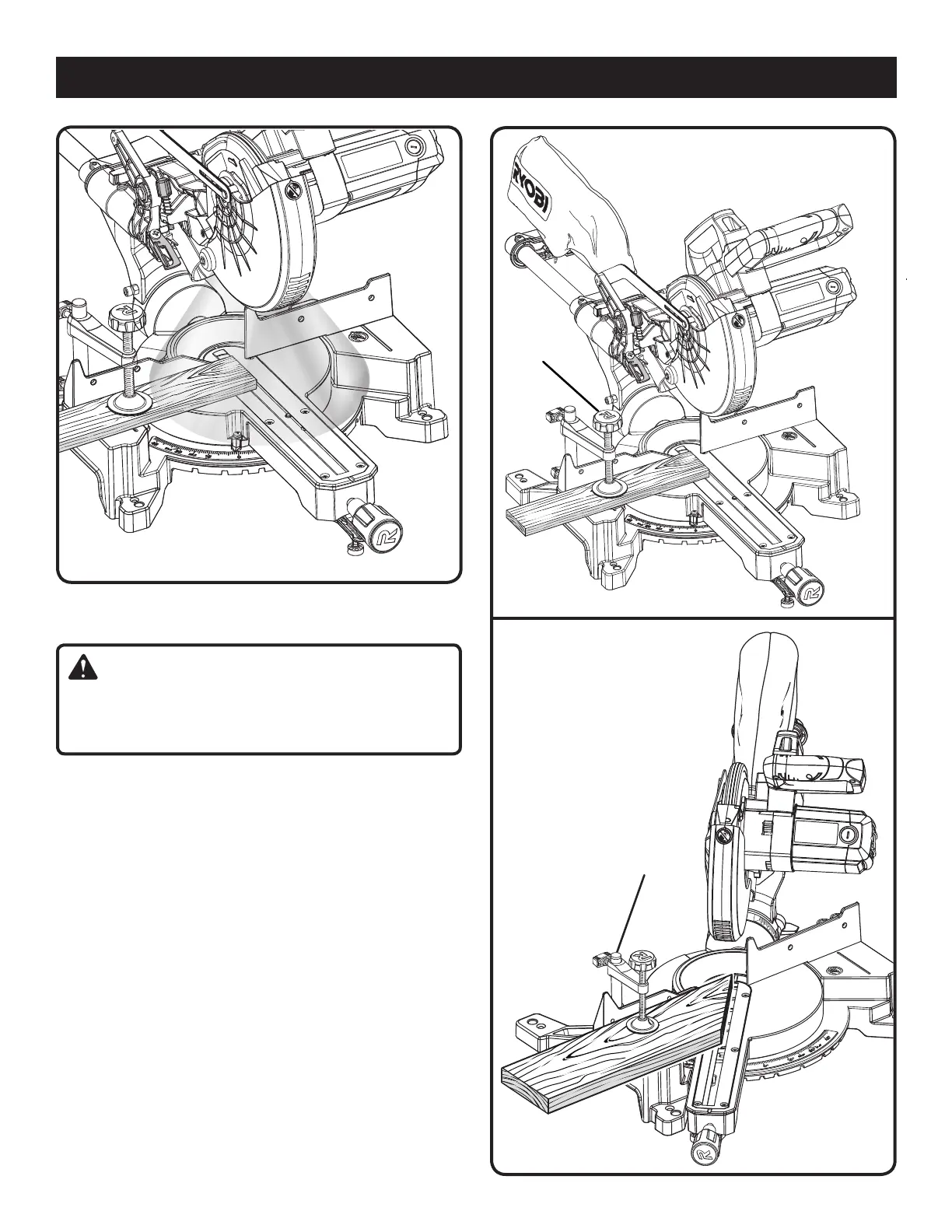

See Figures 25 - 26.
A cross cut is made by cutting across the grain of the
workpiece. A straight cross cut is made with the miter table
set at the 0° position. Miter cross cuts are made with the
miter table set at some angle other than 0°.
 Slide the saw head to its most rearward position and
tighten the slide lock knob securely.
 Raise saw arm to its full height.
 Loosen the miter lock handle approximately one-half turn
and squeeze the detent release lever.
 Rotate the control arm until the pointer aligns with the
desired angle on the miter scale.
 Release the detent release lever, then tighten the miter
lock knob to secure the miter table.
NOTE: You can quickly locate 0°, 15°, 22-1/2°, 31.6°,
and 45° left or right by releasing the detent release lever
as you rotate the control arm. The control arm will seat
itself in one of the positive stop notches, located in the
miter table base.
OPERATION
MITER CUT
WORK
CLAMP
CROSS CUT
Fig. 25
WORK
CLAMP
Fig. 26
Fig. 24
45
30
15
0
