POSITIONING
• The pumps are of a self-suction type even though assembly below the swimming
pool or tank water level is advised to improve performance.

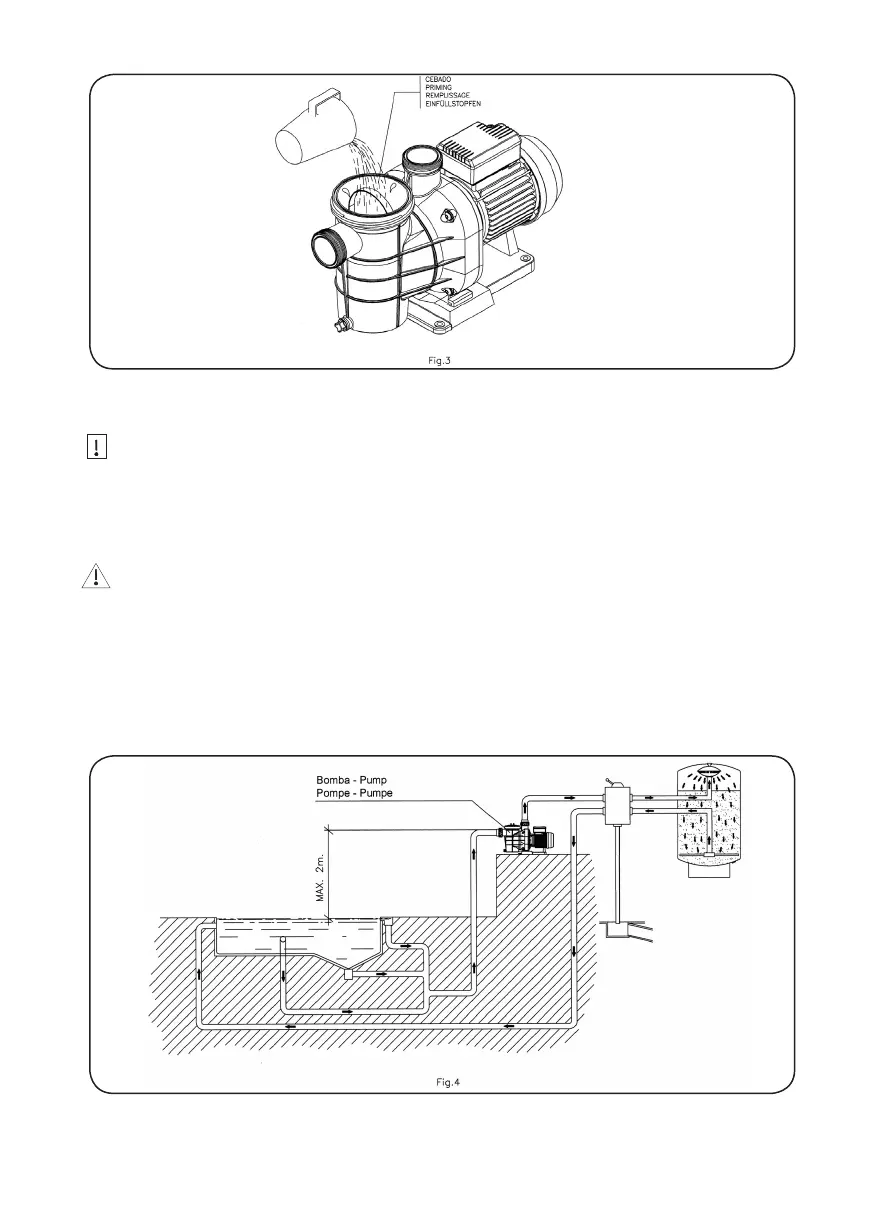

• Should it be necessary to install the pump above the water level, the difference in
height should not be more than 2 metres (see Fig. 4). Ensure that the suction tube
is as short as possible since a long tube increases suction time and facility load
loss.
• It should be ensured that the pump is free from possible ooding and it is given dry
ventilation.
SAFETY INDICATIONS
ALL THE ELECTRICAL INSTALLATIONS MUST COMPLY WITH STANDARD: EN
60335-2-41 “All 230 v electrical units must be installed at a minimum distance of 3,5
meters from the edge of the pool. In the case of a modication on the ltration system,
the manufacturer must be informed”.
