Design and function
3.1.2 Components on a ChillPAC (water-cooled condenser)

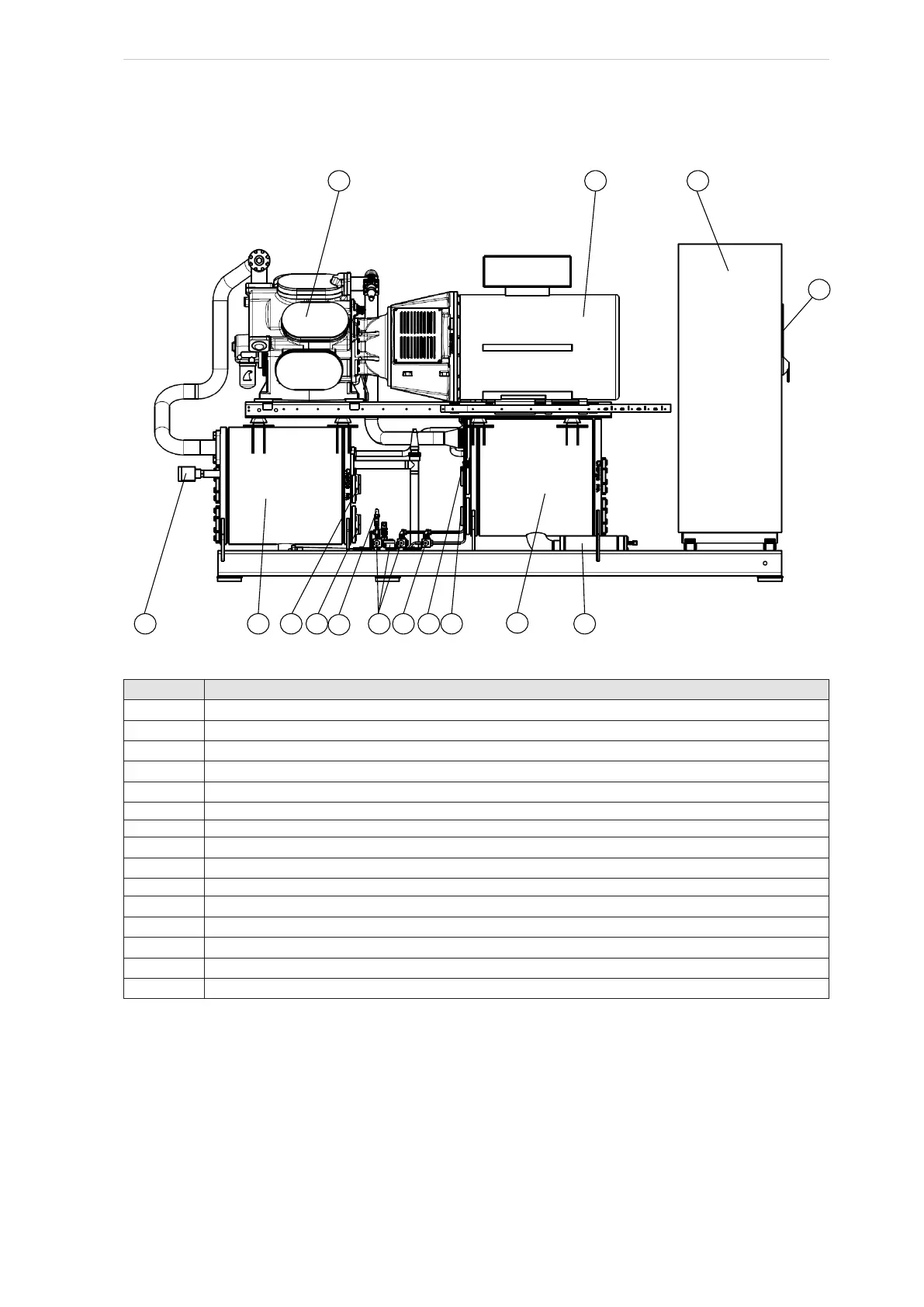

Fig. 13: ChillPAC Mk 3 with position numbers
Pos. no.
Component
1 Evaporator/Liquid separator
2
Condenser/Oil separator
3 Expansion valve
4 Inlet evaporator
5
Outlet evaporator
6 Inlet condenser
7
Outlet condenser
8 Compressor
9 UniSAB III controller and emergency stop (built into electrical panel - optional)
10 Motor
11 Oil recovery system (from evaporator)
12
Oil return system (from oil separator)
13 R717 charge valve
14 Electrical panel
15 High level alarm
115 5 4
13
11 12 7 6 3
2
10 148
