SABROE ChillPAC - Spare Parts List for CVUA 1201 Oil Recovery Pot

Operating manual - ChillPAC and LP ChillPAC Mk 3
56/68
010823 en 2021.06
Appendices
8.2 Spare parts list for CVUA 1201 oil recovery pot

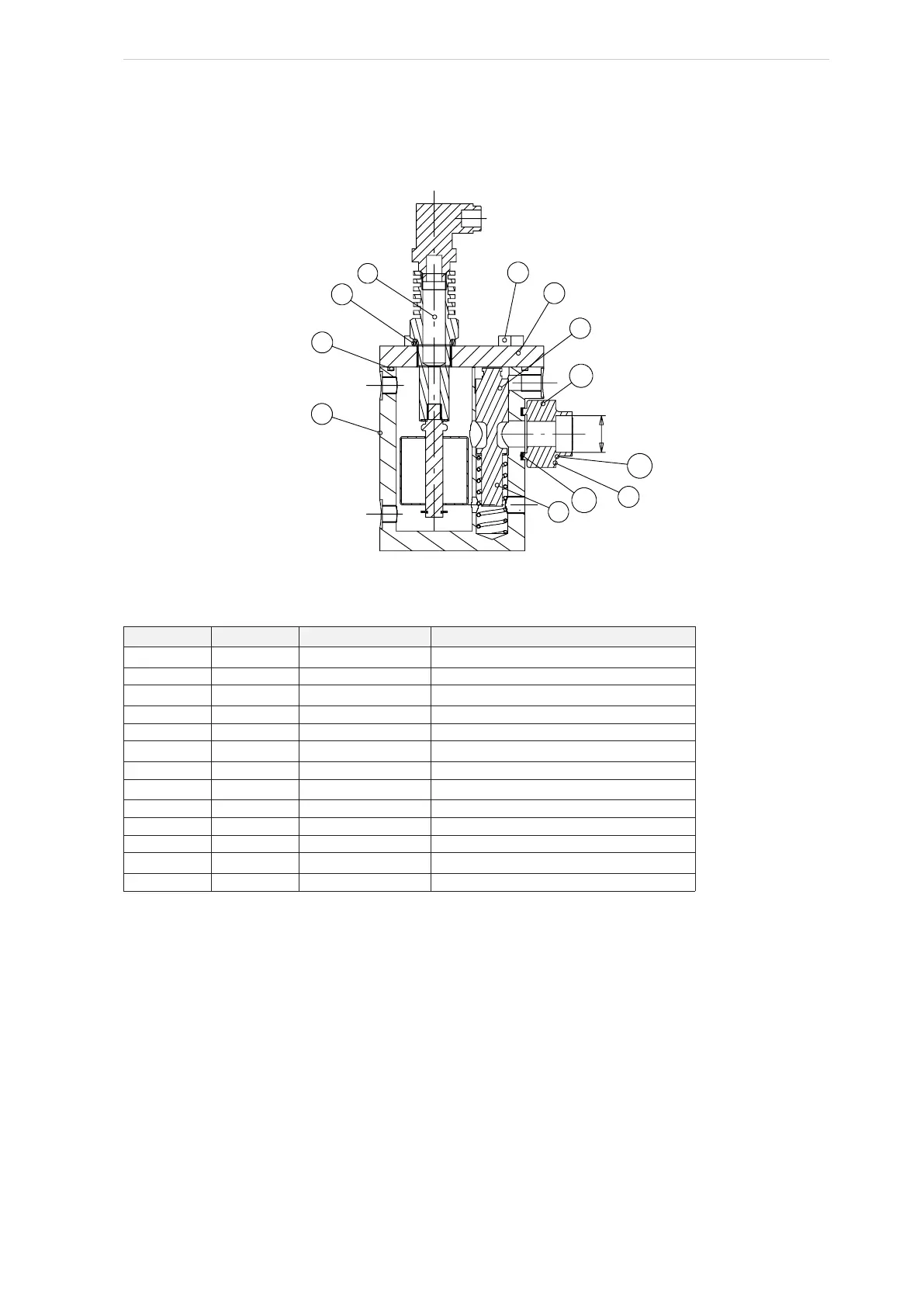

Fig. 26: Oil recovery pot
Pos. Pcs. Part no. Description
-
1 3247.128 Complete pot
1 1 3445.508 Float switch
2 1 1331.433 Seal ring
3 1 3413.038 Piston
4 1 3411.009
Oil reservoir
5
1 2144.049
Spring
6 1 3411.039
Cover
7
1 1331.571
O-ring
8 4 1425.018
Screw M12 x 30
9 2 1427.045/001 Threaded bar M14
10 2 1432.034 Nut M14
11 1 1344.365 Flange DN25
12 1 1336.029
Gasket
DN25
NO:3247--128
3
4
5
6
7
8
11
1
2
12
NO
NC
9
10
