Design and function
3.1.3 Components on an LP ChillPAC (external condenser)

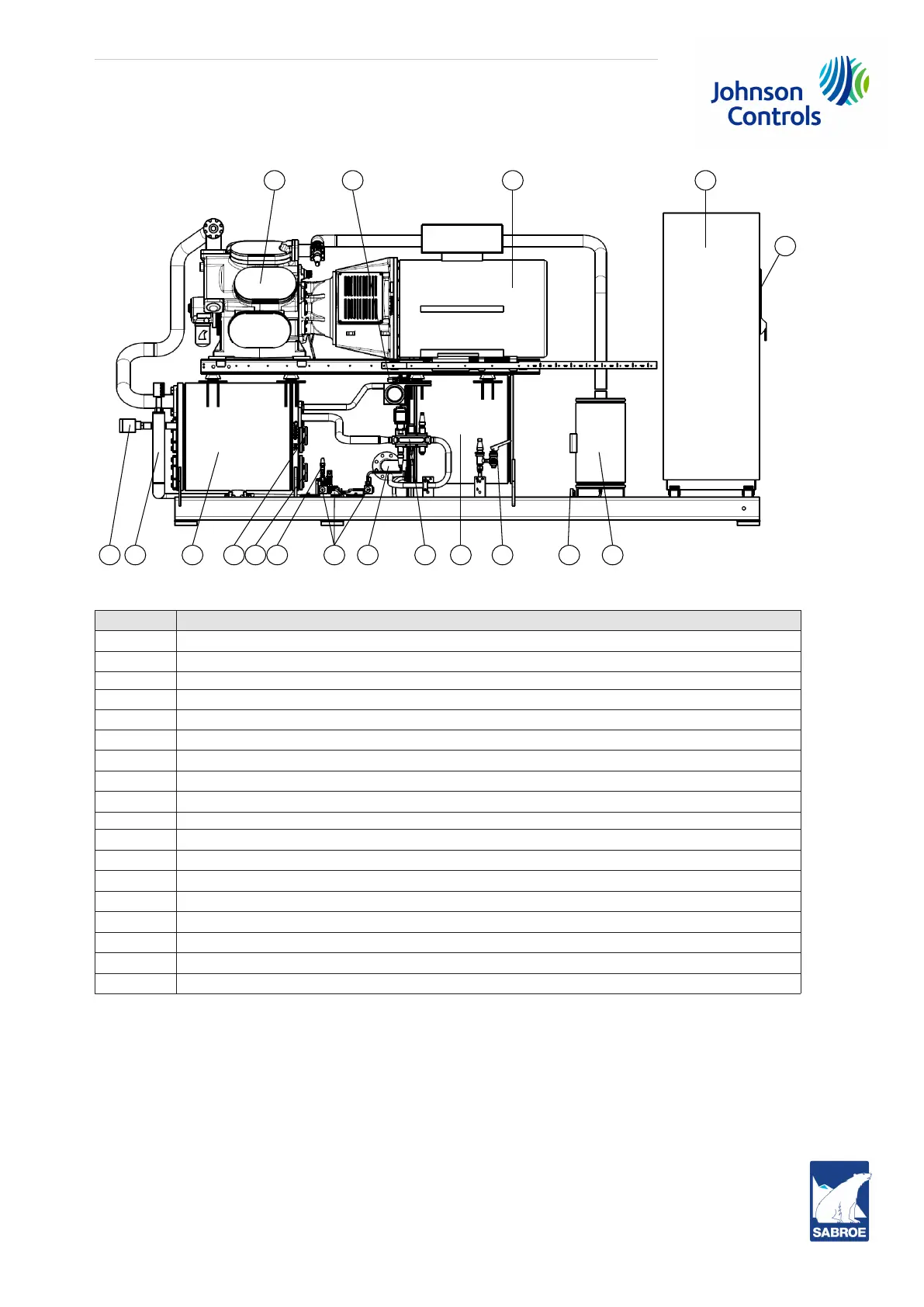

Fig. 14: LP ChillPAC Mk 3 with position numbers
Pos. no.
Component
1 Evaporator/Liquid separator
2
Oil separator
3 Receiver
4 Inlet evaporator
5
Outlet evaporator
6 Expansion valve
7
Liquid level column and level sensor
8
Compressor
9
UniSAB III controller and emergency stop (built into electrical panel - optional)
10 Motor
11
Oil recovery system (from evaporator)
12 Liquid inlet receiver
13 Equalizing receiver
14 Oil return system (from oil separator)
15 R717 charge valve
16
Drain valve (from receiver)
17 Electrical panel
18 High level alarm
18 7 1 5 4 15 11 12 6 3 16 14 2
8
13
10 17
9
