SABROE ChillPAC - Set-Up Guide - AKS 4100 280 MM for Ammonia Heat Pump Application

Operating manual - ChillPAC and LP ChillPAC Mk 3
58/68
010823 en 2021.06
Appendices
8.4 Set-up guide — AKS 4100 280 mm
for ammonia heat pump application
Set-up guide for AKS 4100 280 mm
Set-up and calibration of the AKS 4100 280 mm level sensor must be performed by competent person-
nel only.
The guide is in English only.
Warning!
Incorrect set-up may cause the compressor to break down.

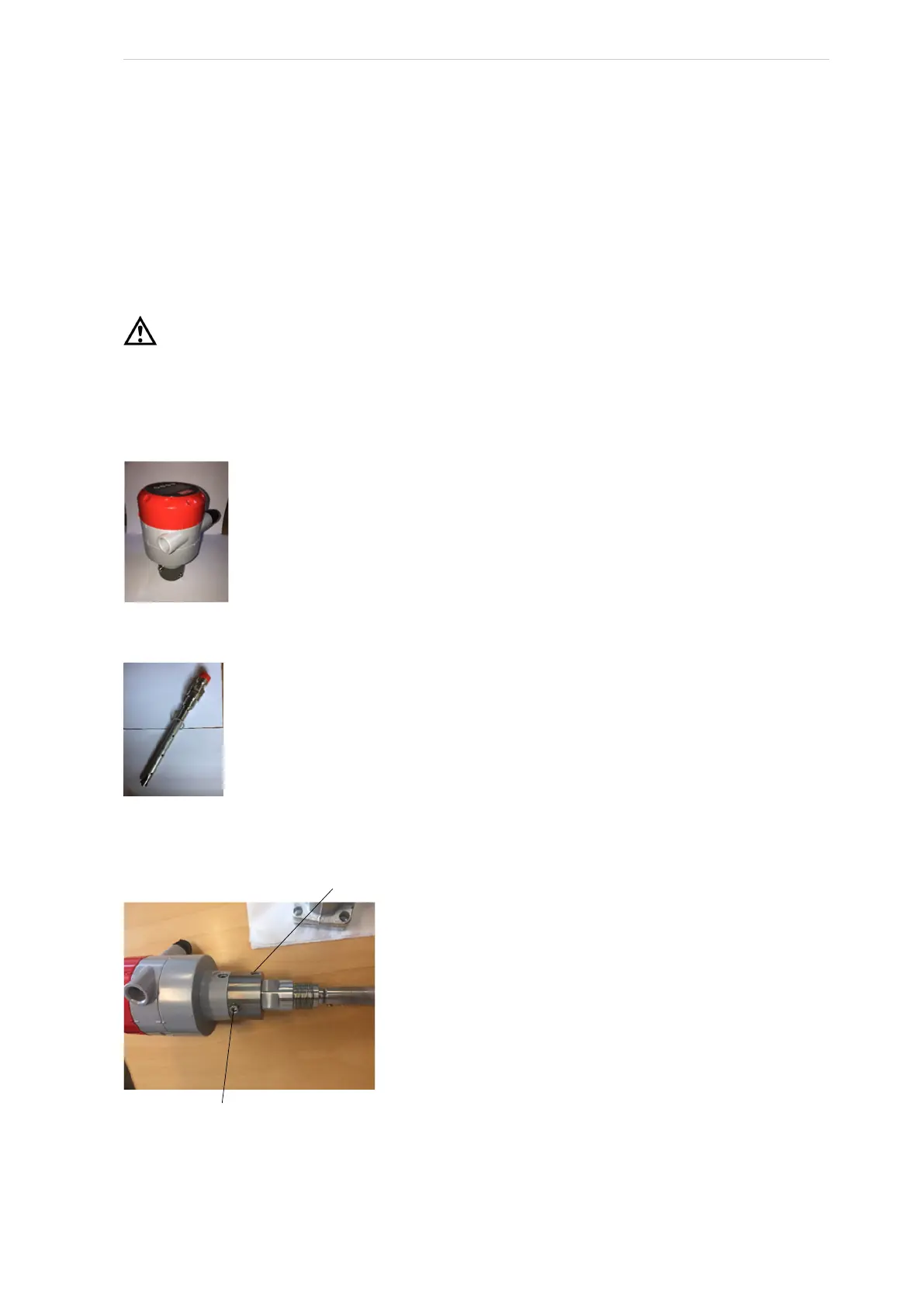

The AKS 4100 contains
- A signal converter with HMI display and meta glass solution
- A process connection with probe
When the process connection with probe is properly installed in the system, the HMI display and signal
converter should be mounted on the process connection.
Fig. 27
2
1
