Sachs SA 280A Repair Instructions

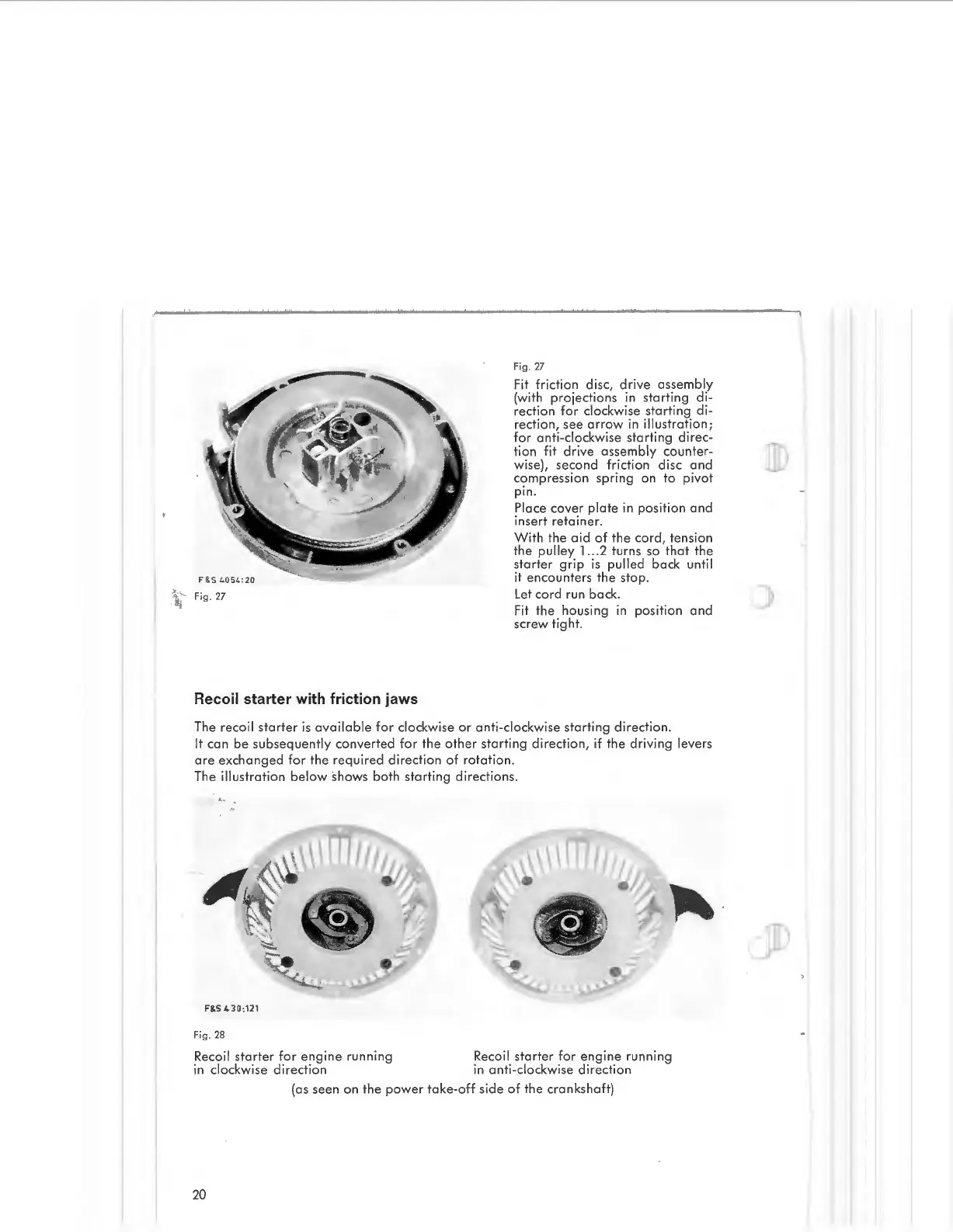

-~ Fig. 27
Recoil st arter with friction jaws
Fig. 27
Fit friction disc, drive assembly
(w i th proj ections in starting di-
rection for clock w i se starting di-
rection, see arrow in ill ustration;
for an ti-c loc kwis e star ting direc-
tion fit drive assembly coun te r-
wise), seco
nd friction disc and
compressi on s pr i ng on to pivot
pin .
Place
cover plate in position and
insert ret ainer.
With the a id of the cord, tension
the pulley 1 ... 2 turns so that the
s tarter gr ip is pul l ed back unt il
it encoun ters the stop .
Let cord run back.
Fit the h ousing in position and
s cr ew ti gh t.
The
recoil starter is availab le for clockwise or anti-clockwi se start ing direction .
It can be subsequently converted for the other s tartin g direction, if the dri v ing levers
are
exchanged f or the required directio n of r otation .
The
illu strat i on below shows both s ta r ting directions.
F&S 430, 121
Fi g. 28
Rec oil s tart er for eng in e runn ing
in cl oc kwi se direction
R
eco il s ta rt er for eng ine runnin g
in ant i-cl oc kwi se dir ectio n
(as seen
on the power ta ke- off side of the crankshaft)
20
