Sachs SA 280A Repair Instructions

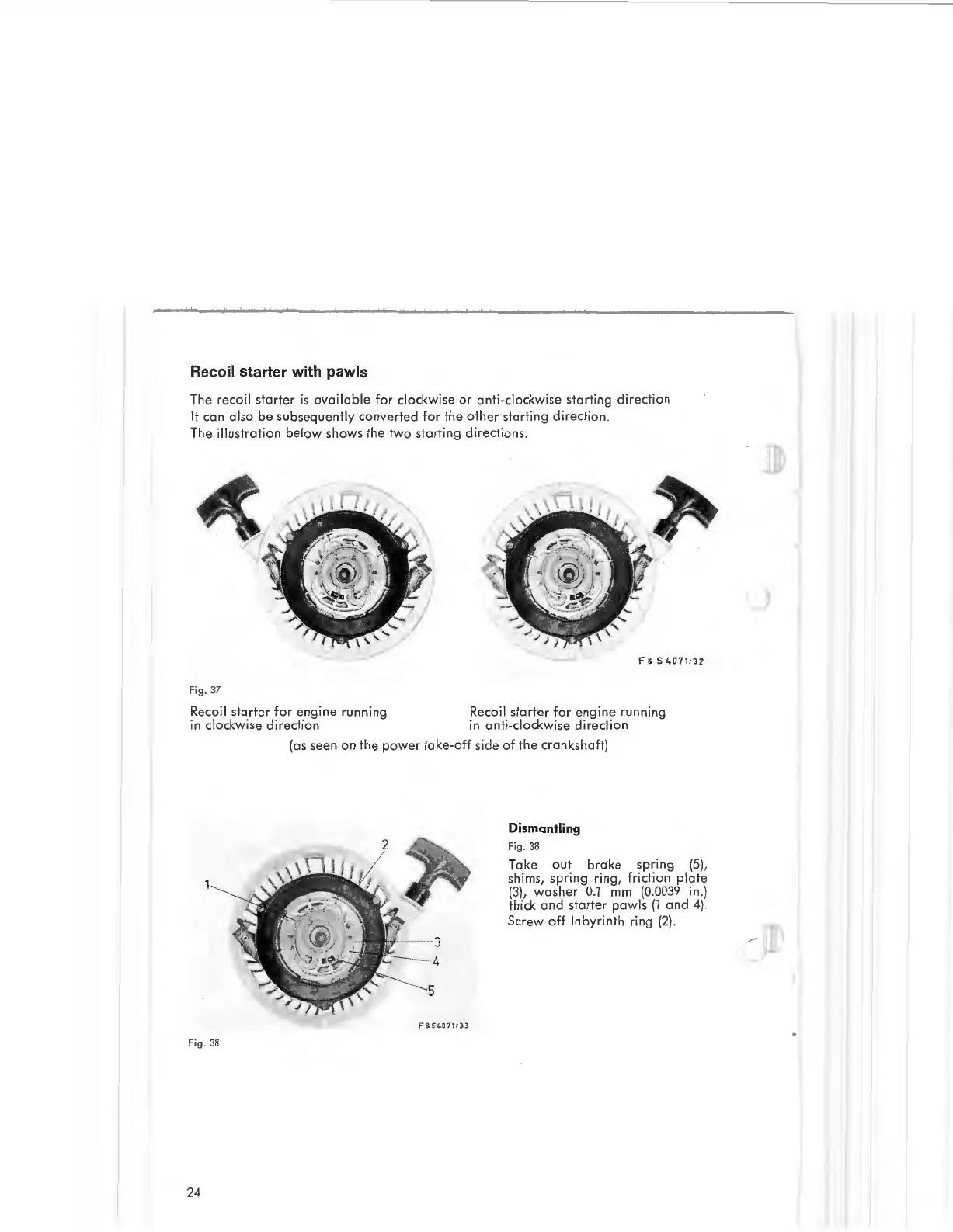

Recoil starter with pawls
The recoil starter is available for clockwise or ant i- cloc kwise starting direct ion
It con al so be subsequently con ve rt ed for the oth er sta rti ng dire ct ion.
The illustratio n below shows the two starting directions .
Fig. 37
Reco il starter for engine running
in clockwise direction
Recoil starter f or engine runnin g
in
anti - cloc kwise dir ec tion
(as see n on the po wer toke-o ff si de of the c ranks haft )
F& $407 1 :33
Fig. 38
24
Dismantling
Fig. 38
Toke out broke spring {5),
shims , spr ing rin g, friction plate
(3), washer 0.1 mm (0 .0039 in .)
thick and starter paw ls (1 and 4) .
Screw off l abyr inth ri ng (2).
