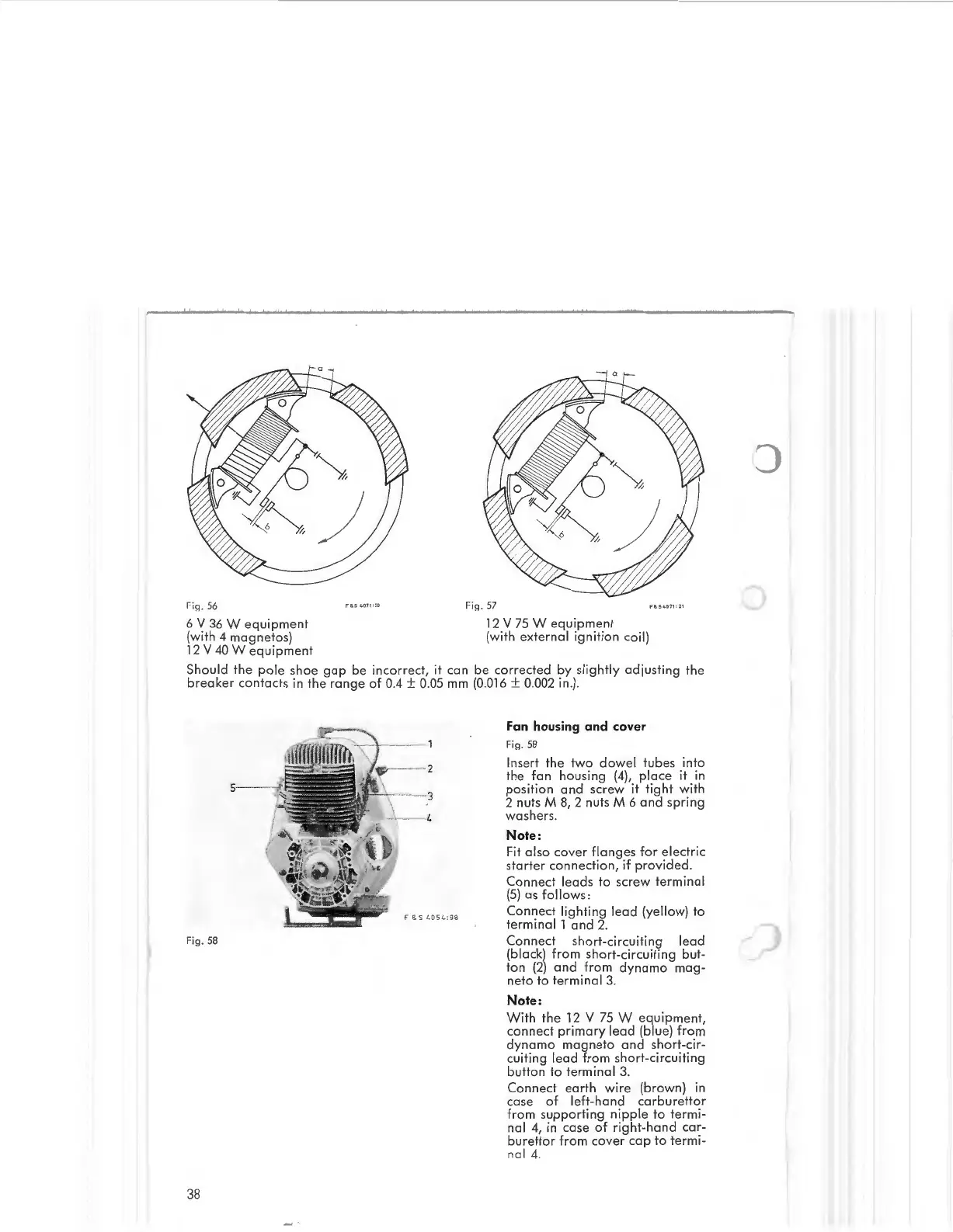

Sachs SA 280A - Page 40

FiR. 56
6 V 36 W equipment
(with 4 magn etos)
12 V 40 W equipment
Fis:J . 57 F& S 40 71 :2 1
12 V 75 W equ ip ment
(with external igniti on coil)
Shoul d the pole s hoe gap be in cor r ect , it can be cor r ec t ed by slightly adjusti ng t he
br eaker co ntacts in the rang e of 0.4 ± 0.05 mm (0 .016 ± 0.002 in.).
Fi g. 58
38
Fan housi ng and cover
FiR. 58
I nsert the two dow el tub es in to
the fan hou sing (4) , plac e it in
po sition and s cr ew it tight with
2 nut s M 8, 2 nut s M 6 a nd spring
washer s.
Note:
Fit al so cove r fl anges for ele ctr ic
sta r te r con n ect ion , if prov ided.
Connect leads to scre w terminal
(5) as follows:
Co nn ect li ghtin g l ea d (y e ll ow) to
te rminal1 and 2.
Co nn ect sho rt-circuiting lead
(black) from s hort -circuiting but -
ton (2 ) and fro m dynamo mag-
neto to ter mina l 3.
Note:
With the 12 V 75 W equipment,
connect primar y l ead (blue) fro m
dyn
amo m agn eto a nd s hort -cir-
cuiting l
ead from sho rt-circuiting
b
utton to te rmina l 3.
Co nn ect ea rth wire (brown} in
ca
se of le ft-hand carb u rettor
fro m s up po rting nippl e to t er m i-
n al 4, in c ase of righ t-hand car-
bur ett or fro m cove r cap to termi -
na l 4.
