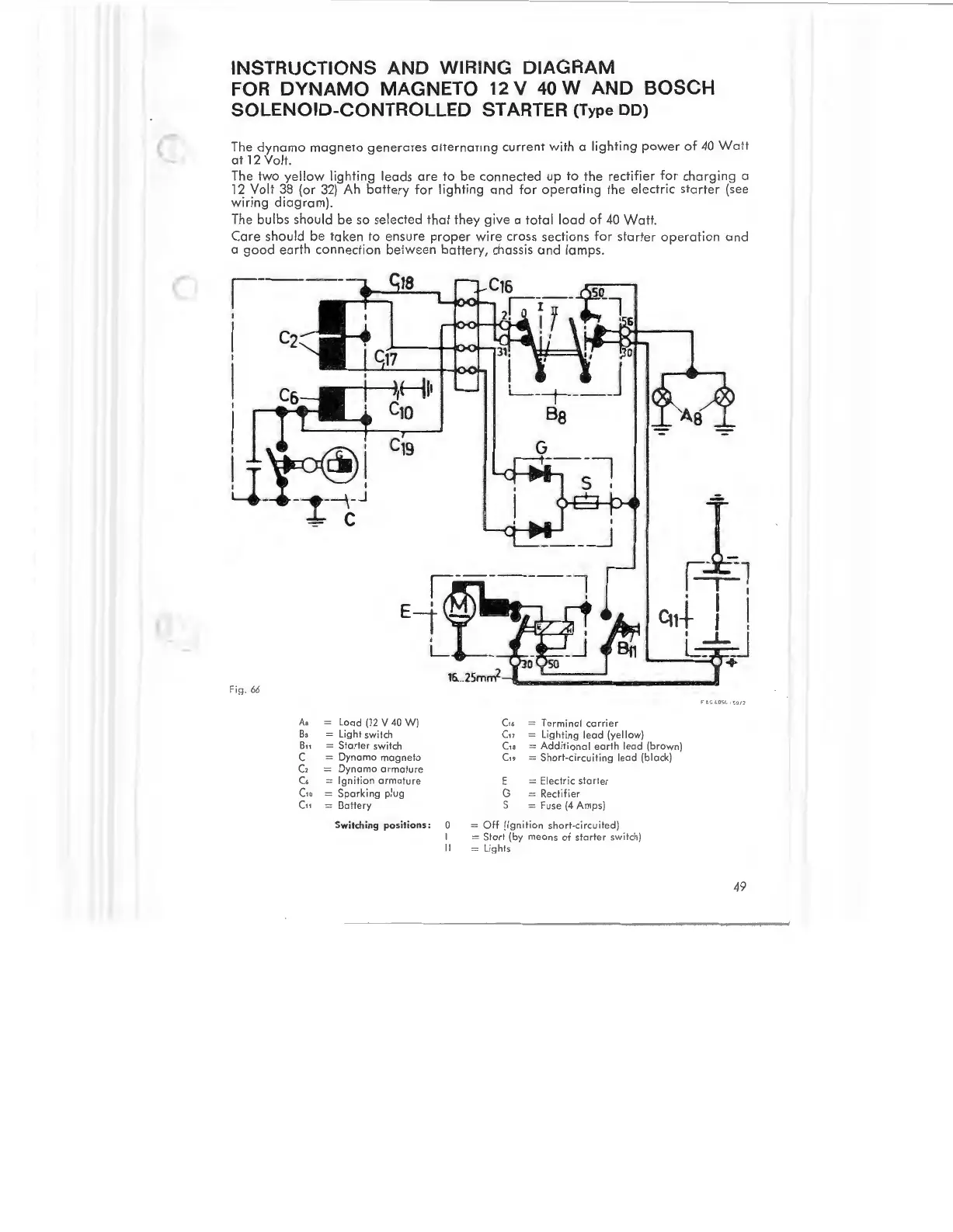

INSTRUC TI ONS AND WIRING DIAGRAM
FOR
DYNAMO MAGNETO 12 V 40 W AND BOSC H
SOLENOID-CON TROLLED STA RTE R (Type DD)
The dynamo magneTo generares alTernaTing curre nt with a lighti ng po wer of 40 Watt
at 12 Volt .
The
two yellow lighting leads are to be connected up to the rectifier for charging a
12
Volt 38 (or 32) Ah battery for l ighting and for operating the electric starter (see
wiring diagram).
The bu lbs should be so selected that they give a total l oad of 40 Watt.
Care should be taken to ensure proper wire cross sections for starter operation and
a good earth co nn ection beiween battery, chassis and lamps .
FiR . 66
A, = L oad (12 V 40 W)
B, = Light switch
B,, = Sta rt e r switch
C = Dynamo magneto
C2 = Dyn amo armatur e
(, = Ignition armatur e
Co = Sparking p lu g
( , =
13att ery
Swit ch ing positi ons: 0
I
II
(,, = Termina l carrier
Cn = L igh ting le ad (yel low )
Cu = Additio nal e arth lead (brown )
(,. = Short - circ uiting l ea d (b lack)
E = Eleclric st arl er
G = R ecl if ier
S = Fus e (4 Amps )
=
Off ( Ignit ion sh ort-c ircuit ed)
=
Start (by means of s tart er swilch )
= LiRhts
49
