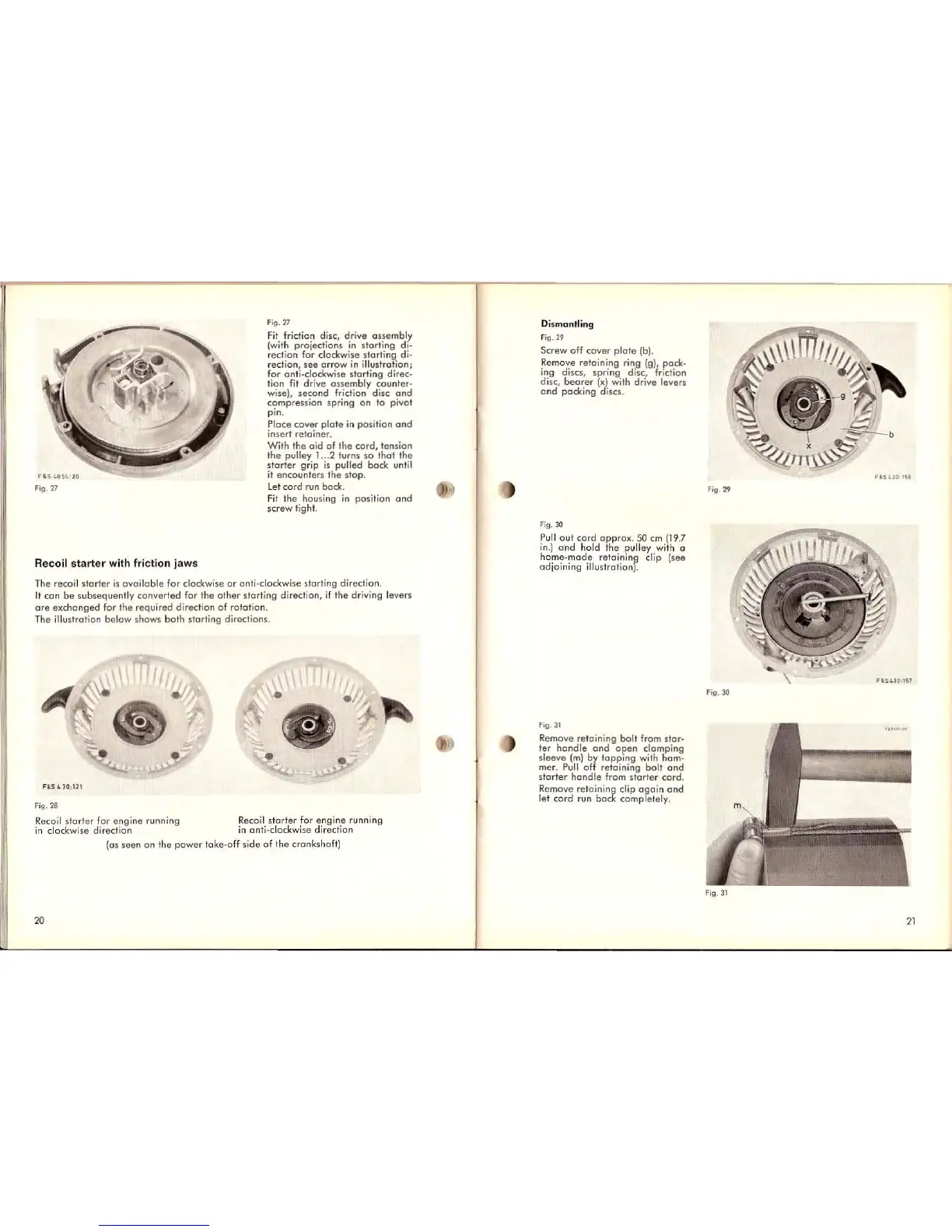

Fig.
27
Recoil
starter
with
friction
jaws
Fig.
27
Fit
friction disc, drive assembly
(with proiections
in
starting
dI-
rection for clockwise starting di-
rection, see
arrow
in
illustration;
for
anti-clockwise
sta
r
ti
ng direc-
tion fit drive assembly counter-
wise), second friction disc
and
compression spring on to pivot
pin.
Pl
ace
cov
er
plate
in
position
and
insert retainer.
With the
aid
of
the cord, tension
the pulley 1 ... 2 turns so that the
starter grip
is
pulled bock unt
il
it encounters the stop.
Let
cord run back.
Fit
the housing
in
position
and
screw tight.
The recoil
starter
is
available
for clockwise
or
anti-clockwise starting direction.
It
can be subsequently converted for the other starting direction,
if
the driving levers
are
exchanged for the required direction
of
rotation.
The illustration below shows both start
ing
directions.
F&54l0
,
121
Fip.28
Recoil starter for engine running
in
clockwise direction
, ,
-
•
Recoi l
starter
f
er
engine running
in
enli-clockwise direction
(as seen on
the
power
lake-off side
of
the crankshaft)
20
Dismontling
Fig.
29
Screw off cover
plete
(b).
Remove retaining ring (g),
paek-
ing discs, spring disc, friction
disc,
bearer
(xl with drive levers
and
pocking discs.
Fig.
30
Pu
ll
out
cord
opprOK
.
50
em
(19.7
in
.)
and
hold the pulley with a
hom
e-mode
retaining
cl
ip (see
ad
ioining illustration).
Fi
g.
31
Remove retaining bolt from star-
ter
handle
and
open
cl
am
ping
sleeve
(m)
br
tappi
ng with ham-
mer.
Pull
of
retaining bolt
and
starter handle from slarter cord.
Remove retaining
clip
again
and
lei cord run bock completely.
Fig.
2'1
\
Fig .
30
21
