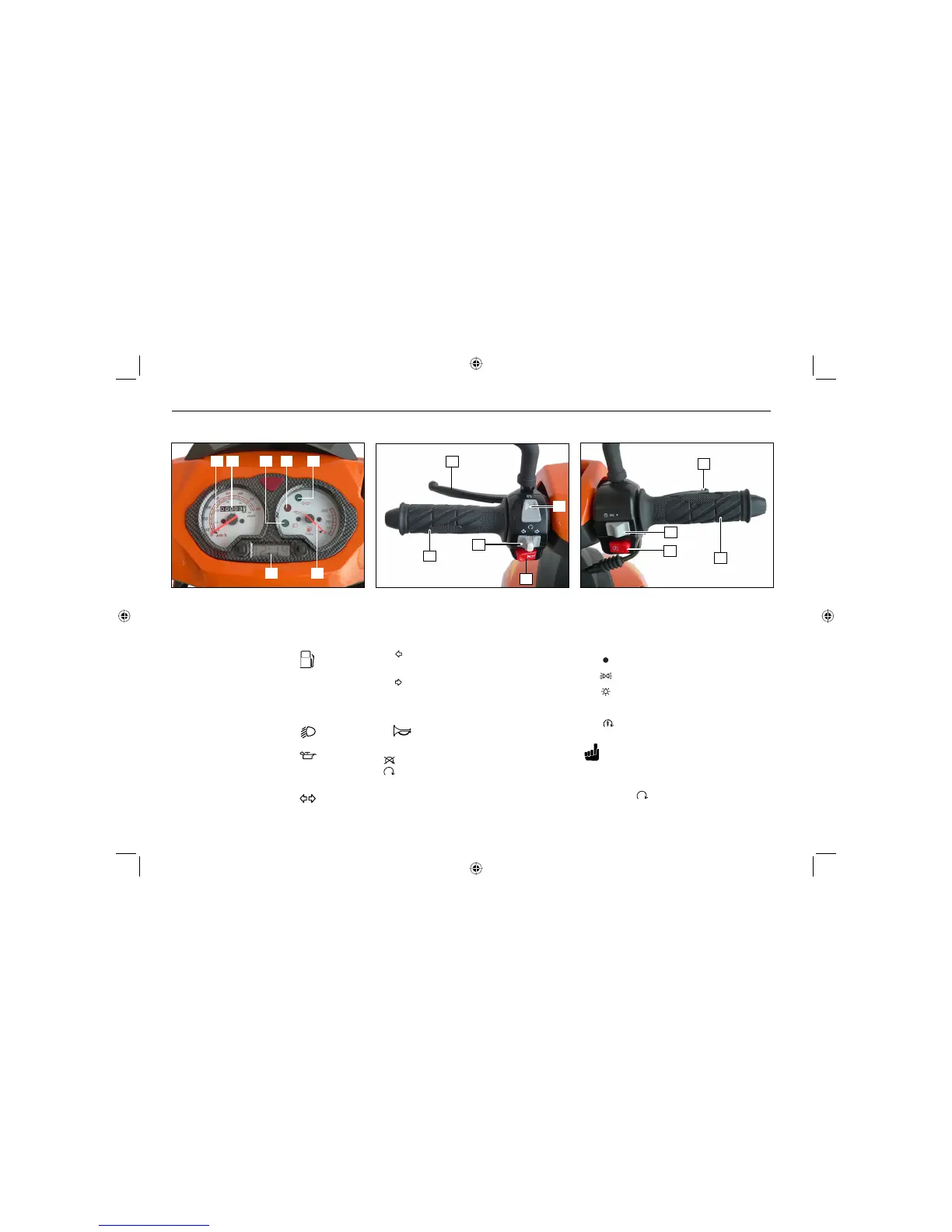

OVERVIEW AND OPERATION
Handlebar instrument, left
Handlebar instrument, right
Cockpit
6 Handbrake lever for front brake
7 Throttle
8 Light switch
Off
Position light
Position light and driving light
low beam
9
Starter button
CAUTION
The EMERGENCY OFF switch (5) is a
safe ty device and should normally be
in position
.
1 Fixed grip
2 Handbrake lever for rear brake
3 Direction-indicator switch
Switch to the left:
Left indicator on
Switch to the right:
Right indicator on
Push button for switch off
4
Push-button: horn
5 Emergency off switch
The engine does not start
The engine starts
Instruments
1 Speedometer km/h / mph
2 Odometer km
3 Fuel indicator
4 Digital clock
Instrument lights
5 Lown beam indicator
green
6
Oil level - two stroke oil
red
indicator
7
Left and right direction
indicator
green
