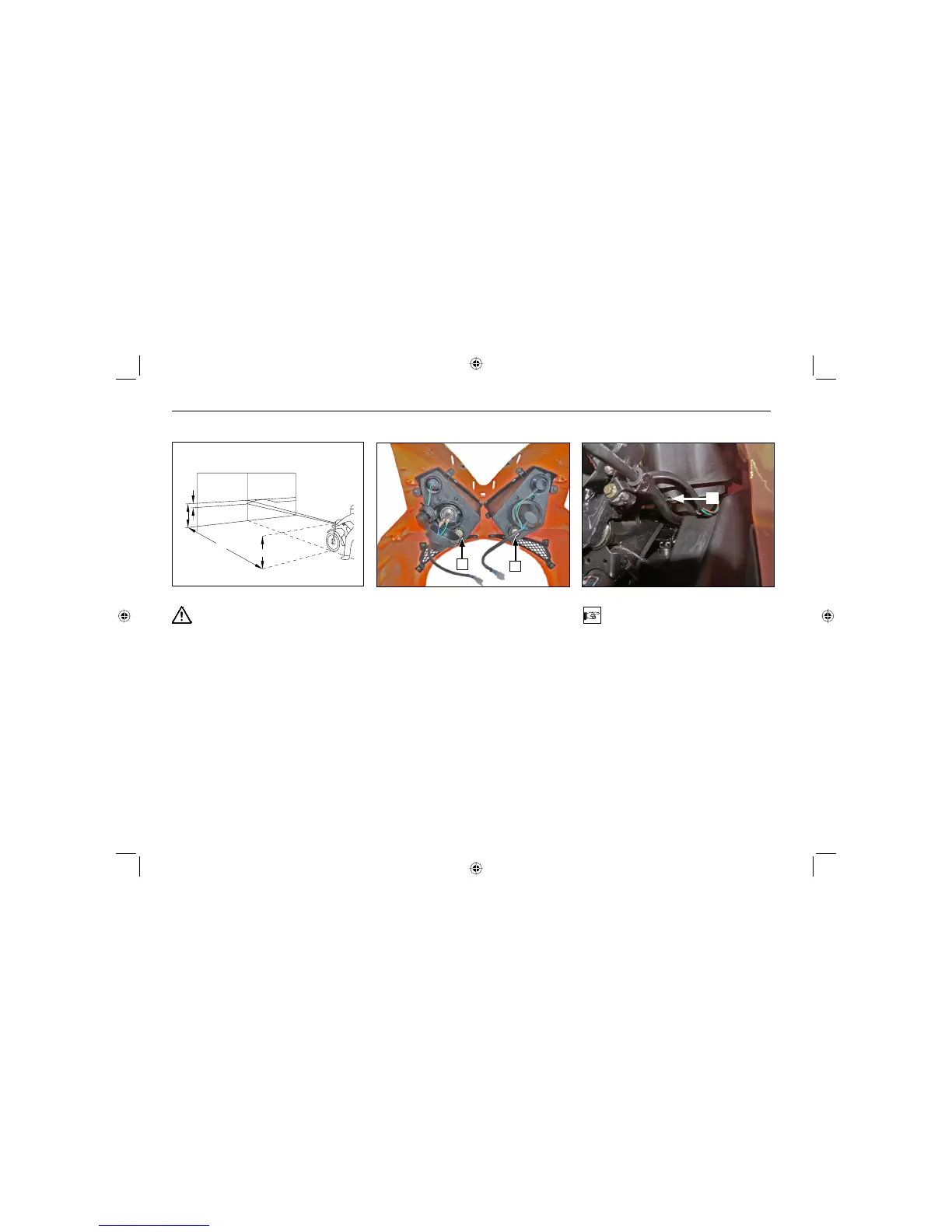

Adjusting the headlamps
NOTE
If you have problems adjusting the head-
lamps, see a specialised Sachs dealer.
An incorrect adjustment is punishable by
law. Remember, you are responsible for
the correct adjustment of the motorbike’s
headlamp.
NOTES ON MAINTENANCE
- Start the motorcycle and run the en-
gine.
- Activate the dipped beam.
- Use a screwdriver to the adjust the
screws (1) for the vertical and horizontal
angle of the illuminated surface area
of the road top for the left and right
headlamp.
Check the headlamps
WARNING
Do not run the engine in an enclosed
space (risk of asphyxiation).
Position the motorcycle on a level fl oor 5
m (measured from the headlamp) from a
light coloured wall with a rider seated on
the motorcycle and the tyres fi lled at the
correct pressure.
- Measure the distance from the fl oor to
the centre of the headlamp and mark
the height on the wall with a cross. Draw
a second cross 12 cm beneath the fi rst
cross.
