CapaciTorr D50, CapaciTorr D100, CapaciTorr D200,
NexTorr D100-5, NexTorr D200-5, NexTorr HV 100, NexTorr HV 200,
NexTorr Z100, NexTorr Z200, CapaciTorr Z100, CapaciTorr Z200,

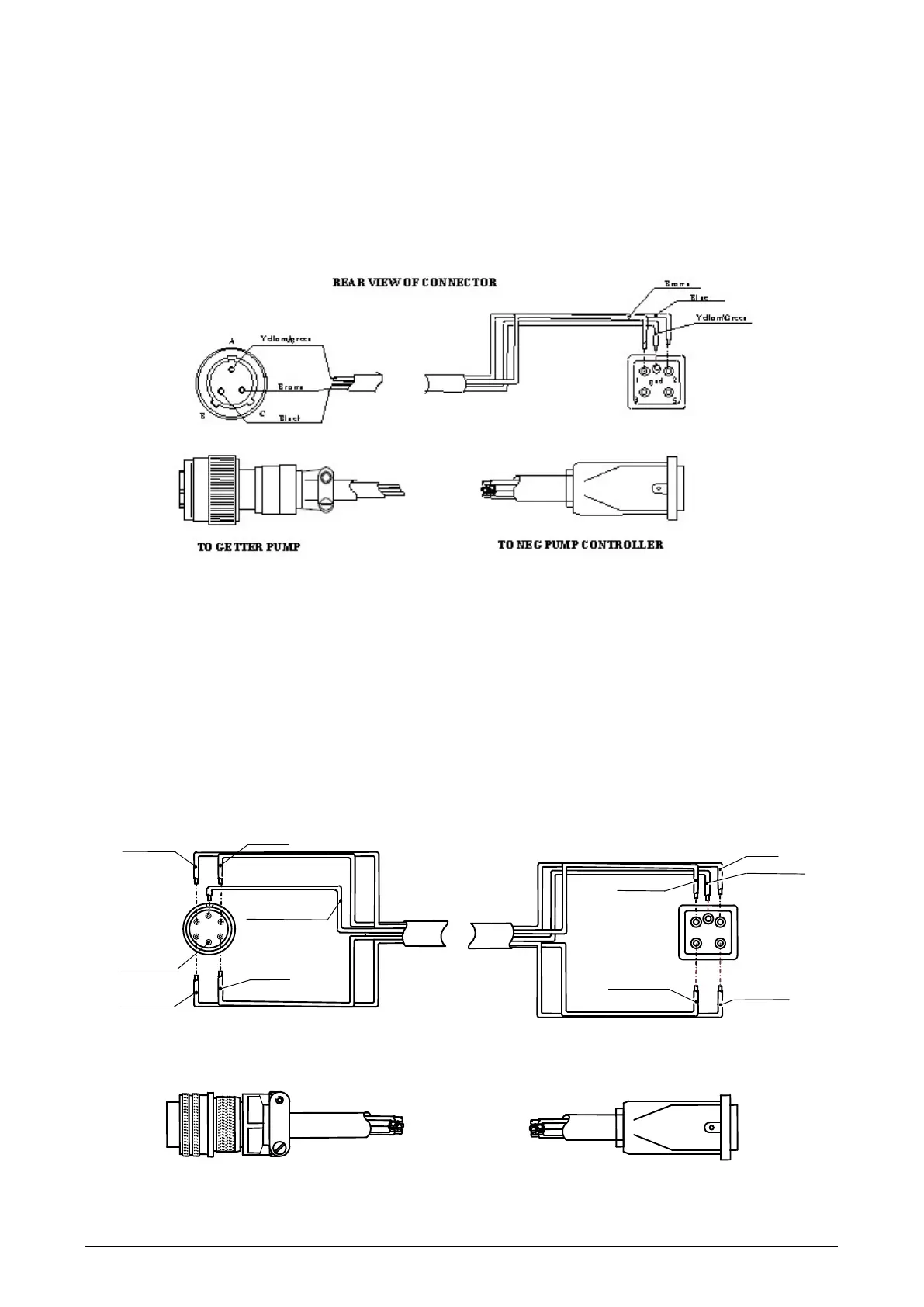

For these pumps which are equipped with a dedicated electrical connector, use the output supply
cable shown in figure:
NexTorr D300-5, NexTorr D500-5, NexTorr HV 300, NexTorr Z300
NexTorr D500-StarCell
For these pumps which are equipped with a dedicated electrical connector, use the output supply
cable shown in figure:
F
C
D
A
E
B
BLUE
BROWN
ALUMEL
CHROMEL
YELLOW/GREEN
2
1 gnd
3
5
YELLOW/GREEN
BLUE
BROWN
ALUMEL
CHROMEL
TO NEG PUMP
CONTROLLER
TO GETTER PUMP
REAR VIEW OF CONNECTORS
NOT USED
