USER MANUAL - SIP POWER ION PUMP CONTROLLER
M.HIST.0109.23
Rev.1
Page
11
of
62

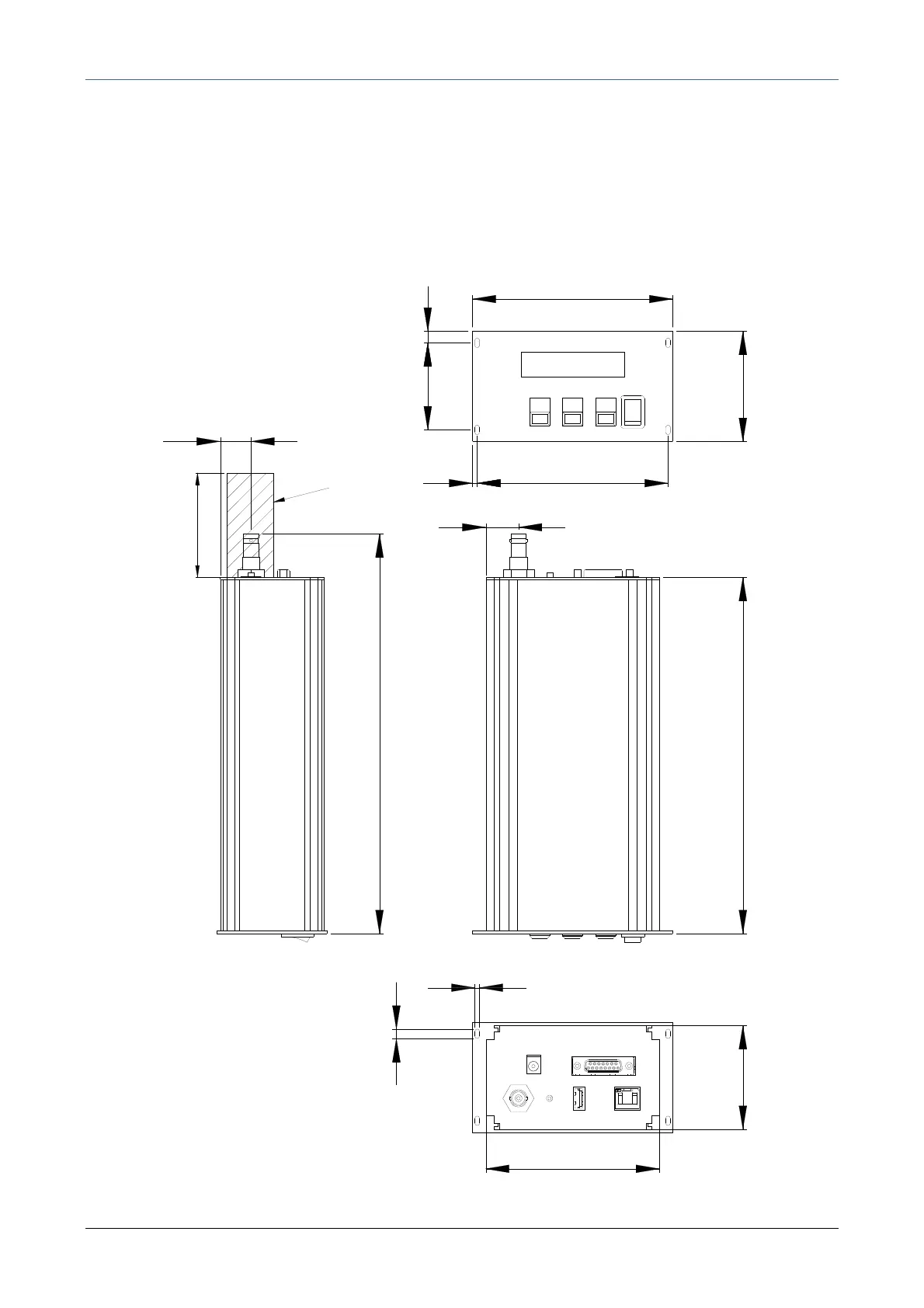

2.9.
Instrument Dimensions and Weight
SIP POWER dimensio
ns (all configurations)
Subrack 3U 14 TE
SIP POWER weight
(all configurati
ons)
abo
ut 1 kg
220V to 24Vdc power supply unit weighs about 300g and its dimensions are about 12x5x3 cm.
MINIMUM SPACE
FOR ION
PUMP CABLE
228,5
70,8
256,5
128,5
90
7,5
55,8
3
122,5
111,5
21
20
66,5
3
6
10
12
Table of Contents
Default Chapter
3
Table of Contents
3
1 Application
5
2 Introduction
5
General Description
5
Remote and Multi Control
5
Simplified Block Scheme
7
Scheme of the Instrument Connection
7
The Front Panel of the Unit
8
The Rear Panel of the Unit
8
The Front Panel of the Unit with Leds and RS485 Interface
10
Supplied Accessories
10
Instrument Dimensions and Weight
11
3 Installation
12
Mounting Operation
12
Electrical Connections
14
4 Operations
15
Start Operations
15
Operating IP Supply
15
Comparators with Simple Threshold or Hysteresis
16
Operating IP in Case of Main Line Interruption
17
5 Display and Multiple Functions of Keys
18
Display Information
18
Multifunctional Keys
20
6 SETTINGS and SERVICE MODE MENU
22
Vout Set Point
22
Vout Ramp Intv
22
Conversion Rate
22
SW1 Mode and SW1 Thr
22
SW2 Mode and SW2 Min Thr. and SW2 Max Thr
22
SW3 Mode and SW3 Min Thr. and SW3 Max Thr
23
IP Address, IP Netmask and MAC Address
23
Keepalive
23
Backlight Sleep
23
Active Time
23
Int. Temperature
23
Card Type
23
Hw. Rev. and Sw. Ver
24
Serial Number
24
7 Abnormal Situation and Alarm Notification
25
Interlock
25
Safe
25
Arcing
25
Over Current
25
Over Temperature
25
Input Voltage
26
Output Over-Voltage
26
Communication
26
8 The Output Connector Function
27
Pin Layout of IN/OUT Interface Connector
27
Analog Output
28
RS485 Interface
29
