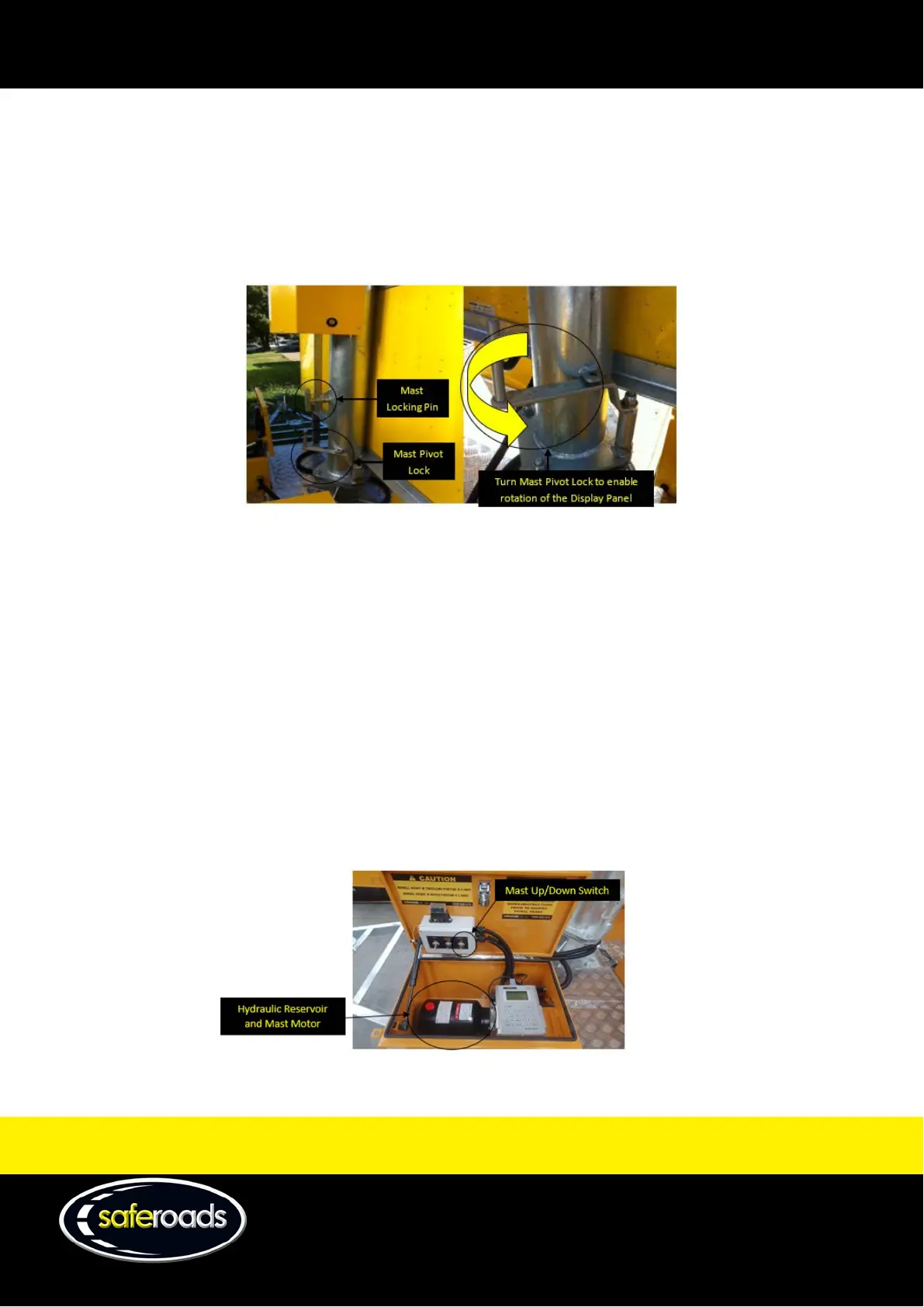

Mast Pivot Lock
The Mast Pivot Lock is located at the bottom of the mast shaft. It is used to unseat the mast to enable the Display
Panel to be pivoted in a 360-degree movement for positioning it to the necessary direction.
To pivot the mast, simply rotate the Mast Pivot Lock 90 degrees to unlatch the locking mechanism and rotate the
mast to the desired position.
To prevent the mast rotating undesirably, ensure the Mast Locking Pin is secure back in its seated position when
finished rotating the display and when transporting the board.
Figure 30
Mast Up/Down Switch
The Mast Up/Down Switch is located in the front passenger side toolbox to the right of the Solar Panel Tilt Switch.
It is used to operate the Mast to increase or decrease the height of the Display Panel.
To operate the Mast Up/Down Switch, the VMS Display Switch must be in the “ON” position. Engage the switch
into either the “UP” or “DOWN” position to extend or retract the mast respectively.
After extending or retracting the mast, place the Mast Up/Down Switch back to its neutral position to prevent
overdriving the motor.
Hydraulic Reservoir and Mast Motor
The Hydraulic Reservoir and Mast Motor are located at the bottom of the rear driver’s side toolbox and is
required to pump hydraulic fluid used to raise and lower the mast.
