Motherboard (CPU)
The Motherboard is located on the right hand side of the LED display and is essentially the ‘brains’ of the VMS unit
as it controls what is viewed on the Display Panel, distributes power to the board and connects directly with the
GPS antenna and the radar (where fitted).

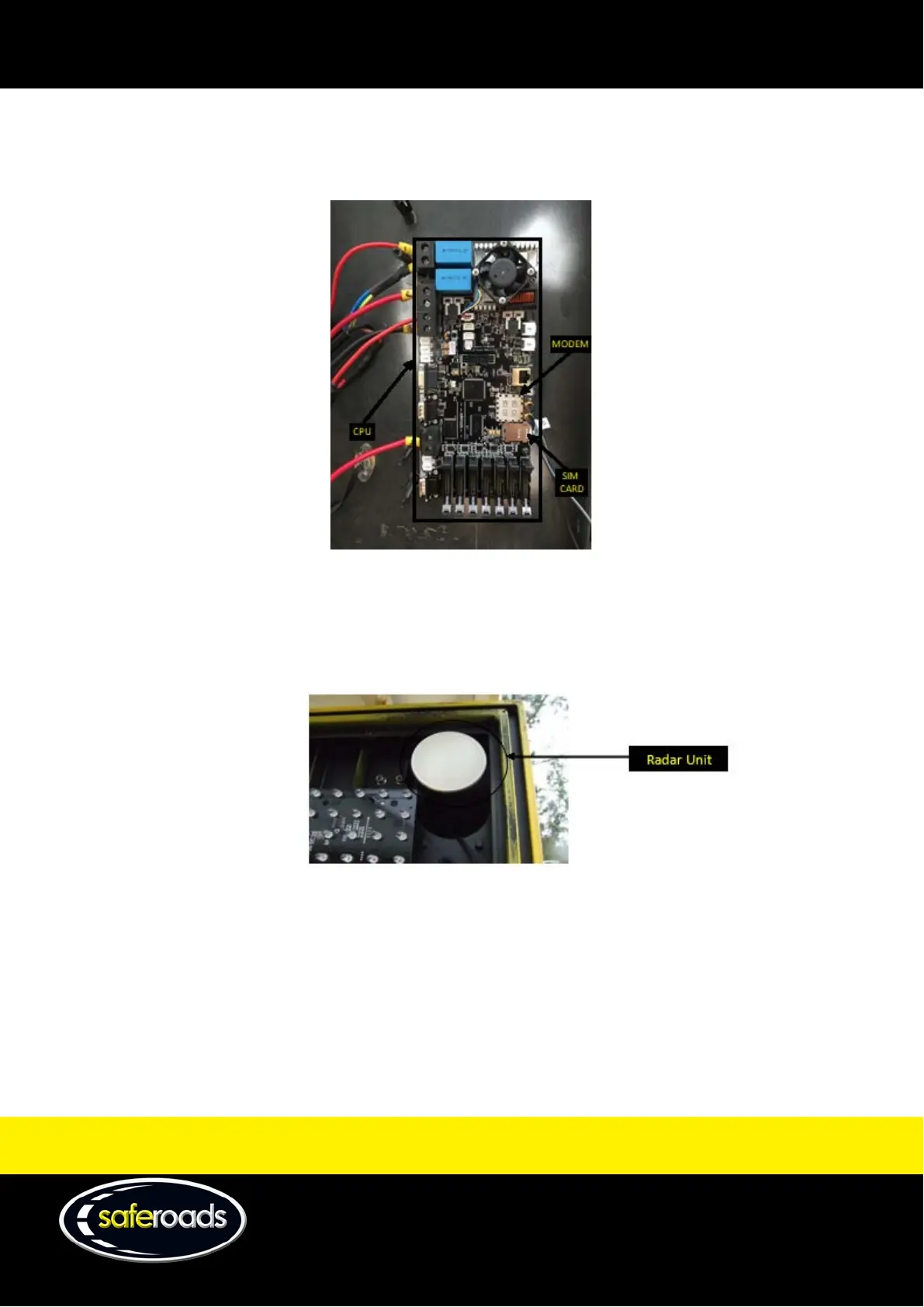

Figure 41
Radar (where fitted)
The Radar Unit is located on the top right-hand corner of the Display Panel Case. It tracks and stores the speed of
vehicles approaching the VMS board up to 100m away. It is controlled from the Zone VMS online management
system.
