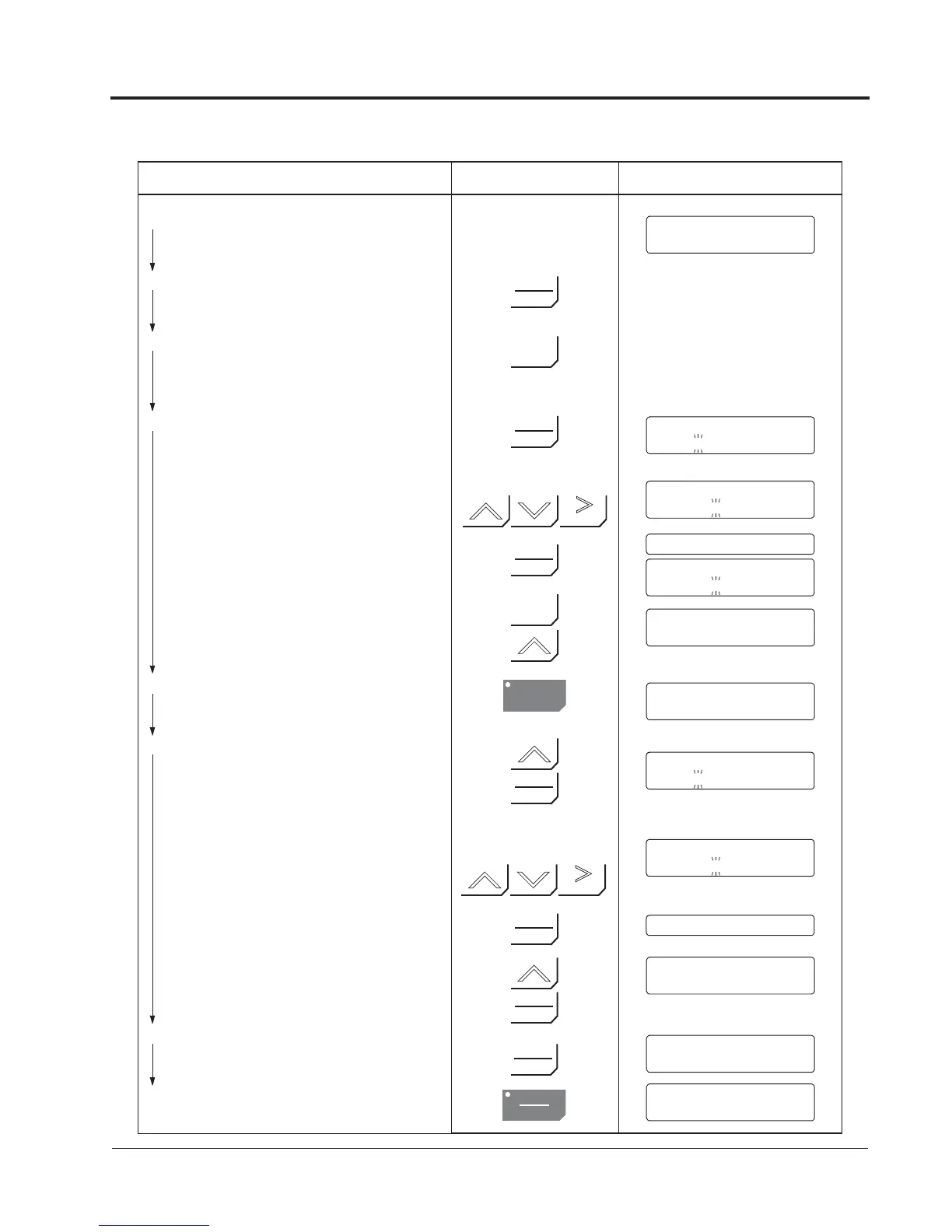

Typical Operation Example by Digital Operator
Description Key Sequence Digital Operator Display
cPower ON
·Displays frequency reference value.
Operation Condition Setting
·Select LOCAL mode.
dForward Jog Run (6Hz)
·JOG run procedure
(Runs while depressing JOG key.)
eFrequency Setting
·Change frequency reference value. Digit to
be changed blinks.
·Write-in set value.
·Select output frequency monitor display.
fForward Run
·Forward run (15Hz) Run & FWD LEDs light.
gFrequency Reference Value Change
(15~60Hz)
·Select frequency reference value display
·Change set value.
·Write-in set value.
·Select output frequency monitor display.
hReverse Run
·Select reverse run. REV LED lights.
iStop
·Decelerates to stop. Stop LED lights.
LOCAL
REMOTE
JOG
RUN
ESC
Change the value
Depress twice.
STOP
RESET
DATA
ENTER
RESET
FWD
REV
by depressing
DATA
ENTER
DATA
ENTER
Change the value
RESET
by depressing
DATA
ENTER
DATA
ENTER
Frequency Ref
REMOTE LED (SEQ, REF) OFF
U1-01 = 0.00 Hz
Frequency Ref
0 00.00 Hz
Frequency Ref
01 5 .00 Hz
Entry Accepted
Output Freq
U1-02 = 0.00 Hz
Output Freq
U1-02 = 15.00 Hz
Frequency Ref
0 15.00 Hz
Frequency Ref
06 0 .00 Hz
Entry Accepted
Output Freq
U1-02 = 60.00 Hz
Output Freq
U1-02 = -60.00 Hz
Output Freq
U1-02 = 0.00 Hz
Frequency Ref
01 5 .00 Hz
Chapter 2 - Operation
Trial Operation
