2.2 DIGITAL OPERATOR DISPLAY
All functions of the VG5 are accessed using the digital operator. Below are descriptions of the display
and keypad sections.
LOCAL
REMOTE
MENU
DIGITAL OPERATOR
JVOP-130
ESC
DATA
ENTER
JOG
FWD
REV
RESET
RUN STOP
DRIVE FWD REV REMOTE
REFSEQ
U

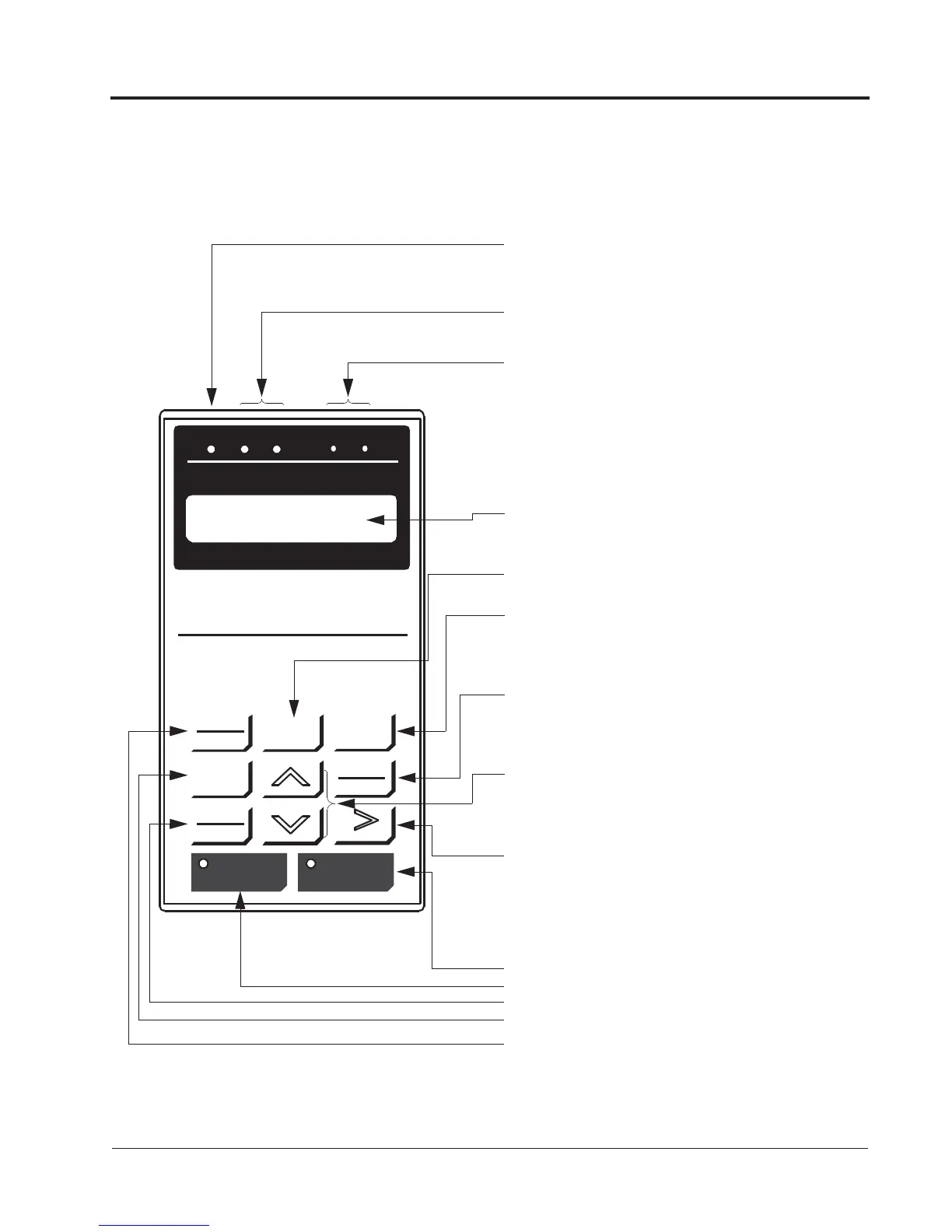

Figure 17 Digital Operator Display at Power-up
Mode Indicator LEDs
Drive Mode LED
Illuminates when selecting drive mode (operation via external
terminals is possible).
OFF when selecting any other mode.
Rotation Direction LEDs
FWD: Illuminates at forward command.
REV: Illuminates at reverse command.
Remote Mode LEDs
Illuminates when selecting input mode from the control circuit
terminal or serial communication.
SEQ: Illuminates when selecting run command from the con-
trol circuit terminal or serial communication.
REF: Illuminates when selecting frequency reference from the
control circuit terminals 13, 14, or 16, or serial communi-
cation.
Display
Displays set values of parameters or monitoring values such
as output frequency and current (2 lines x 16 characters).
Menu Key
Displays the main menu for mode selection.
Escape Key
Returns display to the previous status, before[DATA/ENTER]
key was depressed. Returns menu to previous layer (i.e. func-
tion, group, mode).
Data/Enter Key
Selects mode, group, function or parameter. Displays each
parameter’s set value. By depressing this key (after changing
a parameter setting), the set value is entered.
Menu/Value Change Keys
Selects mode, group, function, parameter or set value.
: Increment key
: Decrement key
Digit Selection Key
Selects a digit of a set value to be changed. The selected digit
blinks. Resets operation at faults.
Operation Command Keys
Operation command keys operate the inverter. These are
enabled only in the drive mode.
STOP: Red LED illuminates after depressing STOP key.
RUN: Red LED illuminates after depressing RUN key.
FWD/REV: Selects forward or reverse run.
JOG: Jog run is enabled while depressing this key.
Operation Mode Selection Key
Alternate between REMOTE and LOCAL (digital operator)
operation.
