40 VG5 Installation & Quick-Start Manual
Operation Checkpoints:
· Motor rotates smoothly.
· Motor rotates in the correct direction.
· Motor has no abnormal vibration nor noise.
· Acceleration and deceleration are smooth.
· Unit is not overloaded.
· Status indicator LEDs and digital operator display are correct.
Operation by Digital Operator

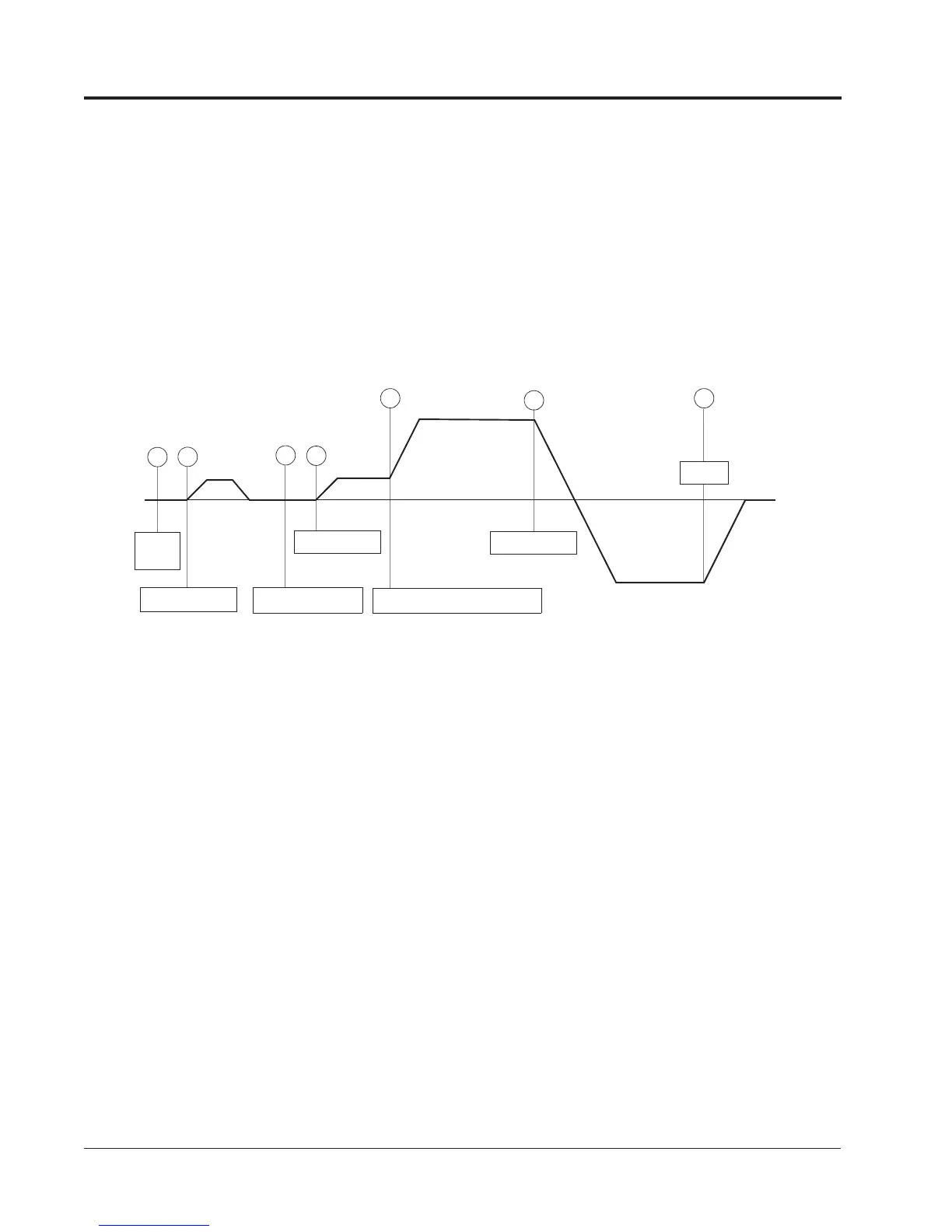

The diagram below shows a typical operation profile using the digital operator.
Figure 15 Operation Sequence by Digital Operator
Reverse
60Hz
Forward
15Hz
Stop
1
3
4
5
6
7
Reverse Run
ON
Power
Frequency Setting
Forward Run
Frequency Reference Change
Forward
60Hz
2
Forward JOG Run
6Hz
Chapter 2 - Operation
Trial Operation
