SH6- HEATER CONTROLLER SERIES
2.2.1 ACCESSIBILITY – SIZE B,C,D and E.

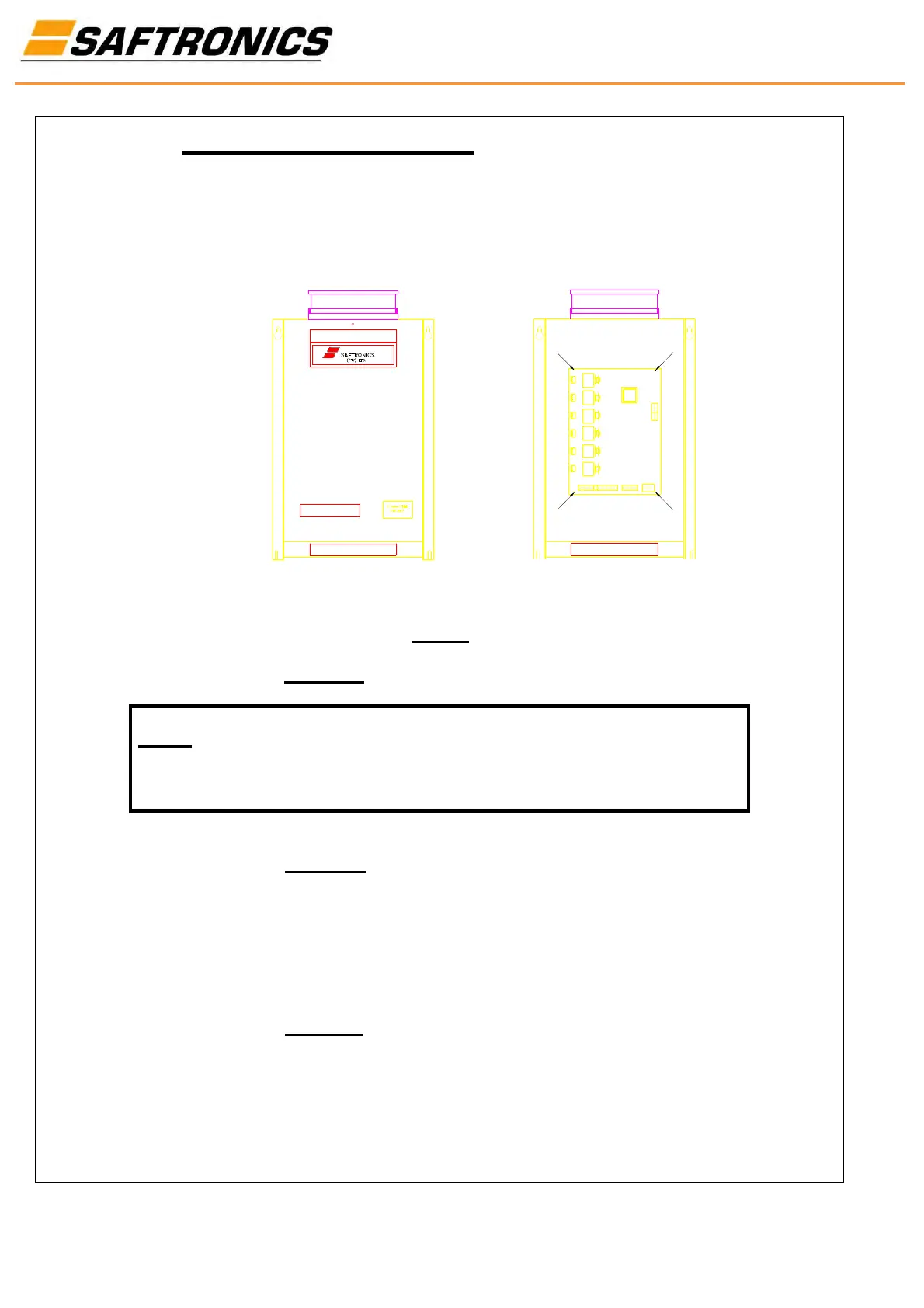

Remove the PC550 Control Card by unscrewing the 4 screws (1) as
indicated in Fig. 2.5.
WAR NING: ISOLATE
BEFORE REMOV ING
COVER.
DO
NOT LIFT
ON
COVER
DANGE R! LIVE BU SBARS
DANGE R! LIVE BU SBARS
FIG 2.5
2.3 COOLING
NOTE: All SH6 specifications are subject to proper cooling! The
following cooling requirements MUST be met to
ensure proper operation and high reliability.
2.3.1 POSITION
All SH6 drives are to be mounted vertically. Any other
rotation will impede the cooling of the drive.
2.3.2 FREE AIR
