Saftronics VG5 Series - Page 111

110 VG5 Installation & Quick-Start Manual
L2
L1
L3 GND
Ground Bonds (Remove any paint)
Power
Line
Filter
Load
Inverter
WL1L2 UVL3
Ground Bonds
(Remove any paint)
IM
Cable Length:
Max. 40cm
Metal Plate
Motor Cable: Max. 20m

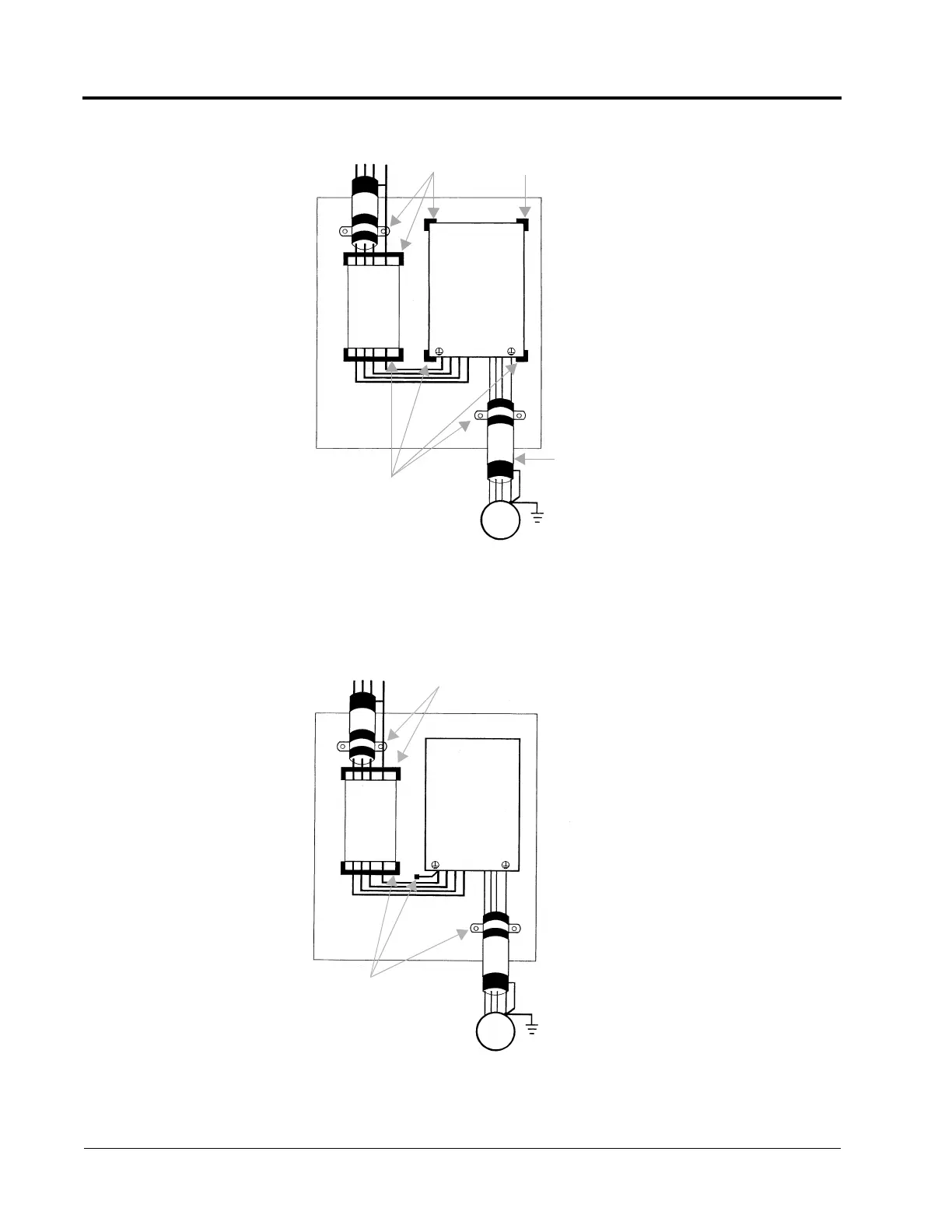

Fig. 27 Installation of Line Filter and Inverter (Models CIMR-VG5U 40P4 to 4015)
Fig. 28 Installation of Line Filter and Inverter (Models CIMR-VG5U 4018 to 4300)
WL1L2 UVL3
Inverter
IM
Power
Line
Load
Filter
Cable Length:
Max. 40cm
Ground Bonds
(Remove any paint)
Metal Plate
Ground Bonds
(Remove any paint)
L3
GND
L2L1
Appendix
CE Conformance Information
