Model F@st™2864 Router User’s Guide Physical Installation
9

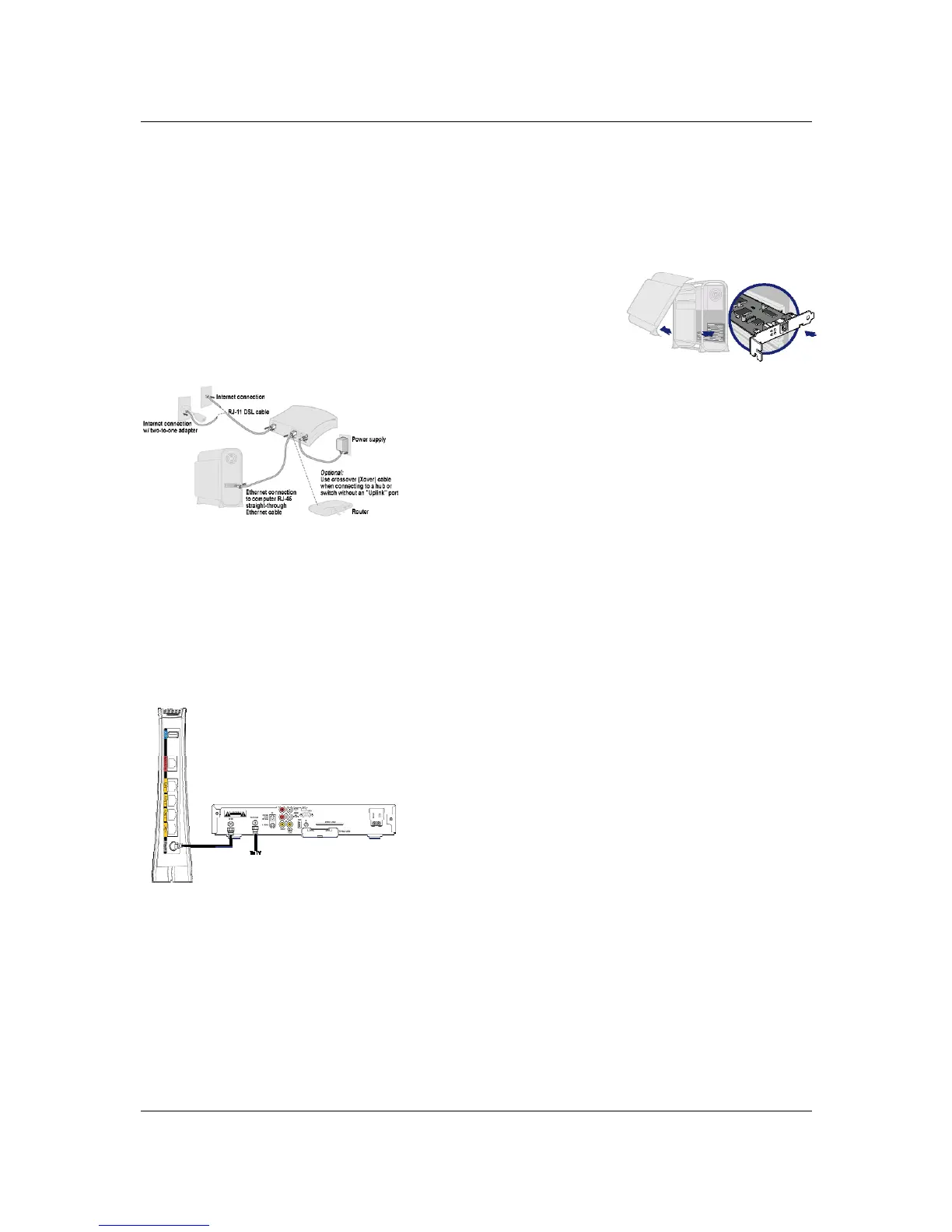

Connecting Cables
The Router provides multiple LAN Ethernet ports to connect to your computer(s). Follow the step-by-step
instructions below for installation.
Ethernet Installation
To connect the Sagemcom Router via the Ethernet interface, your
computer must have an Ethernet adapter (also called a network interface
card, or “NIC”) installed.
If your computer does not have this adapter, install it before proceeding
further. Refer to your Ethernet adapter documentation for complete
installation instructions.
Connect the Ethernet cable(s)
1) With your computer powered off, connect the Ethernet
cable to an Ethernet port (1-4) on the Router.
2) Connect the other end of the Ethernet cable to the
Ethernet port on your computer.
Connect the DSL cable
1) For DSL ISP service, connect the DSL cable (resembles a telephone cord) to the DSL port on the
Router.
2) Plug the other end of the DSL cable into the phone jack.
Coax Installation
Connect the HPNA coax cable
1) With your set top box (STB) powered off, connect the
coax cable to the coax connector on the Router.
2) Connect the other end of the coax cable to the coax
connector on your STB.
Connect the power
1) Connect the power adapter to the bottom of the Router.
2) Plug the power adapter into the electrical wall outlet.
3) Power on all connected computers, STB, and other attached devices.
