SAGEMCOM Fast 2864 User Manual

Model F@st™2864 Router User’s Guide Physical Installation
4
Chapter 2
Chapter 2Chapter 2
Chapter 2
Physical
Physical Physical
Physical Installation
InstallationInstallation
Installation
This chapter covers the physical installation of the Sagemcom Router.
Minimum System Requirements
• DSL or FTTH service and an Internet access account from an Internet Service Provider (ISP).
• Network cables for the device you intend to connect to the Router. Use standard CAT5E Ethernet
cables with RJ45 connectors.
• TCP/IP network protocol must be installed on all computers.
Note: Your configuration may vary slightly from the instructions and illustrations in this chapter. Refer to
your service provider’s documentation, or contact them with questions regarding your specific
configuration.
Router Construction
Connectors

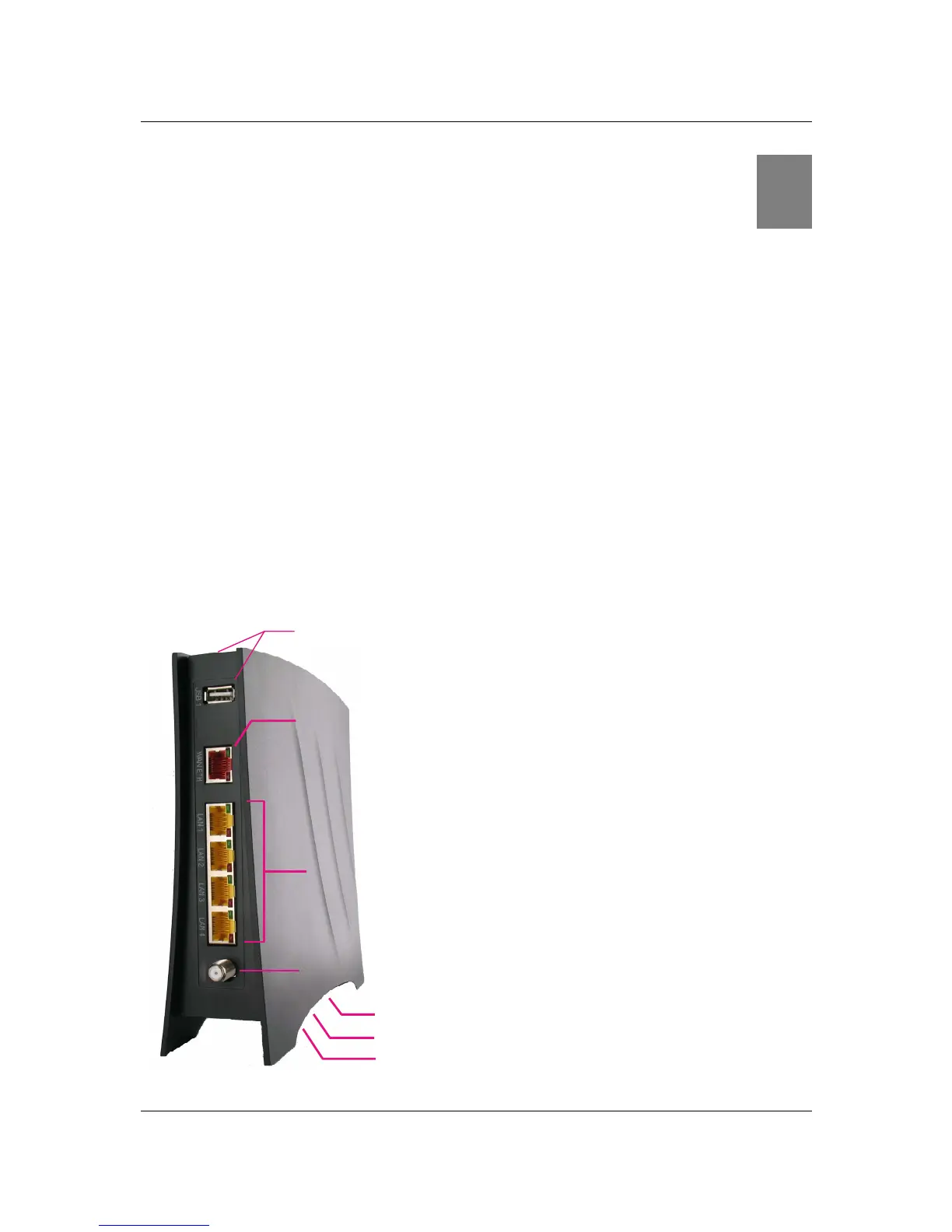

The following figures show the F@st™2864 connectors from different perspectives. Note that the
Ethernet connectors contain yellow (10/100Mbps) and green (1000Mbps) LEDs.
xDSL WAN port
US
B2.0 ports (2)
Gigabit LAN Ethernet
ports (4)
Power port
Gigabit Ethernet WAN port
H
PNA 3.1
Reset button
2
22
2

SAGEMCOM Fast 2864 Specifications

General

Brand	SAGEMCOM
Model	Fast 2864
Category	Wireless Router
Language	English
