Installation
C4900/01
2 Installation
2.1 Mounting Possibilities

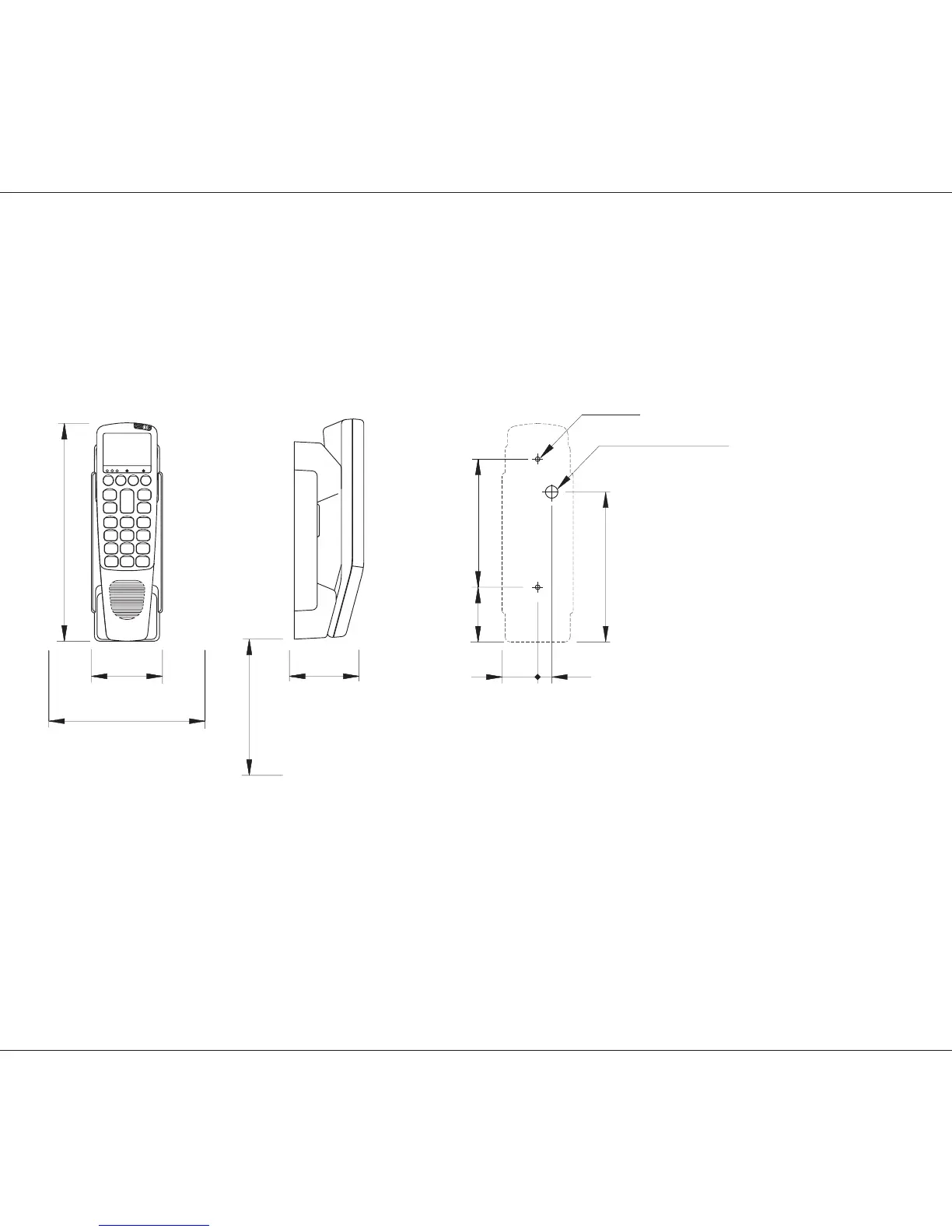

Handset Drilling Plan
4-0-36247
68.5 66.5
209
min. 300
Space for handset access
min. 200
Space for cable and
handset cable
CALLTX US1W ALARM
4-0-35556
34
12352.5
2 x ø4.5
ø12 for cable entry
144
13.5
Weight:
Handset 0.5 kg
2.2 Power Supply
The handset unit is supplied from the SPARC-bus interface with +12V-DC.
The +12V-DC supply is fused in the handset by a 630 mA fuse.
9915
