Sailor C4900 User Manual

5
Installation
C4900/01
2.3.3 Connection of Transceiver / Indoor and Weatherproof Handset

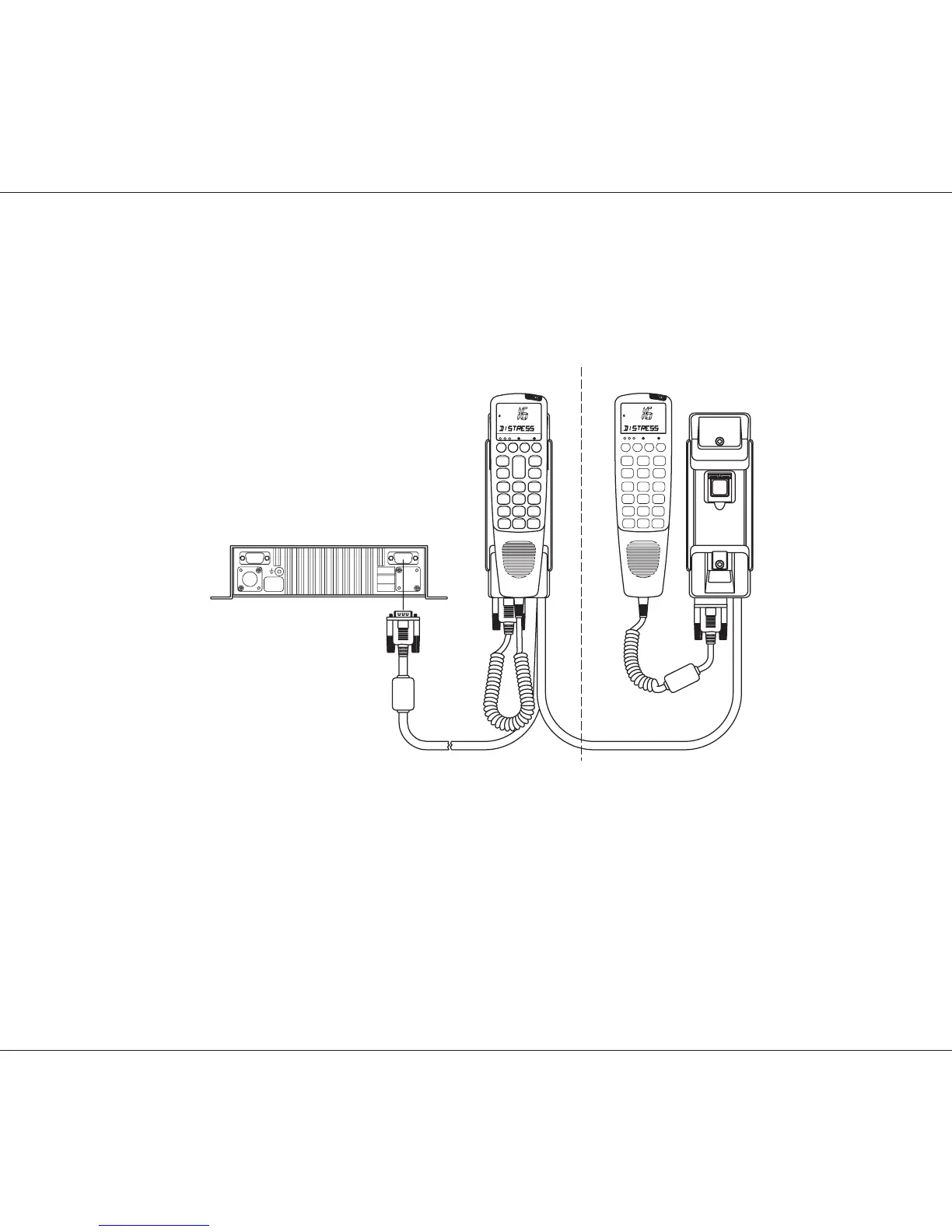

If the existing handset hook is the one shown in the drawing below, your weatherproof handset is to be connected as
follows.
37391
Transceiver
56.114
Indoor Outdoor
WP
X1
supplied by the factory
10m cable
US 1W TX ALARM CALL
TX 1W US CALL ALARM
WARNING:
Do not connect the spiral cable for the intelligent handset directly to the transceiver. The spiral cable for the intelligent
handset must be connected to the handset hook; otherwise the transceiver may activate distress.
0025
