Installation
C4900/01

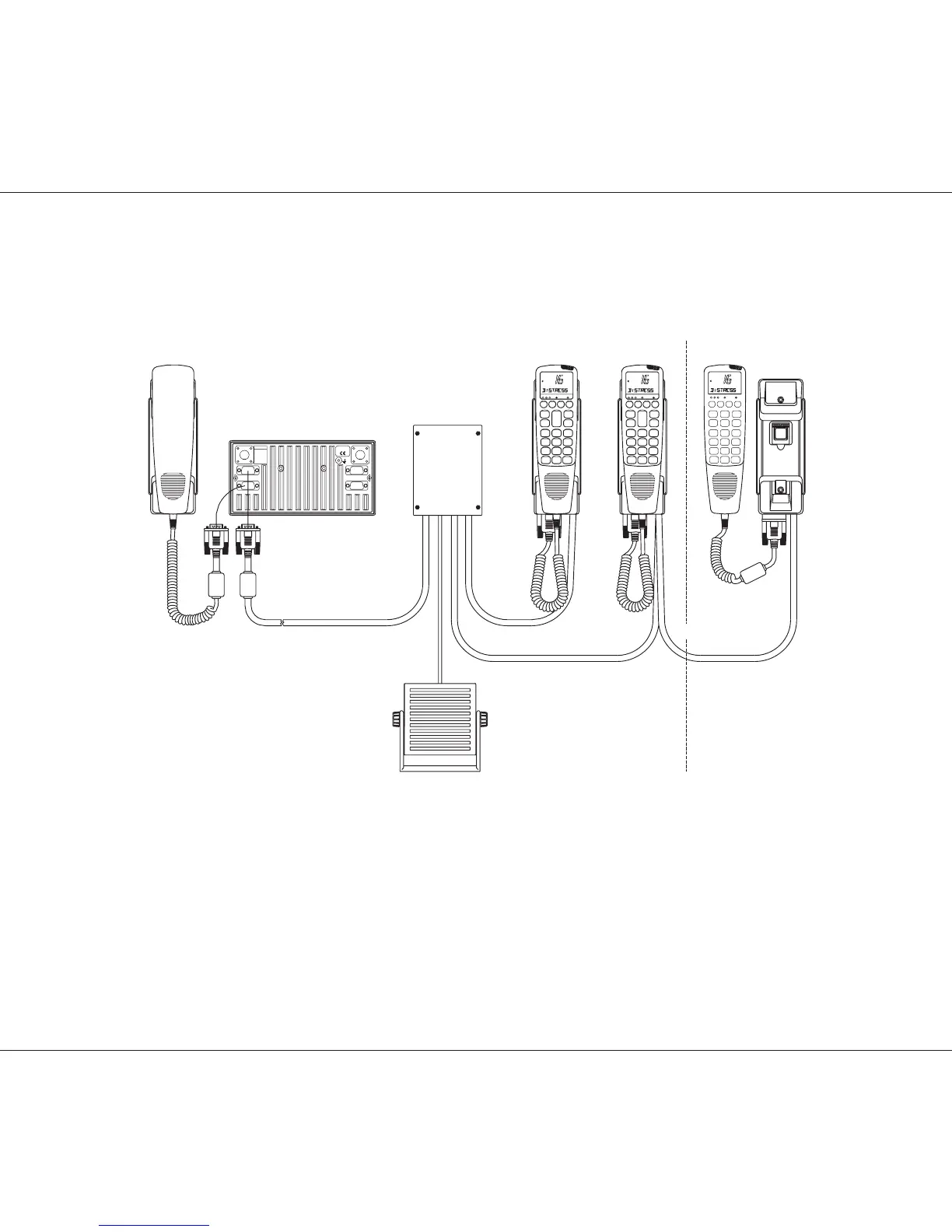

2.4.2 Connection of Transceiver / Connectionbox H4991 /
Indoor and Weatherproof Handset
37395
H4991
Transceiver
56.111
Indoor
Outdoor
WP
L=1.2m
10m cable supplied
by the factory
HANDSET
SPARC-BUS
12V DC
OPTION
PRINTER
Tx
/
Rx
US
1W
TX
CALL
ALARM
US
TX
1W
CALL
ALARM
TX
1W
US
ALARM
CALL
WARNING:
Do not connect the spiral cable for the intelligent handset directly to the transceiver. The spiral cable for the intelligent
handset must be connected to the handset hook; otherwise the transceiver may activate distress.
