KEY PART NAME PART # KEY PART NAME PART #
1 Presser Foot Lift Lever W042
2 Presser Foot Lift Lever Hinge
Screw W042-3
3 Lift Bar W026
4 Upper Lift Bar Screw W042-2
5 Spacer W042-1
6 Lift Bar Guide Screw W026-1
7 Presser Bar Track W018
8 Presser Bar Track Hinge Screw W018-1
9 Rear Presser Bar Bracket W020
10 Set Screw A029
11 Presser Bar Track Guide Screw W018-2
12 Presser Bar Track Feed Stud W018-3
13 Presser Bar Load Spring (Rear) W019-1
14 Rear Presser Bar W019
15 Outside Presser Foot Bracket W017
16 Screw B010
17 Knurled Outside Presser Foot 120183
18 Presser Bar Actuator W024
19 Presser Bar Actuator
Feed Screw W020-1
20 End Plate W041
21 End Plate Set Screw W041-1
22 Presser Foot Bracket Limiter W014
23 Screw C097
24 Presser Bar Feed Rod W036
25 Presser Bar Actuator Spacer W024-1
26 Bearing Bracket Bushing W021
27 Lift Crank Rod Bearing Plate W023
28 Rocker End Set Ring W052
29 Presser Bar Actuator Rocker W033
30 Presser Bar Actuator
Feed Rocker W034
31 Crank Rod Rocker W035
32 Crank Rod W053
33 Set Screw 103640
34 Screw A036 or 100576
35 Presser Bar Actuator Rocker
Screw 103272
36 Guide Screw W046-2
37 Lock Spacer W046-3
38 Washer W046-4
39 Lock Nut A061-B
40 Presser Bar Actuator Pivot Screw 103257
41 Presser Foot Lift Lever Stop Nut 103267
42 Crank Rod Bearing Set Base W025
43 Crank Rod Bearing Set Base
Screw W025-1
39
27
27
42
43
43
26
28
31
10
37
36
35
37
33
29
38
39
33
32
33
38
16
15
17
34
14
12
30
10
11
20
34
41
21
7
13
10
9
24
22
23
8
18
19
25
40
6
3
5
1
2
4
10

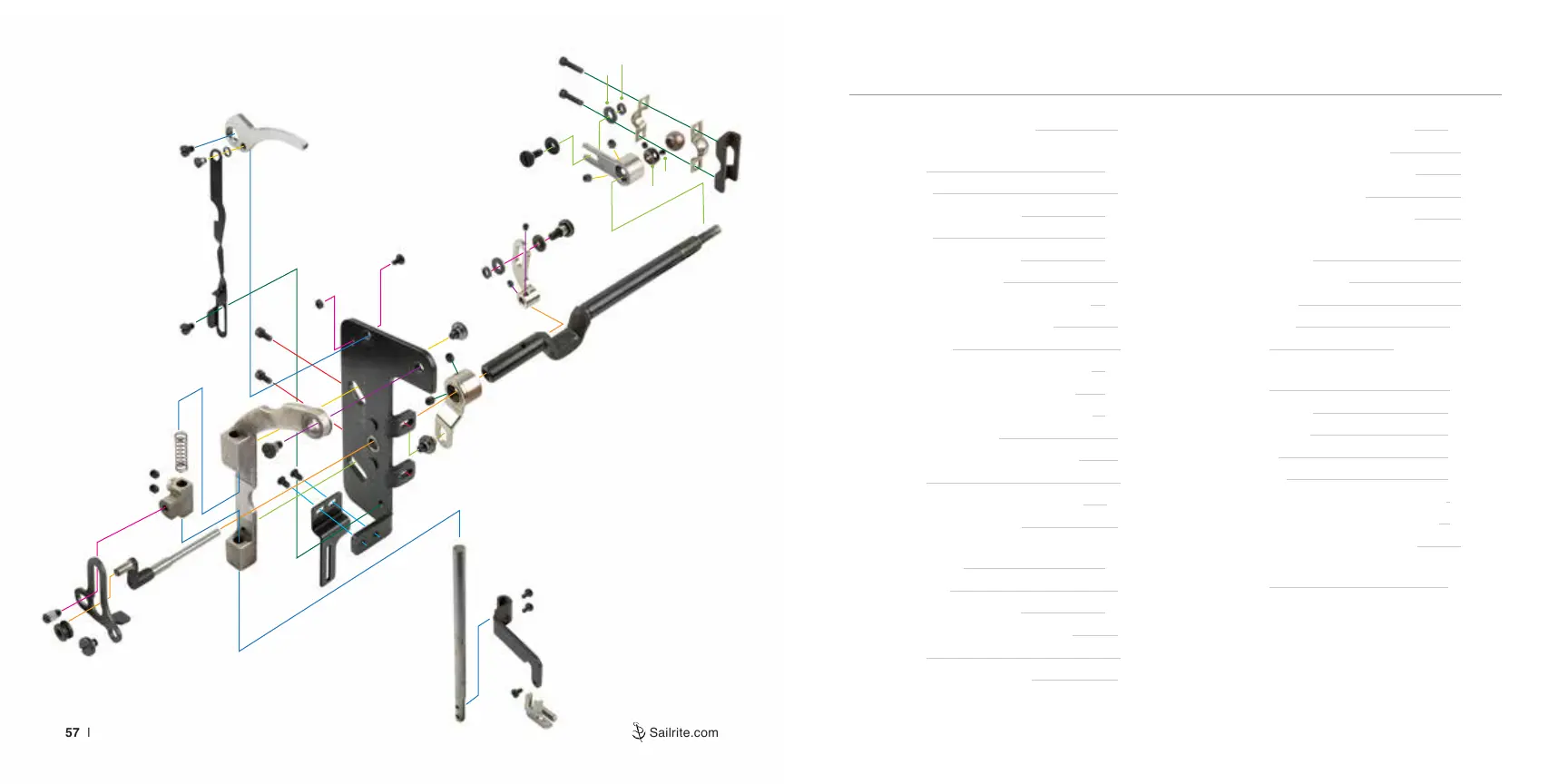

GROUP 5: Driving & Reversing Mechanism Group
