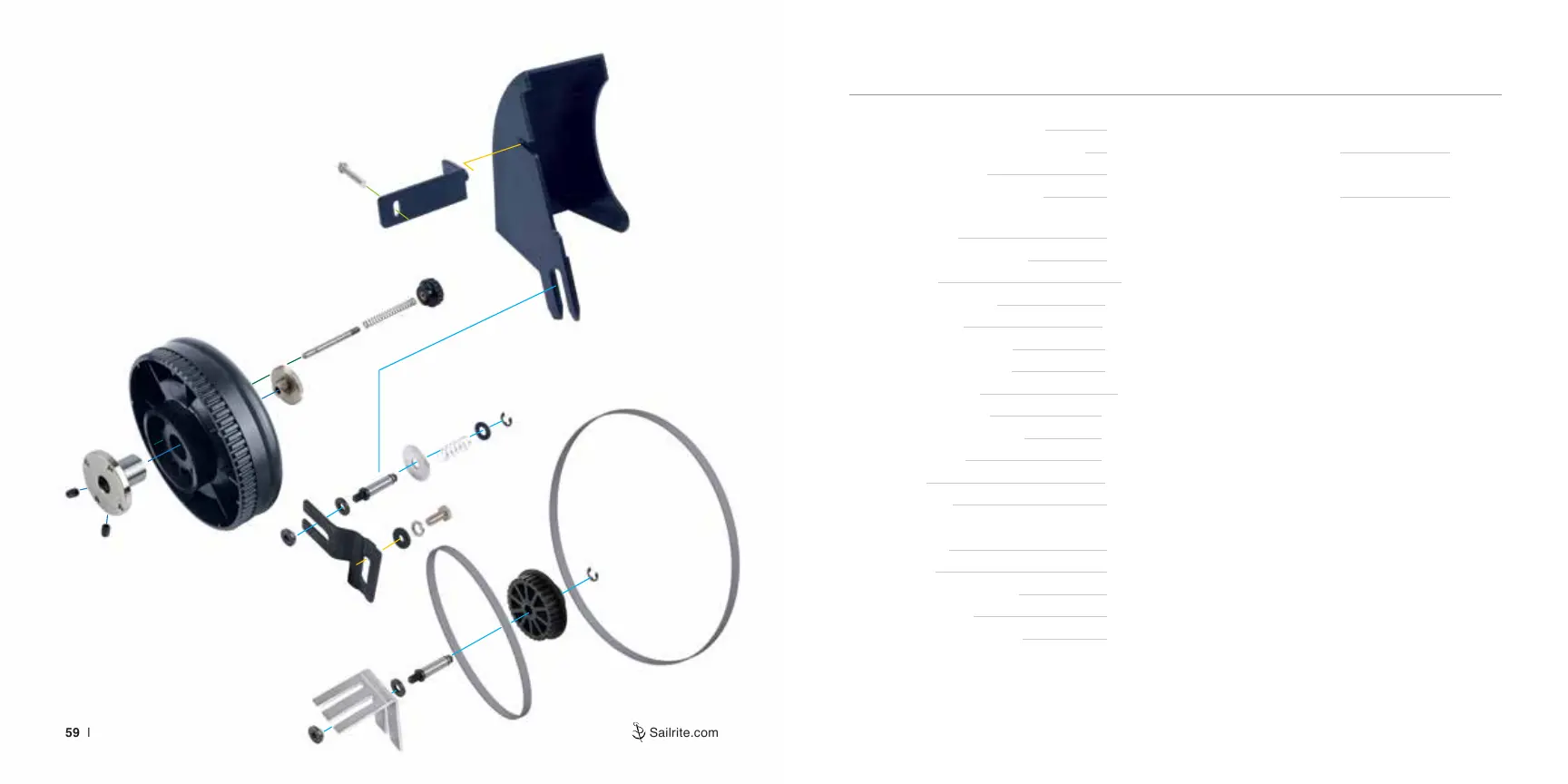

GROUP 6: Dynamic Transmission
16
22
22
1
3
5
2
6
4
17
17
18
19 20
21
11
11
12 10
10
8
8
9
23
24
7
7
15
14
13
KEY PART NAME PART # KEY PART NAME PART #
1 Posi-Pin
®
Knob for Shaft 100540
2 Posi-Pin Nut - Reverse Thread 100536
3 Posi-Pin Spring 100539
4 Posi-Pin Wheel Bushing 100537
5 Posi-Pin Quick Release
Shaft3/16" 100538
6 Power Plus
®
Flywheel 100181
7 E5 Ring D116
8 Idler Pulley Shaft W061-1
9 Idler Pulley W061-A
10 Idler Pulley Washer W061-6
11 Idler Pulley Set Nut W061-2
12 Pulley Bracket W059
13 Bracket Washer LT-2M-4
14 Bracket Lock Washer LT-2M-3
15 Bracket Bolt LT-2M-2
16 Screw W049-1
17 Set Screw 713100
18 Idler Pulley Leatherwork
L-Bracket 121448
19 Washer 121444
20 Compression Spring 121443
21 Fiber Washer 121445
22 Belt Cover & Bracket 120930
23 Cogged Sewing Machine
 TimingBelt15.8" 121447
24 Cogged Sewing Machine
 TimingBelt30.6" 121446
