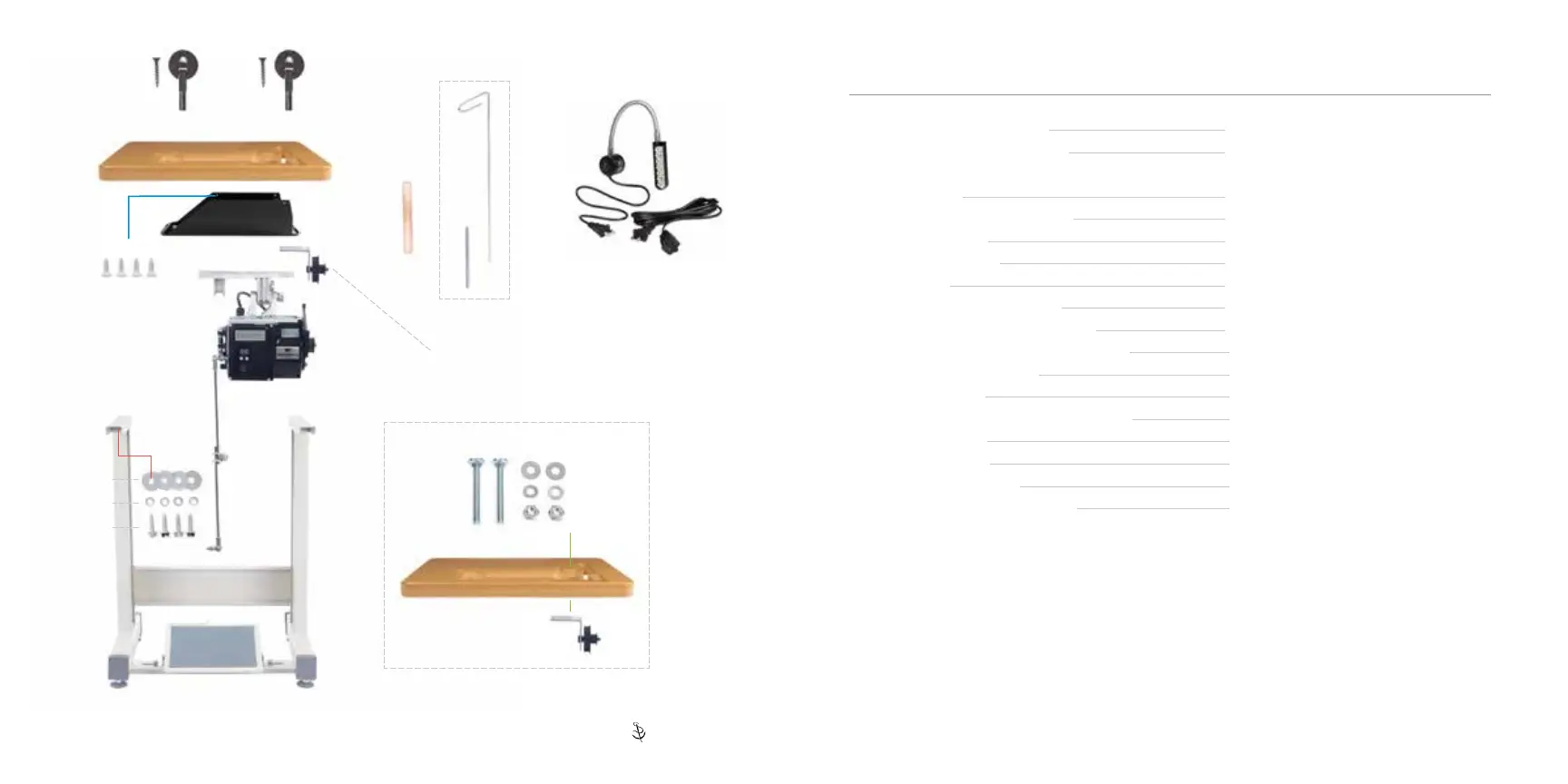

KEY PART NAME PART #
1 Legs for Leatherwork 121455
2 Workhorse
®
Servo Motor 120260 (110V)
or 120261 (220-240V)
3 Oil Tray 120864
4 Tabletop for Leatherwork 121454
5 Support Pin 120866
6 Thread Stand 18303
7 Hinge 432100
8 Flat Head Wood Screw 103528
9 Flat Head Screw for Oil Tray 120462
10 SheetMetalScrewSlotted#14x1" 100845
11 Spring Lock Washer 100844
12 Flat Washer 100842
13 SquareNeckCarriageBolt1/4"x2" 122533
14 Washer1/4" 122535
15 HexNut1/4" 122534
16 Flex20 LED Light 121767
17 Extension Cord for Flex20 121815 (110V)
or 121816 (220-240V)
1
2
Idler Pulley
See p� 59
5
6
16
17
7
9
10
11
12
13
14
12
15
7
Not to Scale
Not to Scale
Not to Scale
Not to Scale
8 8
3
4
Not to Scale
