SAJ B2-5.0-HV1 User Manual

B2 Series Battery
17
18

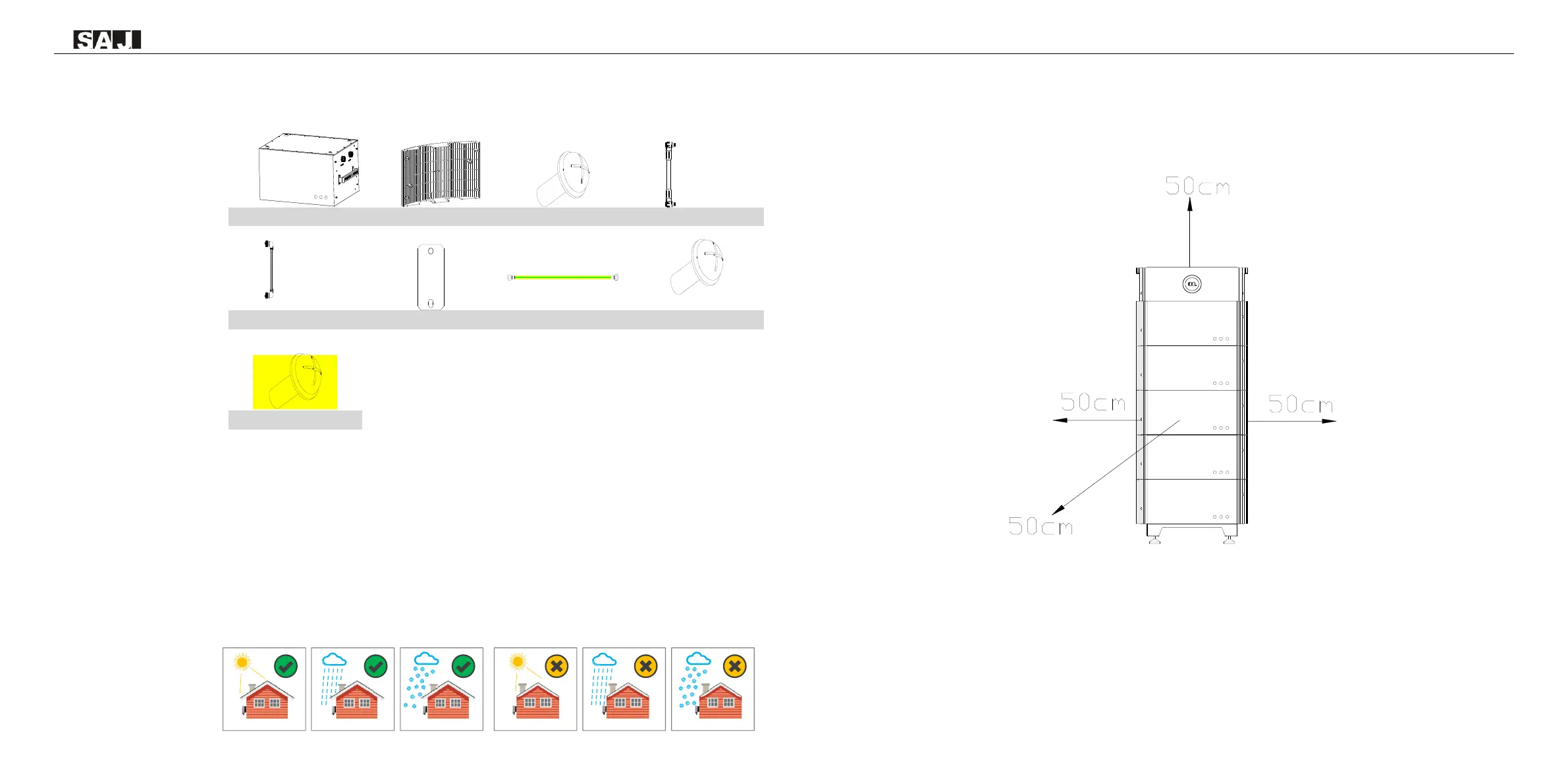

Battery Module Package
Battery module
Side cover*2
M4*25 screw*4
Power cable
COMM cable
Locking bracket*2
Additional grounding cable
M4*10 screw*4
M4*10 screw*1
4.2 Installation Method and Position
4.2.1 Installation Position and Clearance
This device is cooled by natural convention and suggested an indoor installation or an installation under a
sheltered place to prevent the battery from exposure to direct sunlight, rain and snow erosion.
Figure 4.1
Installation location
Please reserve enough clearance around the battery to ensure a good air circulation at the installation area.
Because poor air ventilation will affect the working performance of internal electronic components and shorten
the service life of the system.
Figure 4.2
Installation clearance
Keep away from sunlight Keep dry Keep it clear of snow Sun Rain
Accmulated snow
