5.5 Communication Interface
Note: 1) The communication cable is one end crimped, this crimped end is for battery side connection. The
other end is for inverter side connection. Customer should crimp the other end of communication
cable by themselves.
2) The pinout of RJ45 is detailed in Table 5.1 below.
3) Confirm that the DC switch is OFF during installation to avoid short circuit caused by wrong operation
during battery wiring.
4) Please use the battery cable in original package.

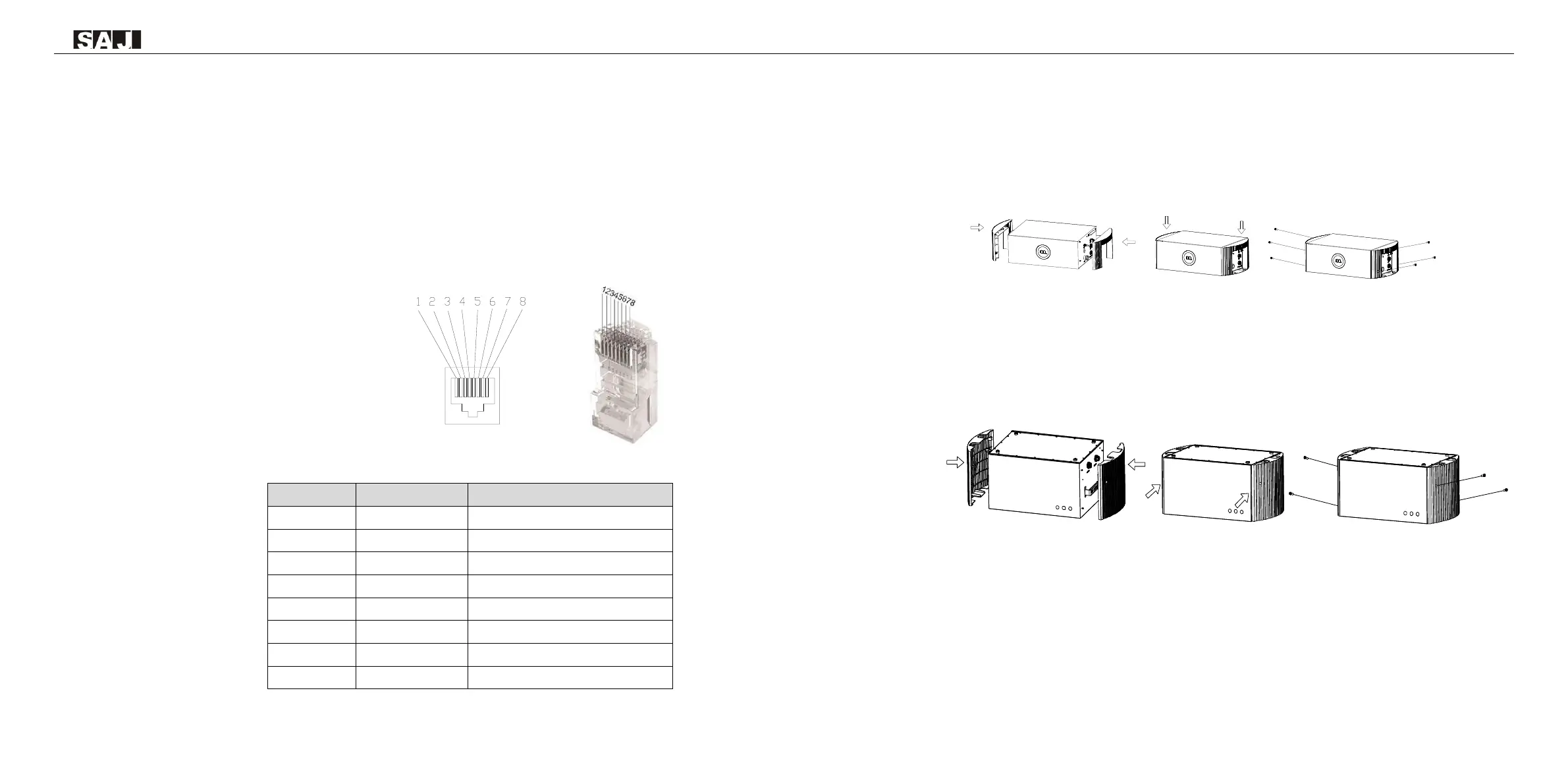

Figure 5.6
Pinout of RJ45
Table 5.1
Pinout of RJ45
Description
5.6 Installation of Side Covers
Install the side covers for battery control unit and battery module and secure it with screws (M4*25).
Figure 5.7
Installing side covers for
battery control unit
Figure 5.8
Installing side covers for
battery module
To Next Page
