6.2 Introduction of Human-computer Interface
System commissioning
After the wiring is completed, please refer to the inverter manual for system commission and operation.
Note: Turn on the circuit breaker and main switch when using the B2 battery.

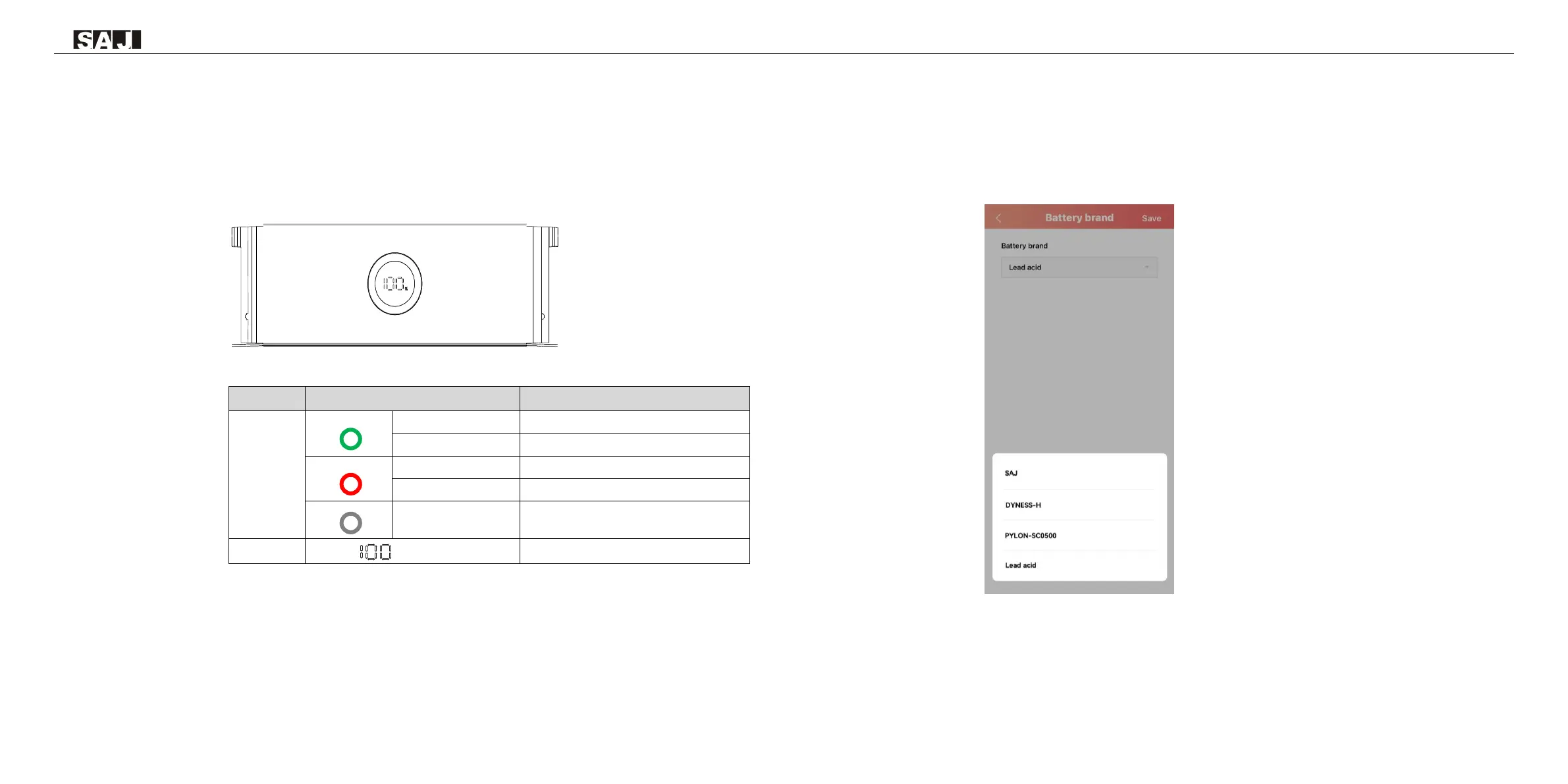

Figure 6.3
Human-computer interface
Display
Status
Description
Ring Light
Solid Green
The battery is in normal state
Breathing Mode
The battery is in the initialization or waiting state
Solid Red
An error occurs
Breathing Mode
Software is upgrading in the battery
OFF
Power off
LED Panel 1
SOC of the battery
Note: One breathing cycle is 6 seconds
Table 6.1
Interface description
6.3 Commissioning
Please refer to inverter manual for eSolar APP download and system commissioning. Please select SAJ for
battery brand.
Figure 6.4
Selecting the battery brand interface
%
