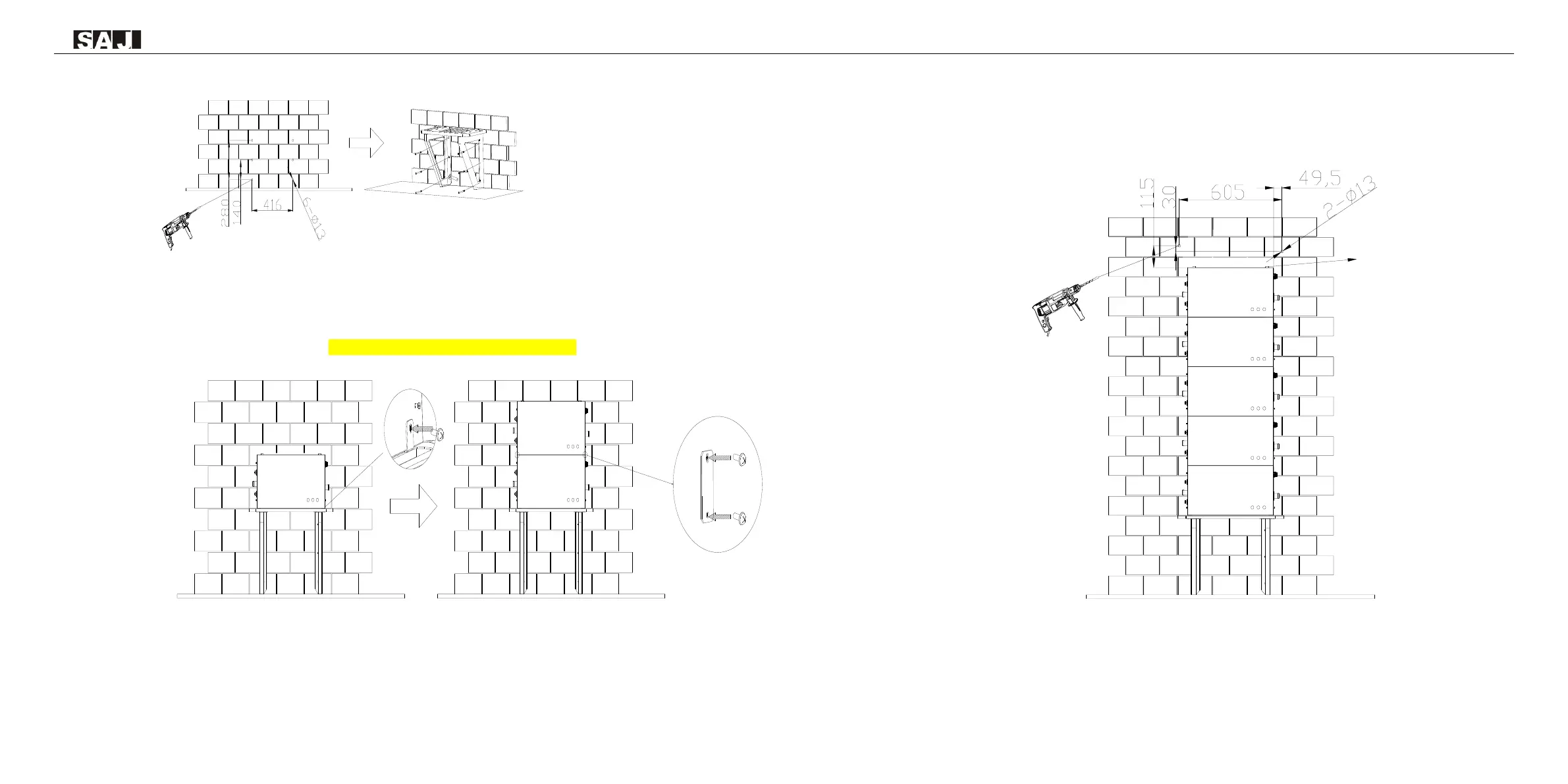

Figure 4.10
Drill holes’ dimensions of
bracket
Step 3: Install the battery module on the bracket, make sure the battery module position fits with the position
of rubber feet on bracket, and use a screw(M4*10) to secure it with locking brackets.
Figure 4.11
Install the locking bracket
Step 4: After the battery modules installation, mark the proper positions of mounting bracket and drill holes
(13mm in diameter, 65mm in depth) on those positions by using the mounting bracket as a template. Remove
the rubber feet for the top battery module before installing battery control unit.
Figure 4.12
Drilling holes for installation of
battery control unit
